SD 10

code switch, SMD version

• pitch: 2.54mm
• can be assembled by any automatic IC inserter
• switching capacity: 25mA/24V DC
• contact resistance, max. new state: 50mΩ
• contact resistance, max. after operating life test: 100mΩ
• dielectric strength, min.: 500V DC/1min.
• capacity of adjacent switch, max.: 5pF
• type: SMD IC
• low profile actuator
• bottom epoxy sealed against flux immersion
• transmission current: 100mA/50V DC
• insulation resistance (100V DC), min.: 1000MΩ
• spacing between rows: 11.2mm
• insulation shell: UL94V-0, black
• contact finish: gold over nickel
• operating temperature: -25...+70°C
• operating force, max.: 800g
• switching capacity: 2000 operations
• air humidity: 95% RH, 40°C/96h
• vibration test: MIL-STD-202F, method 204D
• by ECE

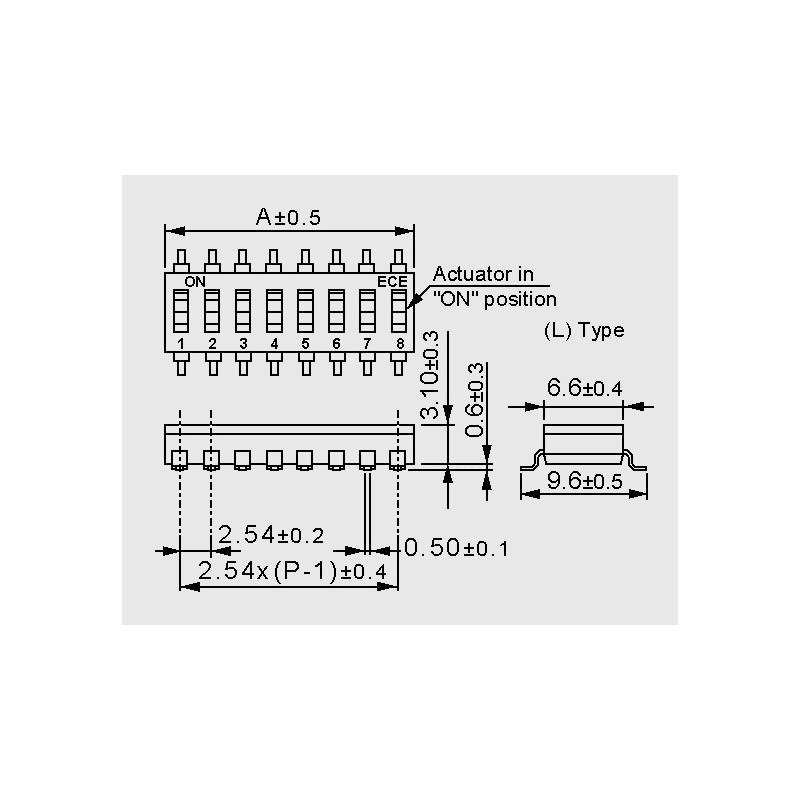

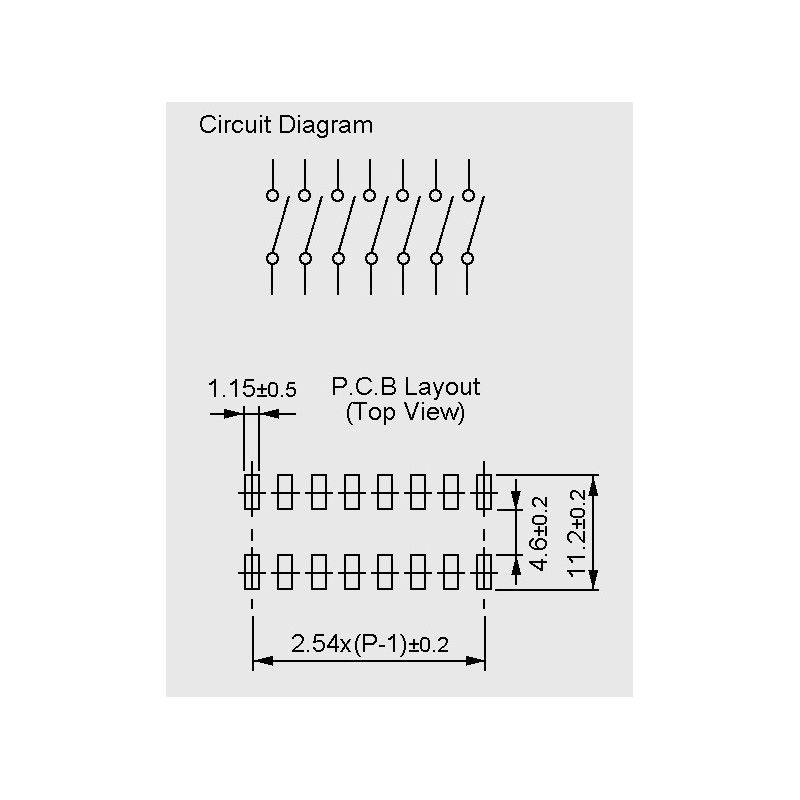

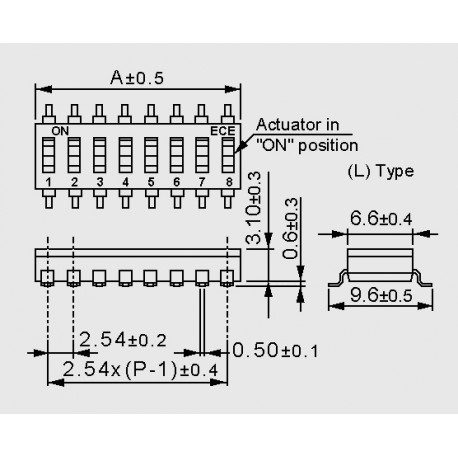

dimensions ESD_LDZ

SD 10

13318 SD 10 ESD 110 LDZ ESD 110 LDZ code switch, SMD version. • pitch: 2.54mm• can be assembled by any automatic IC inserter• switching capacity: 25mA/24V DC• contact resistance, max. new state: 50mΩ• contact resistance, max. after operating life test: 100mΩ• dielectric strength, min.: 500V DC/1min.• capacity of adjacent switch, max.: 5pF• type: SMD IC• low profile actuator• bottom epoxy sealed against flux immersion• transmission current: 100mA/50V DC• insulation resistance (100V DC), min.: 1000MΩ• spacing between rows: 11.2mm• insulation shell: UL94V-0, black• contact finish: gold over nickel• operating temperature: -25...+70°C• operating force, max.: 800g• switching capacity: 2000 operations• air humidity: 95% RH, 40°C/96h• vibration test: MIL-STD-202F, method 204D• by ECE
