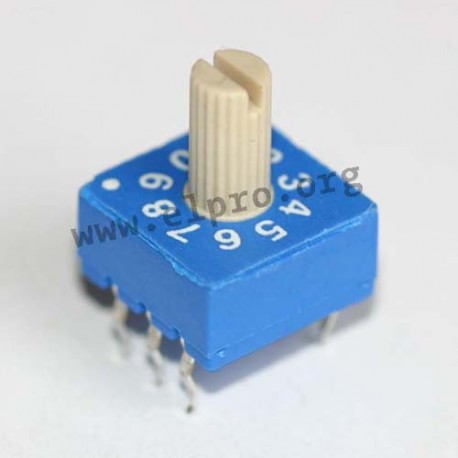

KMR 10

rotary switch

• sealed terminals
• flux sealed version
• insulation material UL94V-0 approved
• 10 and 16 switching points
• binary and hexadecimal coding
• switching capacity, max.: 25mA/24V DC
• transmission current, max.: 100mA/50V DC
• contact resistance, max.: 100mΩ
• insulation resistance (100V DC), min.: 1000MΩ
• dielectric strength, min.: 250V AC/1min.
• mechanical life, min.: 2000 steps/position
• insulation material: glass filled PBT,
• cntact finish: Cu alloy, gold over nickel
• solder pin: Cu alloy, tin-plated over nickel
• operating temperature: -25...+70°C
• operating force, max.: 500gf/cm
• stand time: 2x104 without load
• vibration test: MIL-STD-202F, Method 204D

KMR 10

KMR 10

13229 KMR 10 ERD-210-RSZ ERD-210-RSZ rotary switch. • sealed terminals• flux sealed version• insulation material UL94V-0 approved• 10 and 16 switching points• binary and hexadecimal coding• switching capacity, max.: 25mA/24V DC• transmission current, max.: 100mA/50V DC• contact resistance, max.: 100mΩ• insulation resistance (100V DC), min.: 1000MΩ• dielectric strength, min.: 250V AC/1min.• mechanical life, min.: 2000 steps/position• insulation material: glass filled PBT,• cntact finish: Cu alloy, gold over nickel• solder pin: Cu alloy, tin-plated over nickel• operating temperature: -25...+70°C• operating force, max.: 500gf/cm• stand time: 2x104 without load• vibration test: MIL-STD-202F, Method 204D

Specifications

manufacturer
Manufacturer's name ERD-210-RSZ

Unit price

2,19 €

Stock: 0
Next incoming goods:
CW 02/2025
175 units

Further delivery:
CW 14/2025

Minimum order quantity 5 units or
multiples of 5.
