EV-16 3113

microswitches with actuation by plunger, lever, roller

• various actuators
• long operating life due to high precision mechanism design
• 4.8mm flat cable plug
• 16A current
• switching capacity: 16A, 250V AC/0.6A, 125V DC
• contact resistance, max.: 50mΩ
• isolation resistance (500V DC), min.: 100MΩ
• dielectric strength, min.: 1000V AC
• operating temperature: -25...+80°C
• operating force, max.: 3.92N
• operating life
mechanical: 50x106 switches
electrical: 10x104 switches
• air humidity: 85% RH
• vibration test (10...55Hz): 1.5mm amplitude

actuators:
• EV-16 3113: lever, short

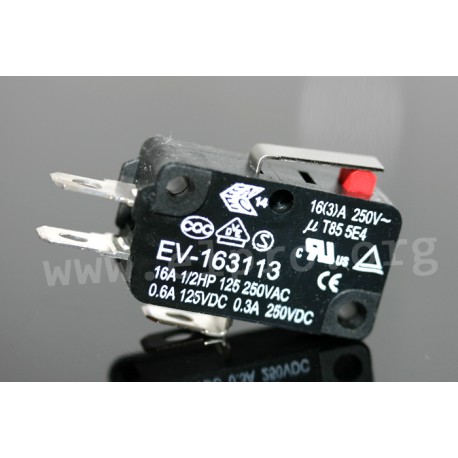

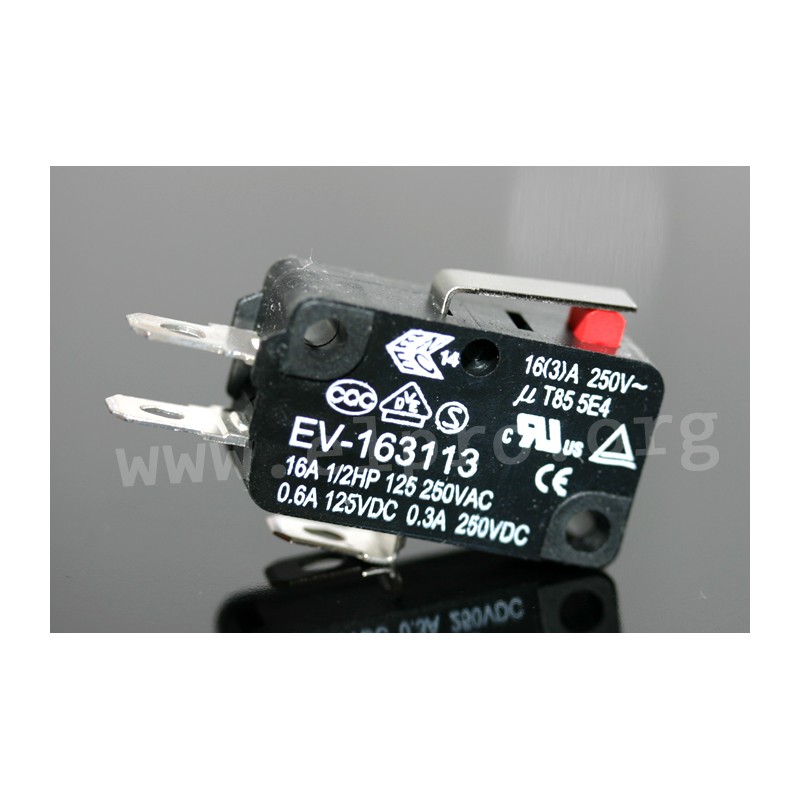

EV-16 3113

EV-16 3113

29449 EV-16 3113 EV163113 EV163113 microswitches with actuation by plunger, lever, roller. • various actuators• long operating life due to high precision mechanism design• 4.8mm flat cable plug• 16A current• switching capacity: 16A, 250V AC/0.6A, 125V DC• contact resistance, max.: 50mΩ• isolation resistance (500V DC), min.: 100MΩ• dielectric strength, min.: 1000V AC• operating temperature: -25...+80°C• operating force, max.: 3.92N• operating lifemechanical: 50x106 switcheselectrical: 10x104 switches• air humidity: 85% RH• vibration test (10...55Hz): 1.5mm amplitudeactuators:• EV-16 3113: lever, short

Specifications

manufacturer
Manufacturer's name EV163113
Operating force [N] 3,92
Data Sheet

Unit price

0,721 €

Stock: 1679
Further delivery:
CW 20/2025

Minimum order quantity 10 units or
multiples of 10.
