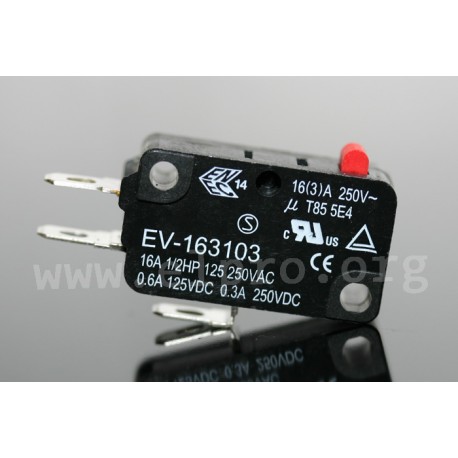

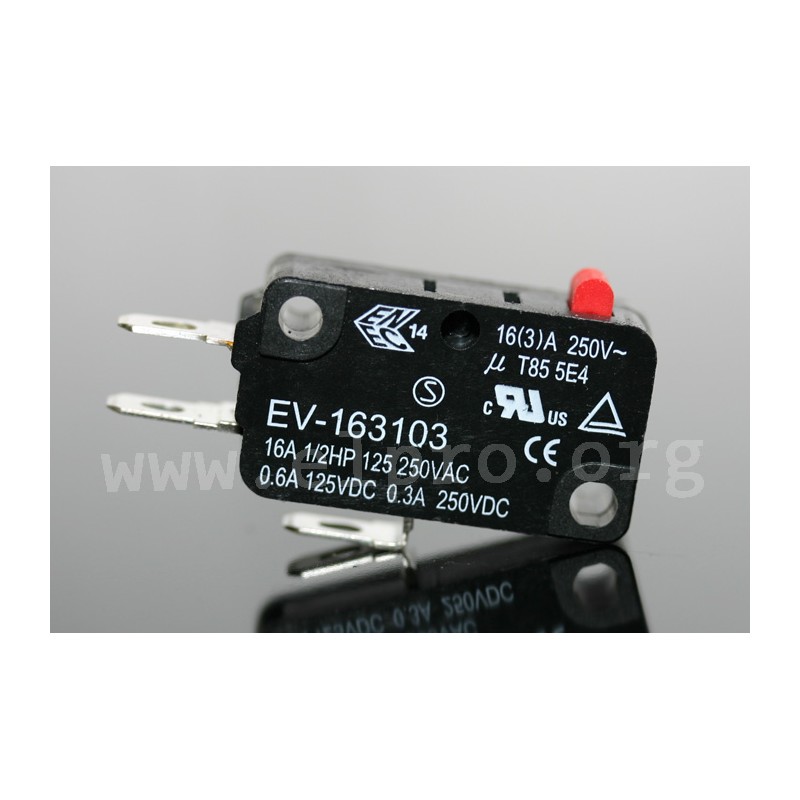

EV-16 3103

microswitches with actuation by plunger, lever, roller

• various actuators
• long operating life due to high precision mechanism design
• 4.8mm flat cable plug
• 16A current
• switching capacity: 16A, 250V AC/0.6A, 125V DC
• contact resistance, max.: 50mΩ
• isolation resistance (500V DC), min.: 100MΩ
• dielectric strength, min.: 1000V AC
• operating temperature: -25...+80°C
• operating force, max.: 3.92N
• operating life
mechanical: 50x106 switches
electrical: 10x104 switches
• air humidity: 85% RH
• vibration test (10...55Hz): 1.5mm amplitude

actuators:
• EV-16 3103: plunger

EV-16 3103

EV-16 3103

29447 EV-16 3103 EV163103 EV163103 microswitches with actuation by plunger, lever, roller. • various actuators• long operating life due to high precision mechanism design• 4.8mm flat cable plug• 16A current• switching capacity: 16A, 250V AC/0.6A, 125V DC• contact resistance, max.: 50mΩ• isolation resistance (500V DC), min.: 100MΩ• dielectric strength, min.: 1000V AC• operating temperature: -25...+80°C• operating force, max.: 3.92N• operating lifemechanical: 50x106 switcheselectrical: 10x104 switches• air humidity: 85% RH• vibration test (10...55Hz): 1.5mm amplitudeactuators:• EV-16 3103: plunger

Specifications

manufacturer
Manufacturer's name EV163103
Operating force [N] 3,92
Data Sheet

Unit price

0,69 €

Stock: 311
Next incoming goods:
CW 02/2025
100 units

Further delivery:
CW 15/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
