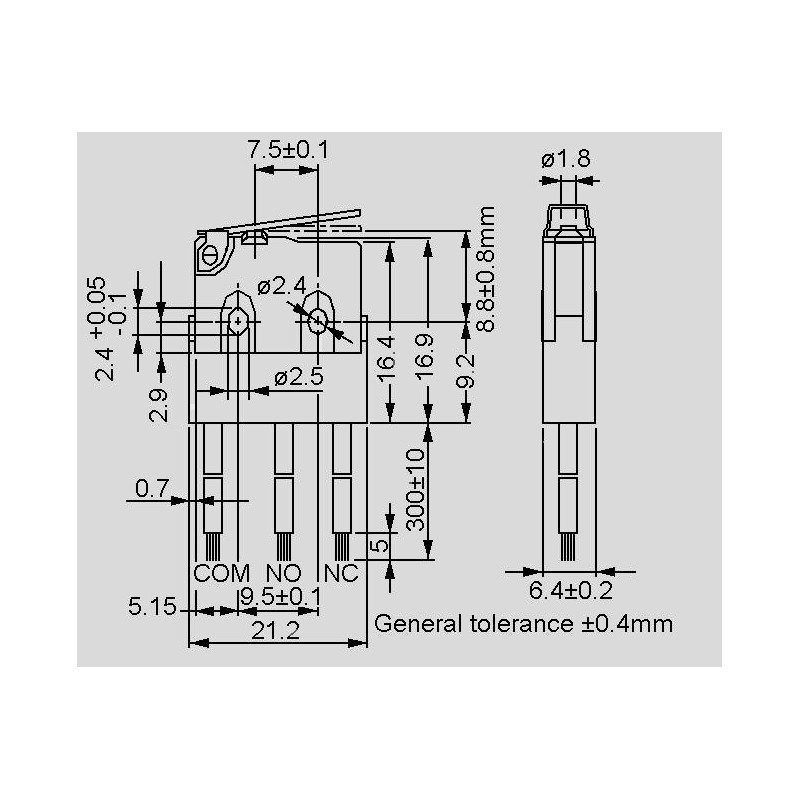

ESW-57A11A1
* long operating live due to an incorporated snapping mechanism made with two highly precise split springs
* faston plug terminals 2.8mm
* switching capacity: 3A, 250V AC/5A, 125V AC
* contact resistance, max.: 30mΩ
* insulation resistance (500V DC), min.: 100MΩ
* dielectric strength, min.: 1000V AC
* no. of contacts: 1 SPDT
* operating temperature: -25...+85°C
* operating life
mechanical: 30x106 switches
electrical: 20x104 switches
* air humidity, max.: 85% RH
* vibration test (10...55Hz): 1.5mm amplitude
microswitches with actuation by plunger, lever, roller
* micro switches with different actuators* long operating live due to an incorporated snapping mechanism made with two highly precise split springs
* faston plug terminals 2.8mm
* switching capacity: 3A, 250V AC/5A, 125V AC
* contact resistance, max.: 30mΩ
* insulation resistance (500V DC), min.: 100MΩ
* dielectric strength, min.: 1000V AC
* no. of contacts: 1 SPDT
* operating temperature: -25...+85°C
* operating life
mechanical: 30x106 switches
electrical: 20x104 switches
* air humidity, max.: 85% RH
* vibration test (10...55Hz): 1.5mm amplitude
ESW-57A11A1
Specifications
| manufacturer | ECE |
| Manufacturer's name | ESW-57A11A1 |
| Switching current [A] | 3 |
| Operating force [N] | 0,59 |
