ESS-0513310

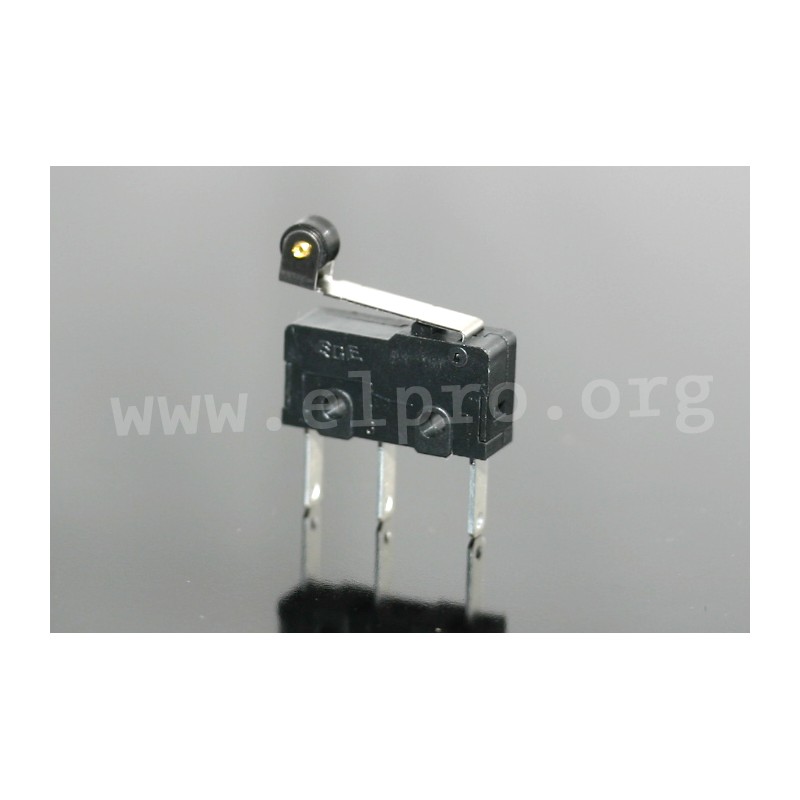

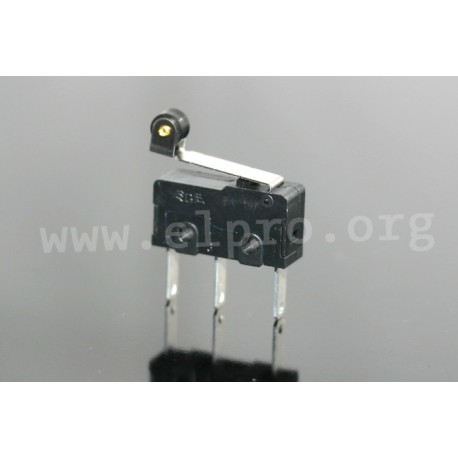

microswitches with actuation by plunger, lever, roller

* micro switches with different actuators
* long operating live due to an incorporated snapping mechanism made with two highly precise split springs
* faston plug terminals 2.8mm
* switching capacity: 3A, 250V AC/5A, 125V AC
* contact resistance, max.: 30mΩ
* insulation resistance (500V DC), min.: 100MΩ
* dielectric strength, min.: 1000V AC
* no. of contacts: 1 SPDT
* operating temperature: -25...+85°C
* operating life
mechanical: 30x106 switches
electrical: 20x104 switches
* air humidity, max.: 85% RH
* vibration test (10...55Hz): 1.5mm amplitude
ESS-0513310

ESS-0513310

34912 ESS-0513310 ESS0513310 ESS0513310 microswitches with actuation by plunger, lever, roller. * micro switches with different actuators* long operating live due to an incorporated snapping mechanism made with two highly precise split springs* faston plug terminals 2.8mm* switching capacity: 3A, 250V AC/5A, 125V AC* contact resistance, max.: 30mΩ* insulation resistance (500V DC), min.: 100MΩ* dielectric strength, min.: 1000V AC* no. of contacts: 1 SPDT* operating temperature: -25...+85°C* operating lifemechanical: 30x106 switcheselectrical: 20x104 switches* air humidity, max.: 85% RH* vibration test (10...55Hz): 1.5mm amplitude

Specifications

manufacturer
Manufacturer's name ESS0513310
Switching current [A] 3
Operating force [N] 0,49
Data Sheet

Unit price

0,546 €

Stock: 563
Next incoming goods:
CW 10/2025
165 units

Further delivery:
CW 20/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
