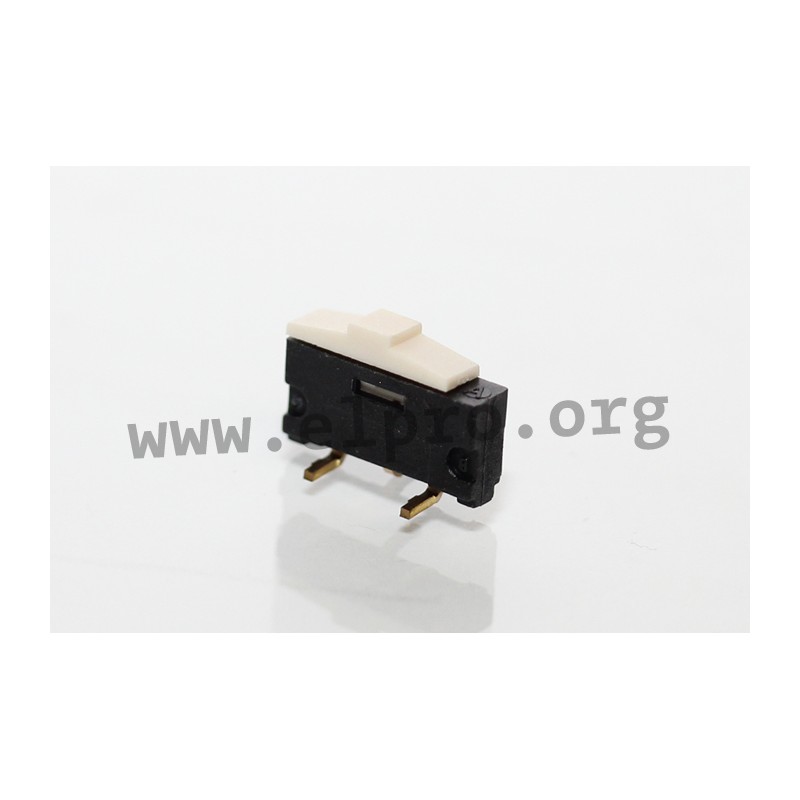

ESP3020

SMD slide switches ESP30/40 by ECE

• pitch 2.54mm
• all plastic parts flame-resistant in accordance with UL94V-0
• reflow soldering
• by ECE
• switching capacity: 0,5A, 12V DC/1mA, 10mV, Min.
• contact resistance, max.: 30mΩ
• dielectric strength: 2mA, 500V DC/1min.
• capacitance, max.: 1,5pF
• insulation resistance (500V DC): 10000MΩ/1min.
• operations: 10000
• operating temperature: -25...+70°C
• soldering temperature: 240°C/20s
• soldering temperature, max.: 260°C
• vibration test: normal operation 10...60Hz, 1.5mm movement
• corrosion test (salt solution): 35°C, 5%/24h
ESP3020

ESP3020

39600 ESP3020 ESP3020 SMD slide switches ESP30/40 by ECE. * pitch 2.54mm* all plastic parts flame-resistant in accordance with UL94V-0* reflow soldering* by ECE* switching capacity: 0,5A, 12V DC/1mA, 10mV, Min.* contact resistance, max.: 30mΩ* dielectric strength: 2mA, 500V DC/1min.* capacitance, max.: 1,5pF* insulation resistance (500V DC): 10000MΩ/1min.* operations: 10000* operating temperature: -25...+70°C* soldering temperature: 240°C/20s* soldering temperature, max.: 260°C* vibration test: normal operation 10...60Hz, 1.5mm movement* corrosion test (salt solution): 35°C, 5%/24h

Specifications

manufacturer
Manufacturer's name ESP3020
Switch positions SPDT
Switching current [A] 0,5
Data Sheet

Unit price

0,619 €

Stock: 115
Next incoming goods:
CW 23/2025
318 units

Further delivery:
CW 33/2025

Minimum order quantity 1 to 9 units or multiples of 53 plus 0 to 9 .
