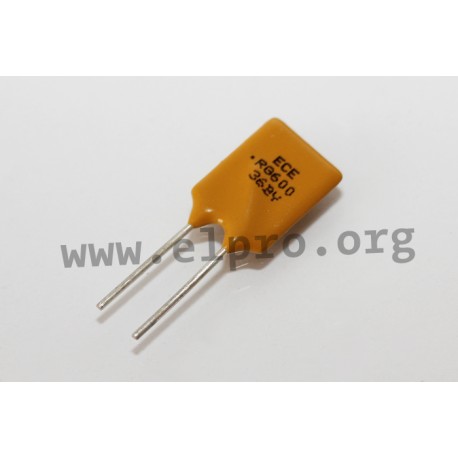

ERF RG 16V 6A

PTC-fuses ERFRG by ECE

• radial
• style: bulk
• rated current: 3 to 9A
• resettable switching device
• low current loss due to a low resistance in normal use
• Protection against overcurrent and short circuit. The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.
• For general electronics up to a maximum voltage of 16 volt, such as audio equipment, automotives electronic, fire alarm and security systems, halogen light, medical and test equipment, wire harness etc.
• insulating material: epoxy polymer (UL94V-0)
• lead wires: Ø 0.81mm, tin-plated copper
• max. operating voltage: 16V
• max. interrupting current: 100A
• temperature range: up -40 to +85°C
• resistance to soldering heat: 260°C/ts

ERF RG by ECE

ERF RG 16V 6A

46348 ERF RG 16V 6A ERFRG6001600Z ERFRG6001600Z PTC-fuses ERFRG by ECE. • radial• style: bulk• rated current: 3 to 9A• resettable switching device• low current loss due to a low resistance in normal use• Protection against overcurrent and short circuit. The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.• For general electronics up to a maximum voltage of 16 volt, such as audio equipment, automotives electronic, fire alarm and security systems, halogen light, medical and test equipment, wire harness etc.• insulating material: epoxy polymer (UL94V-0)• lead wires: Ø 0.81mm, tin-plated copper• max. operating voltage: 16V• max. interrupting current: 100A• temperature range: up -40 to +85°C• resistance to soldering heat: 260°C/ts

Specifications

manufacturer
Manufacturer's name ERFRG6001600Z
1 hour post-trip resistance standard trip [Ω] 0,033
Auslösezeit bei 5xIN [s] 5,8
Typical power [W] 2,8

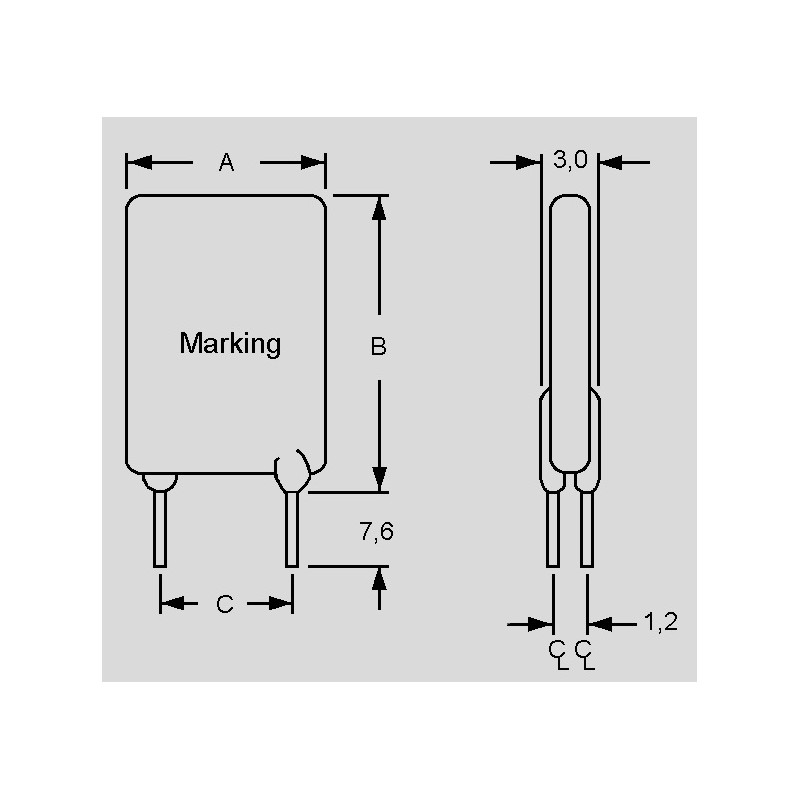

Amax. [mm] 10,7
Cmax. [mm] 5,1
Bmax. [mm] 17,1
Rated current [A] 6
Data Sheet

Unit price

0,219 €

Stock: 600
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
