ERF RA 60V 2,5A

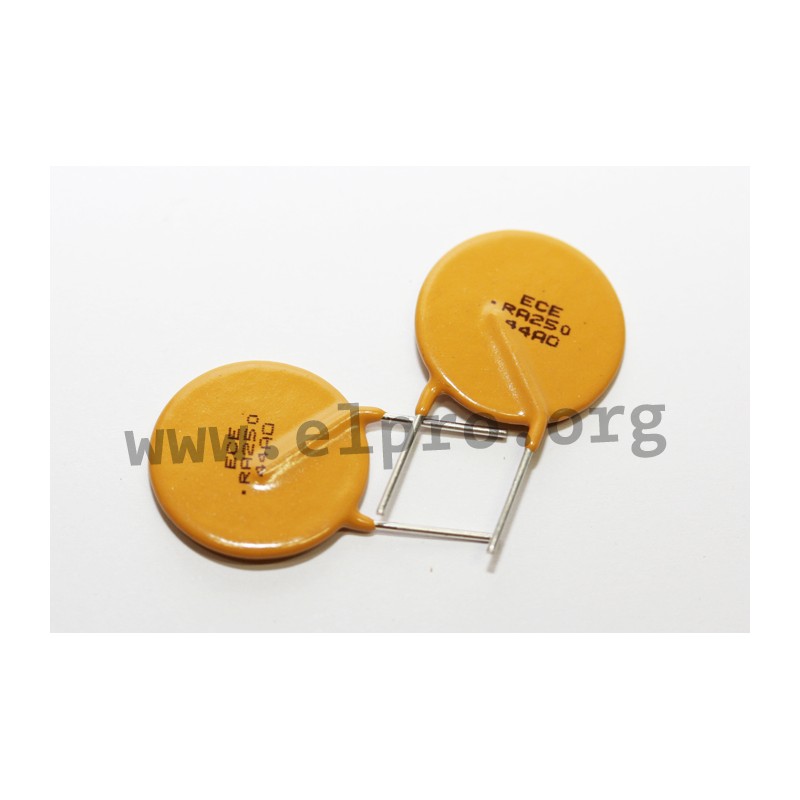

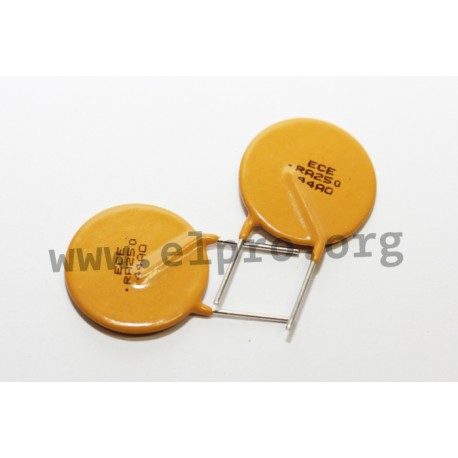

PTC-fuses ERFRA by ECE

• radial
• style: bulk
• rated current: 0.05 to 3.75A
• resettable switching device
• low current loss due to a low resistance in normal use
• protection against overcurrent and short circuit
• The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.
•  Ideal for low voltage power supply with a load to be protected up to a maximum voltage of 60 volt, such ascomputers & peripherals, security and fire alarm systems, loud speakers, automotive applications, power transformers and general electronics.
• insulating material: epoxy polymer (UL94V-0)
• lead wires: tin-plated copper
• up to 0.9A: Ø 0.51mm
• from 1.1A: Ø 0.81mm
• max. operating voltage: 60V
• max. interrupting current: 40A
• temperature range: up -40 to +85°C
• resistance to soldering heat: 260°C/5s
ERF RA 60V 2,5A

ERF RA 60V 2,5A

46329 ERF RA 60V 2,5A ERFRA2506000Z ERFRA2506000Z PTC-fuses ERFRA by ECE. * radial * style: bulk * rated current: 0.05 to 3.75A* resettable switching device* low current loss due to a low resistance in normal use* protection against overcurrent and short circuit* The mode of action is based on the PTC effect. In standard use, the resistance of the device is very low so that only a small power loss arises. In the event of an error, short-circuit or overcurrent, the resistance value of this device increases and protects the equipment. After eliminating the error and switching off the supply voltage, the device quickly returns to a low impedance state.* Ideal for low voltage power supply with a load to be protected up to a maximum voltage of 60 volt, such ascomputers & peripherals, security and fire alarm systems, loud speakers, automotive applications, power transformers and general electronics.* insulating material: epoxy polymer (UL94V-0)* lead wires: tin-plated copper* up to 0.9A: Ø 0.51mm* from 1.1A: Ø 0.81mm* max. operating voltage: 60V* max. interrupting current: 40A* temperature range: up -40 to +85°C* resistance to soldering heat: 260°C/5s

Specifications

manufacturer
Manufacturer's name ERFRA2506000Z
1 hour post-trip resistance standard trip [Ω] 0,13
Auslösezeit bei 5xIN [s] 15,6
Typical power [W] 2,5

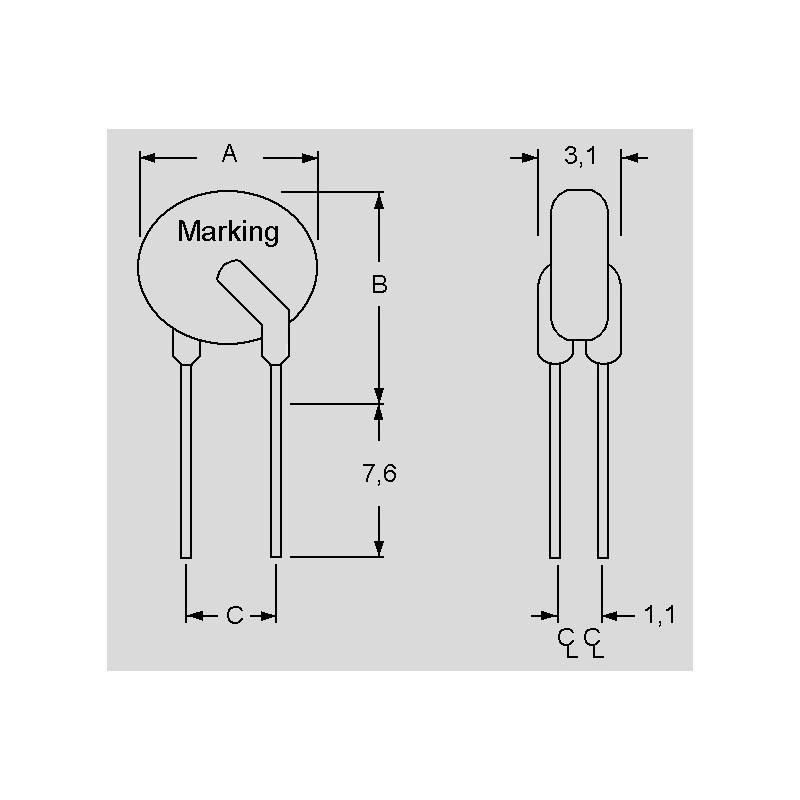

Amax. [mm] 21,3
Cmax. [mm] 10,2
Bmax. [mm] 26,4
Rated current [A] 2,5
Data Sheet

Unit price

0,26 €

Stock: 880
Further delivery:
CW 33/2025

Minimum order quantity 10 units or
multiples of 10.
