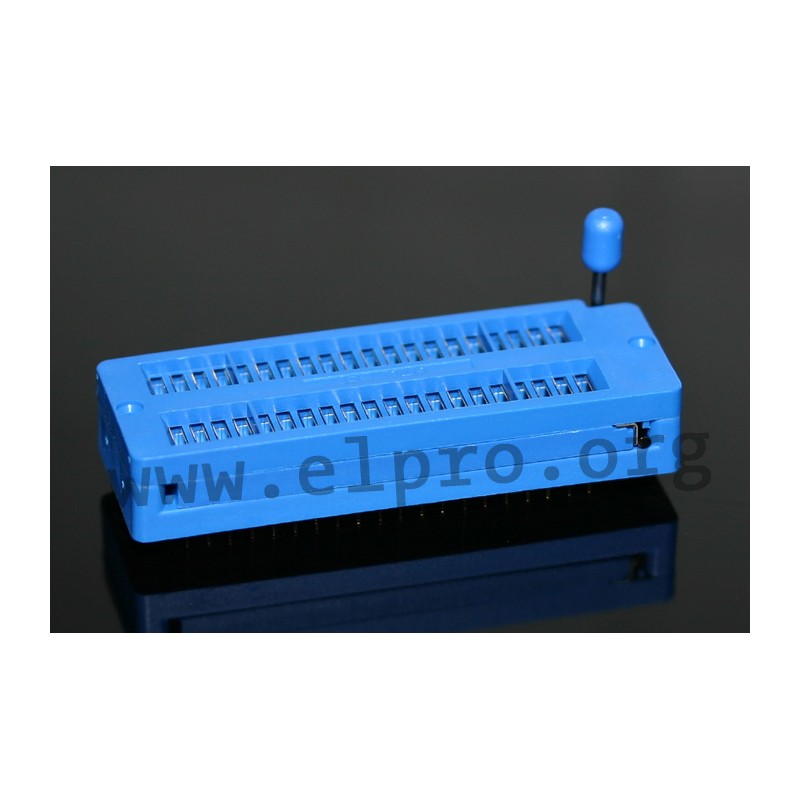

TEX 40

IC sockets

* pitch 2.54mm
* easy to mount in a PC board
* all plastics are UL94V-0 grade fire retardant
* gold-plated contacts to ensure low contact resistance
* contact rating, max.: 50V DC/100mA
* contact resistance, max.
new: 10mW
after service life test: 20mW
* insulation resistance, min.: 100MW
* test voltage, min.: 500V DC/1 Min.
* capacitance between adjacent contacts, max.: 5pF
* operating temperature: -25...+70°C
* service life
cycles without load: 50000
cycles with load: 25000
* humidity: 95% RH/40°C, 96h
* vibration: MIL-STD-202F, method 201A
* solderability: 230±5°C after flux for 5±0,5s
95% coverage
* soldering heat: 260±5°C for 5±1s

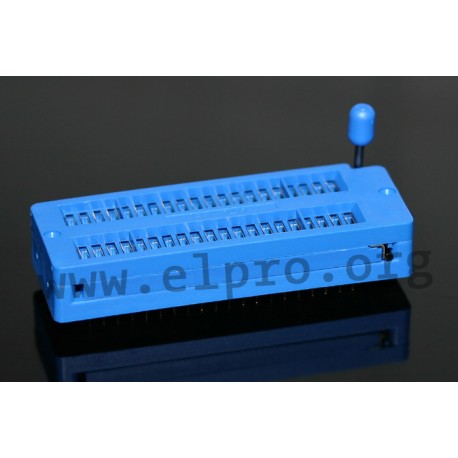

TEX 40

TEX 40

12215 TEX 40 ELK040 ELK040 IC sockets. * pitch 2.54mm* easy to mount in a PC board* all plastics are UL94V-0 grade fire retardant* gold-plated contacts to ensure low contact resistance* contact rating, max.: 50V DC/100mA* contact resistance, max.new: 10mWafter service life test: 20mW* insulation resistance, min.: 100MW* test voltage, min.: 500V DC/1 Min.* capacitance between adjacent contacts, max.: 5pF* operating temperature: -25...+70°C* service lifecycles without load: 50000cycles with load: 25000* humidity: 95% RH/40°C, 96h* vibration: MIL-STD-202F, method 201A* solderability: 230±5°C after flux for 5±0,5s95% coverage* soldering heat: 260±5°C for 5±1s

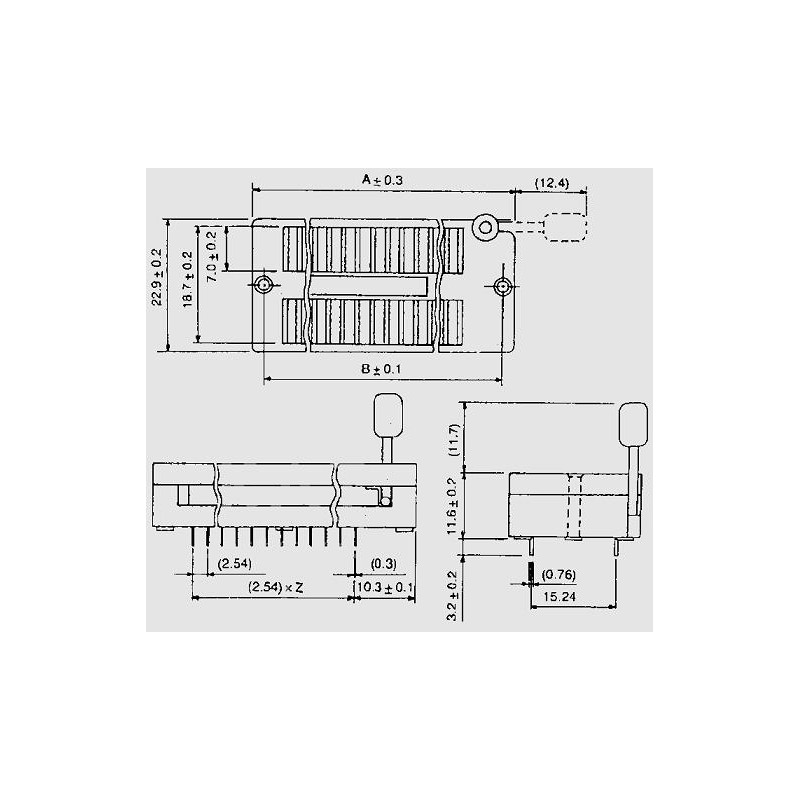

Specifications

manufacturer
Manufacturer's name ELK040
Number of poles 40
A [mm] 65,6
Width [mm] 61,2
C [mm] 22,9
Z [mm] 19
P [mm] 7,62...15,24

Unit price

15,39 €

Stock: 30
Next incoming goods:
CW 09/2025
80 units

Further delivery:
CW 19/2025
