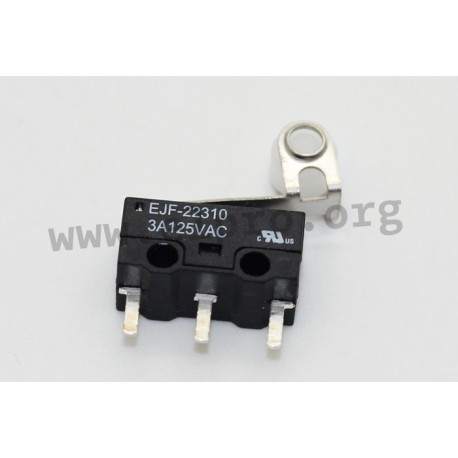

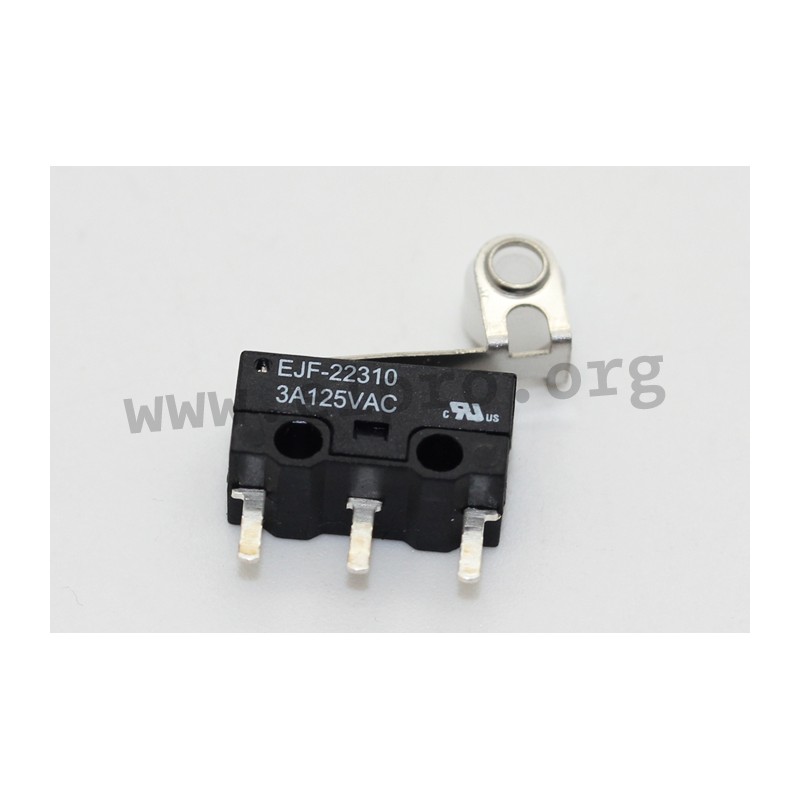

EJF-22310

microswitches with actuation by plunger, lever, roller

• different actuators
• long operating live due to an incorporated snapping mechanism made with two highly precise split springs
• solderterminals 5.08mm grid
• switching capacity: 3A, 125V AC
• contact resistance, max.: 100mΩ
• insulation resistance (500V DC), min.: 100MΩ
• dielectric strength (60s), min.: 1000V AC
• no. of contacts: SPDT
• operating temperature: -25...+65°C
• operating life
mechanical: 10x105 switches
electrical: 30x103 switches
• air humidity, max.: 85% RH
• vibration test (10...55Hz): 1.5mm amplitude

actuators:
• EJF-22310: roller

EJF22310, 0.1A, actuation by plunger, lever, roller

EJF-22310

34917 EJF-22310 EJF22310 EJF22310 microswitches with actuation by plunger, lever, roller. • different actuators• long operating live due to an incorporated snapping mechanism made with two highly precise split springs• solderterminals 5.08mm grid• switching capacity: 3A, 125V AC• contact resistance, max.: 100mΩ• insulation resistance (500V DC), min.: 100MΩ• dielectric strength (60s), min.: 1000V AC• no. of contacts: SPDT• operating temperature: -25...+65°C• operating lifemechanical: 10x105 switcheselectrical: 30x103 switches• air humidity, max.: 85% RH• vibration test (10...55Hz): 1.5mm amplitudeactuators:• EJF-22310: roller

Specifications

manufacturer
Manufacturer's name EJF22310
Switching current [A] 3
Operating force [N] 1,47
Data Sheet

Unit price

0,615 €

Stock: 100
Next incoming goods:
CW 05/2025
140 units

Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
