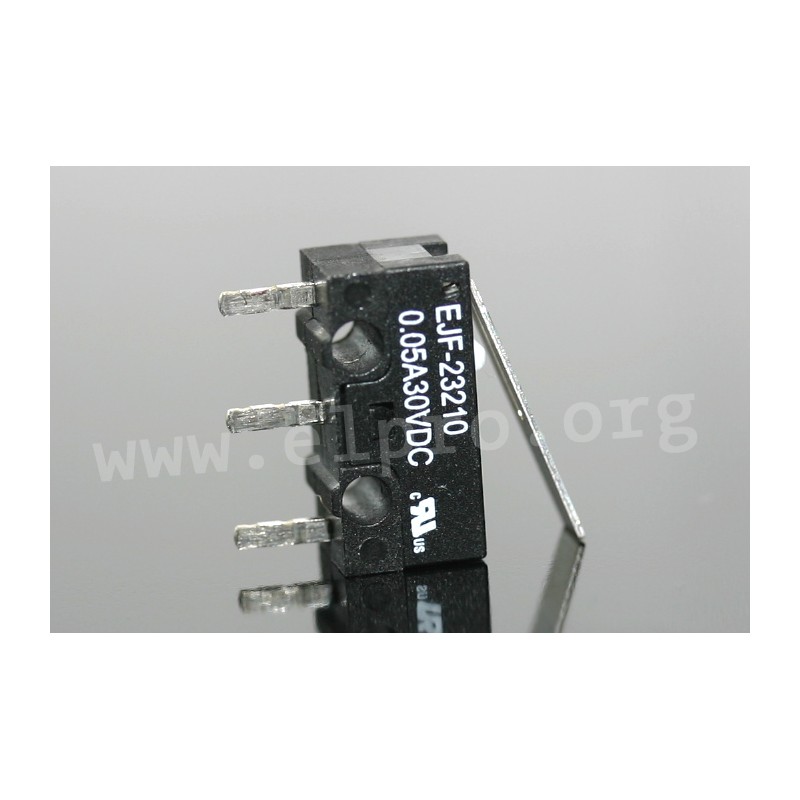

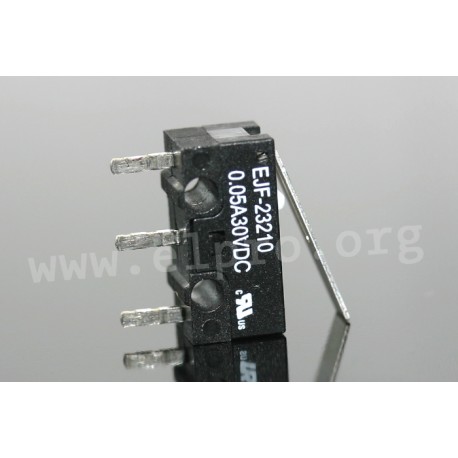

EJF-23210

microswitches with actuation by plunger, lever, roller

• different actuators
• long operating live due to an incorporated snapping mechanism made with two highly precise split springs
• solderterminals 5.08mm grid
• switching capacity: 0.05A, 30V DC
• contact resistance, max.: 100mΩ
• insulation resistance (500V DC), min.: 100MΩ
• dielectric strength (60s), min.: 1000V AC
• no. of contacts: SPDT
• operating temperature: -25...+65°C
• operating life
mechanical: 10x105 switches
electrical: 30x103 switches
• air humidity, max.: 85% RH
• vibration test (10...55Hz): 1.5mm amplitude

actuators:
• EJF-23210: lever

EJF-23210

EJF-23210

34911 EJF-23210 EJF23210 EJF23210 microswitches with actuation by plunger, lever, roller. • different actuators• long operating live due to an incorporated snapping mechanism made with two highly precise split springs• solderterminals 5.08mm grid• switching capacity: 0.05A, 30V DC• contact resistance, max.: 100mΩ• insulation resistance (500V DC), min.: 100MΩ• dielectric strength (60s), min.: 1000V AC• no. of contacts: SPDT• operating temperature: -25...+65°C• operating lifemechanical: 10x105 switcheselectrical: 30x103 switches• air humidity, max.: 85% RH• vibration test (10...55Hz): 1.5mm amplitudeactuators:• EJF-23210: lever

Specifications

manufacturer
Manufacturer's name EJF23210
Switching current [A] 0,1
Operating force [N] 1,47
Data Sheet

Unit price

0,605 €

Stock: 88
Next incoming goods:
CW 05/2025
200 units

Further delivery:
CW 18/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
