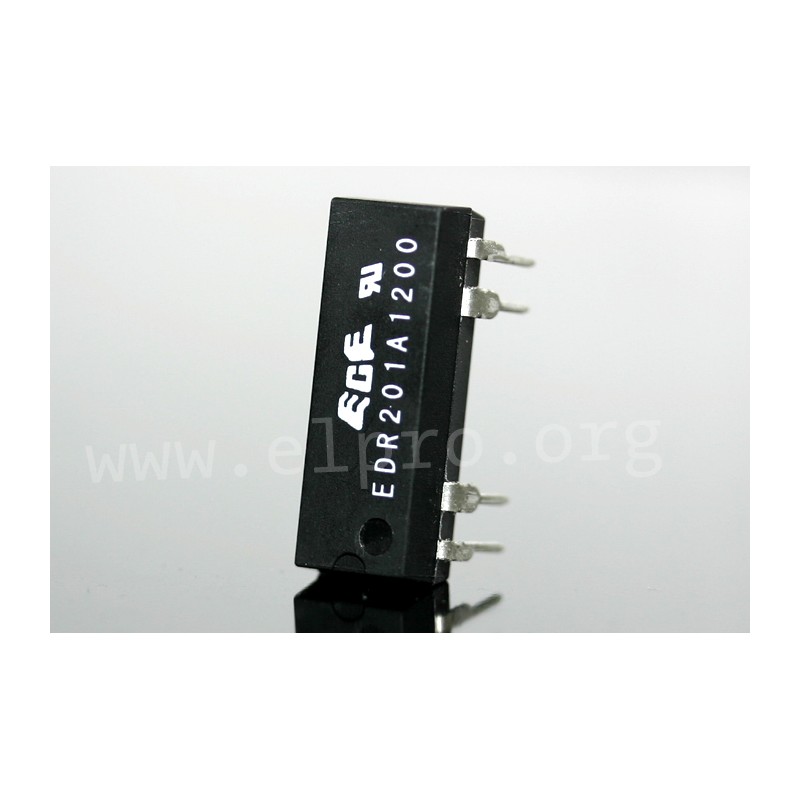

EDR 201A2400

reed relays, DIL housing, 1 normally-open

* wash tight
* plug-in a 14-pole DIP/DIL-IC socket (see note)

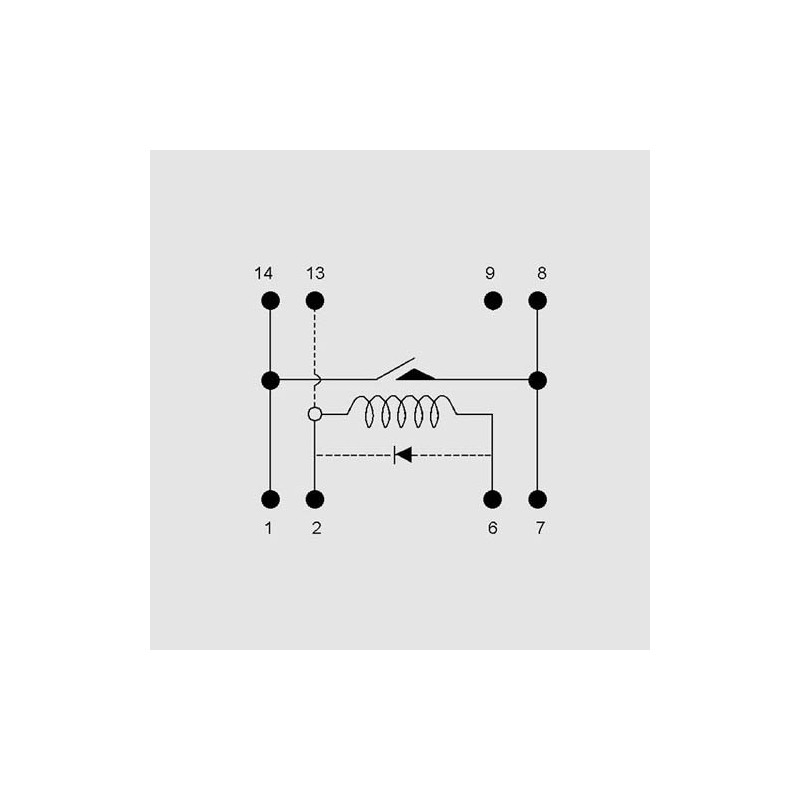

* configuration: SPST-NΩ
* switching capacity, max.: 10W
* switching voltage, max.: 100V DC
* switching current, max.: 0.5A
* transport current, max.: 1A
* contact resistance: 150mΩ
* insulation resistance (coil/contacts): 1010Ω
* breakdown voltage, min. (coil/contacts): 1400V DC
* operate time, max. (incl. bounce): 1ms
* release time, max.: 0.5ms
* vibration resistance: 30G
* temperature range: -40...+85°C

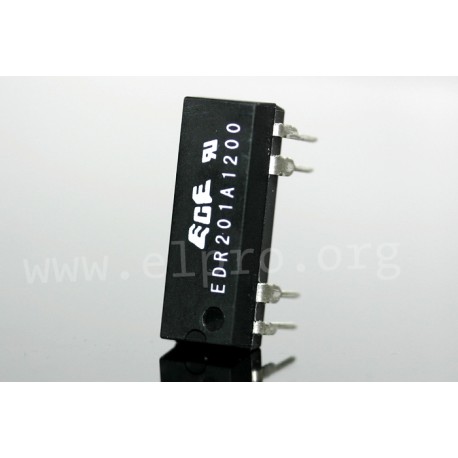

EDR 201A

EDR 201A2400

29292 EDR 201A2400 EDR201A2400Z EDR201A2400Z reed relays, DIL housing, 1 normally-open. * wash tight* plug-in a 14-pole DIP/DIL-IC socket (see note)* configuration: SPST-NΩ* switching capacity, max.: 10W* switching voltage, max.: 100V DC* switching current, max.: 0.5A* transport current, max.: 1A* contact resistance: 150mΩ* insulation resistance (coil/contacts): 1010Ω* breakdown voltage, min. (coil/contacts): 1400V DC* operate time, max. (incl. bounce): 1ms* release time, max.: 0.5ms* vibration resistance: 30G* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name EDR201A2400Z
Switching current [A] 0,5
Nominal resistance [Ω] 2400
Response voltage [V] 18...32
Max. switching voltage [V] 100

Unit price

2,09 €

Stock: 3
Next incoming goods:
CW 01/2025
63 units

Further delivery:
CW 12/2025

Minimum order quantity 1 to 3 units or multiples of 9 plus 0 to 3 .
