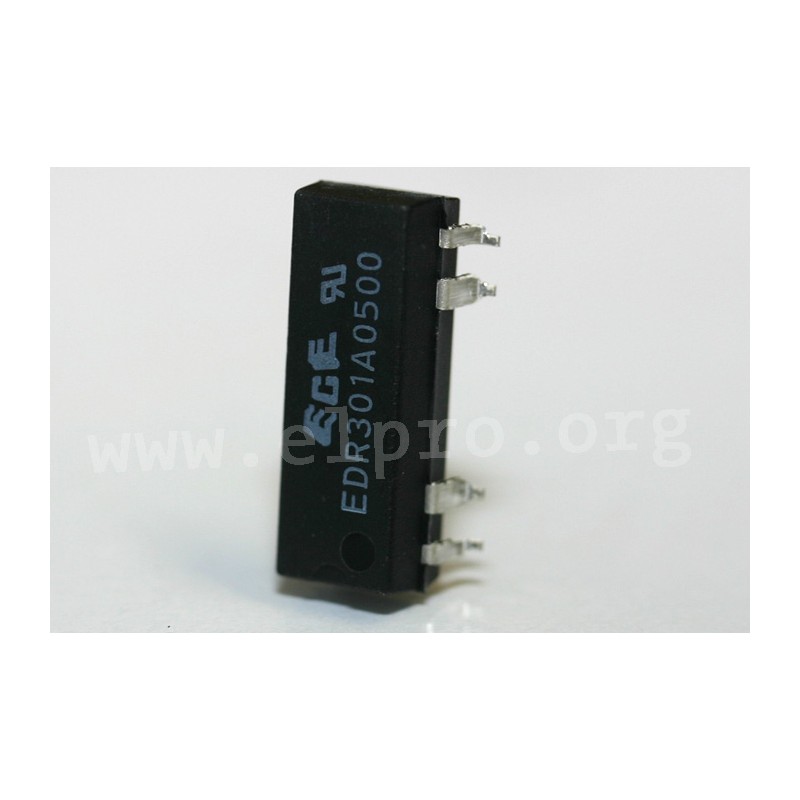

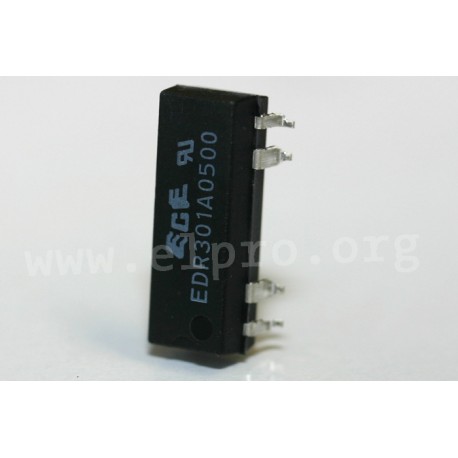

EDR 301A0500

reed relays, Gull Wing housing, 1 normally-open

• wash tight
• configuration: SPST-NO
• switching capacity, max.: 10VA
• switching voltage, max.: 100V DC
• switching current, max.: 0.5A
• transport current, typ.: 1A
• contact resistance, max.: 150mΩ
• insulation resistance, min. (coil/contacts): 1010Ω
• breakdown voltage (coil/contacts): 1400V DC
• operate time, (incl. bounce): 1ms
• release time: 0.5ms
• vibration resistance (50...500Hz): 30G
• temperature range: -40...+85°C
• coil data: polarized, monostable

EDR 301A0500

EDR 301A0500

29289 EDR 301A0500 EDR301A0500Z EDR301A0500Z reed relays, Gull Wing housing, 1 normally-open. • wash tight• configuration: SPST-NO• switching capacity, max.: 10VA• switching voltage, max.: 100V DC• switching current, max.: 0.5A• transport current, typ.: 1A• contact resistance, max.: 150mΩ• insulation resistance, min. (coil/contacts): 1010Ω• breakdown voltage (coil/contacts): 1400V DC• operate time, (incl. bounce): 1ms• release time: 0.5ms• vibration resistance (50...500Hz): 30G• temperature range: -40...+85°C• coil data: polarized, monostable

Specifications

manufacturer
Manufacturer's name EDR301A0500Z
Nominal resistance [Ω] 500
Switching current [A] 0,5
Response voltage [V] 3,75...16
Max. switching voltage [V] 100

Unit price

1,92 €

Stock: 76
Next incoming goods:
CW 10/2025
135 units

Further delivery:
CW 16/2025

Minimum order quantity 1 to 4 units or multiples of 9 plus 0 to 4 .
