EDR 201A1200

reed relays, DIL housing, 1 normally-open

* wash tight
* plug-in a 14-pole DIP/DIL-IC socket (see note)
* configuration: SPST-NΩ
* switching capacity, max.: 10W
* switching voltage, max.: 100V DC
* switching current, max.: 0.5A
* transport current, max.: 1A
* contact resistance: 150mΩ
* insulation resistance (coil/contacts): 1010Ω
* breakdown voltage, min. (coil/contacts): 1400V DC
* operate time, max. (incl. bounce): 1ms
* release time, max.: 0.5ms
* vibration resistance: 30G
* temperature range: -40...+85°C

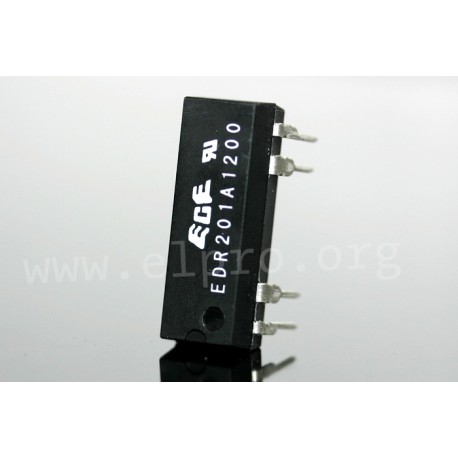

ERD 201A1200

EDR 201A1200

29287 EDR 201A1200 EDR201A1200Z EDR201A1200Z reed relays, DIL housing, 1 normally-open. * wash tight* plug-in a 14-pole DIP/DIL-IC socket (see note)* configuration: SPST-NΩ* switching capacity, max.: 10W* switching voltage, max.: 100V DC* switching current, max.: 0.5A* transport current, max.: 1A* contact resistance: 150mΩ* insulation resistance (coil/contacts): 1010Ω* breakdown voltage, min. (coil/contacts): 1400V DC* operate time, max. (incl. bounce): 1ms* release time, max.: 0.5ms* vibration resistance: 30G* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name EDR201A1200Z
Switching current [A] 0,5
Response voltage [V] 9...20
Max. switching voltage [V] 100

Unit price

1,90 €

Stock: 0
Next incoming goods:
CW 13/2025
225 units

Further delivery:
CW 16/2025

Minimum order quantity 9 units or
multiples of 9.
