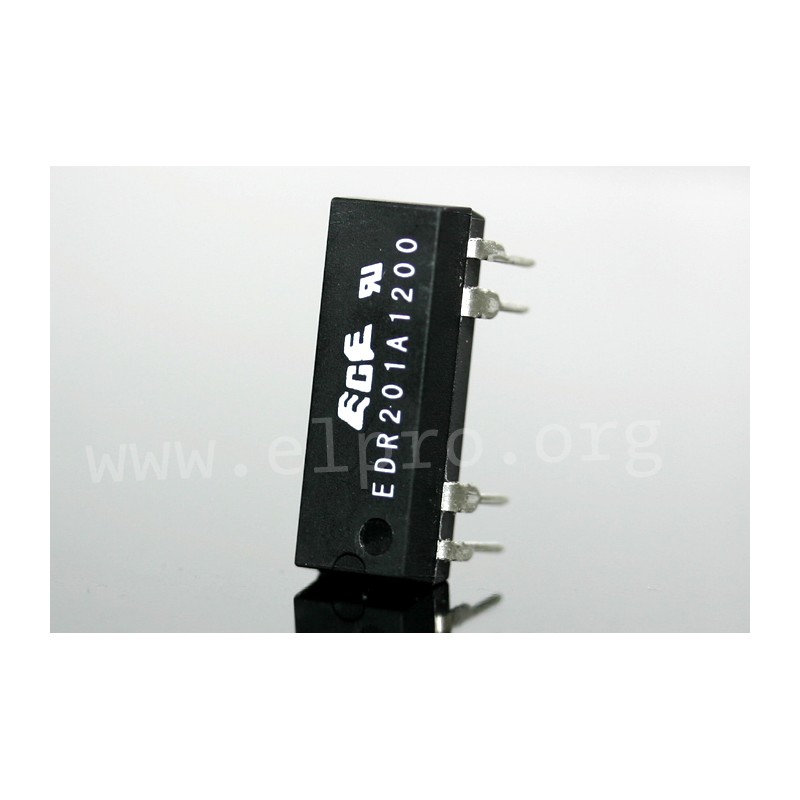

EDR 201A0500

reed relays, DIL housing, 1 normally-open

• wash tight

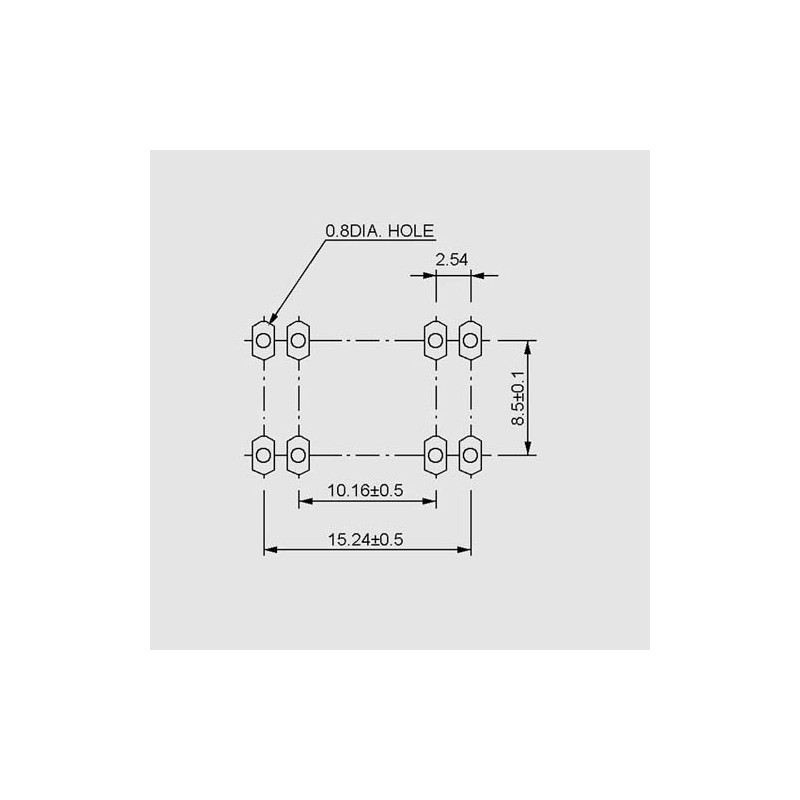

• plug-in a 14-pole DIP/DIL-IC socket (see note)

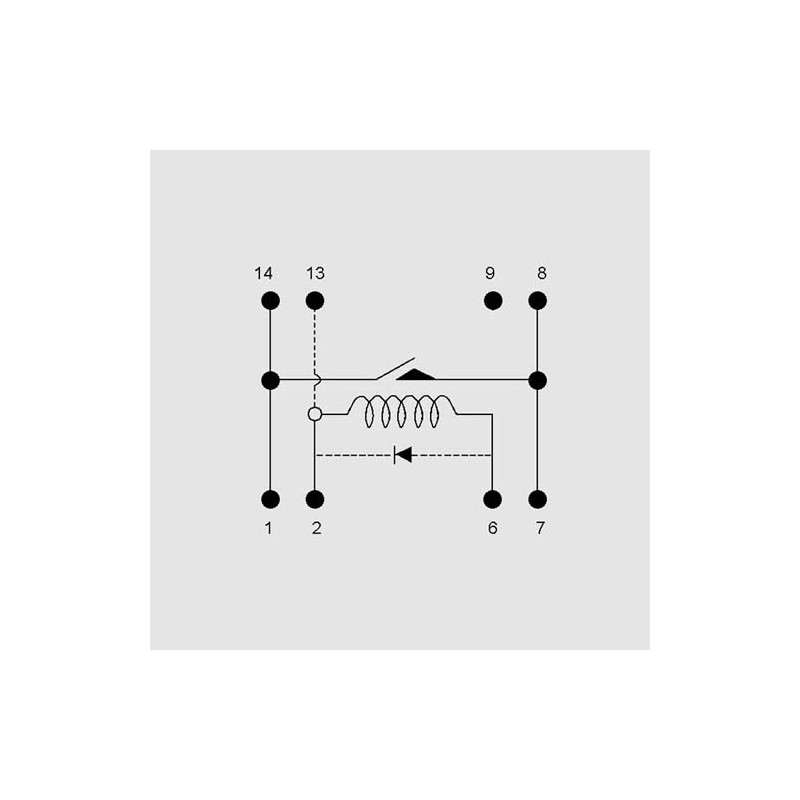

• configuration: SPST-NΩ
• switching capacity, max.: 10W
• switching voltage, max.: 100V DC
• switching current, max.: 0.5A
• transport current, max.: 1A
• contact resistance: 150mΩ
• insulation resistance (coil/contacts): 1010Ω
• breakdown voltage, min. (coil/contacts): 1400V DC
• operate time, max. (incl. bounce): 1ms
• release time, max.: 0.5ms
• vibration resistance: 30G
• temperature range: -40...+85°C

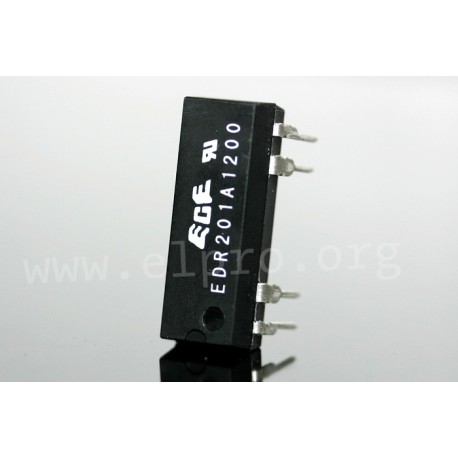

EDR 201A

EDR 201A0500

29284 EDR 201A0500 EDR201A0500Z EDR201A0500Z reed relays, DIL housing, 1 normally-open. * wash tight* plug-in a 14-pole DIP/DIL-IC socket (see note)* configuration: SPST-NΩ* switching capacity, max.: 10W* switching voltage, max.: 100V DC* switching current, max.: 0.5A* transport current, max.: 1A* contact resistance: 150mΩ* insulation resistance (coil/contacts): 1010Ω* breakdown voltage, min. (coil/contacts): 1400V DC* operate time, max. (incl. bounce): 1ms* release time, max.: 0.5ms* vibration resistance: 30G* temperature range: -40...+85°C

Specifications

manufacturer
Manufacturer's name EDR201A0500Z
Switching current [A] 0,5
Nominal resistance [Ω] 500
Response voltage [V] 3,75...16
Max. switching voltage [V] 100

Unit price

1,85 €

Stock: 428
Next incoming goods:
CW 23/2025
540 units

Further delivery:
CW 32/2025

Minimum order quantity 1 to 5 units or multiples of 9 plus 0 to 5 .
