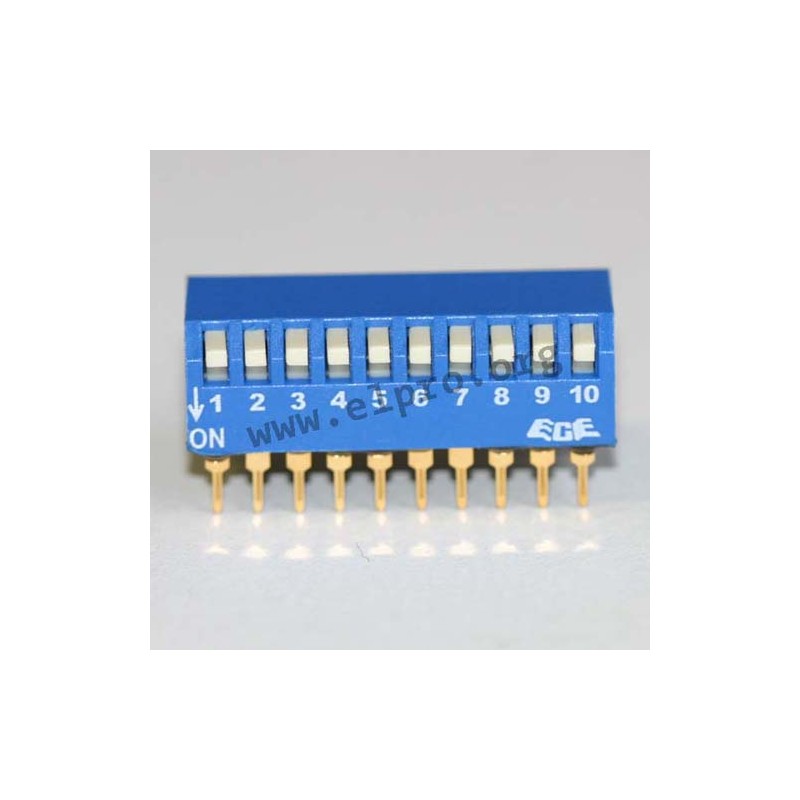

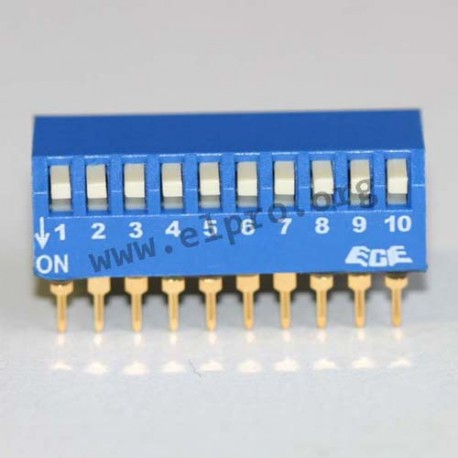

DP 10

piano switch, DIL version, by ECE

• type: piano
• pitch 2.54mm
• spacing between rows 7.62mm
• bottom epoxy sealed against flux immersion
• contact finish: gold over nickel
• operating temperature: -25...+70°C
• operating force, max.: 800g
• air humidity: 95% RH, 40°C/96h
• switching capacity: 25mA/24V DC
• contact resistance, max.after operating life test: 100mΩ
• insulation resistance (100V DC), min.: 1000MΩ
• dielectric strength, min.: 500V DC/1min.
• capacity of adjacent switch, max.: 5pF
• by ECE
• insulation shell: UL94V-0, blue
• switching capacity: 2000 operations
• transmission current: 100mA/50V DC
• contact resistance, max. new state: 50mΩ

DP 10

DP 10

13196 DP 10 EPG-110-A EPG-110-A piano switch, DIL version, by ECE. • type: piano• pitch 2.54mm• spacing between rows 7.62mm• bottom epoxy sealed against flux immersion• contact finish: gold over nickel• operating temperature: -25...+70°C• operating force, max.: 800g• air humidity: 95% RH, 40°C/96h• switching capacity: 25mA/24V DC• contact resistance, max.after operating life test: 100mΩ• insulation resistance (100V DC), min.: 1000MΩ• dielectric strength, min.: 500V DC/1min.• capacity of adjacent switch, max.: 5pF• by ECE• insulation shell: UL94V-0, blue• switching capacity: 2000 operations• transmission current: 100mA/50V DC• contact resistance, max. new state: 50mΩ

Specifications

manufacturer
Manufacturer's name EPG-110-A
Switch 10

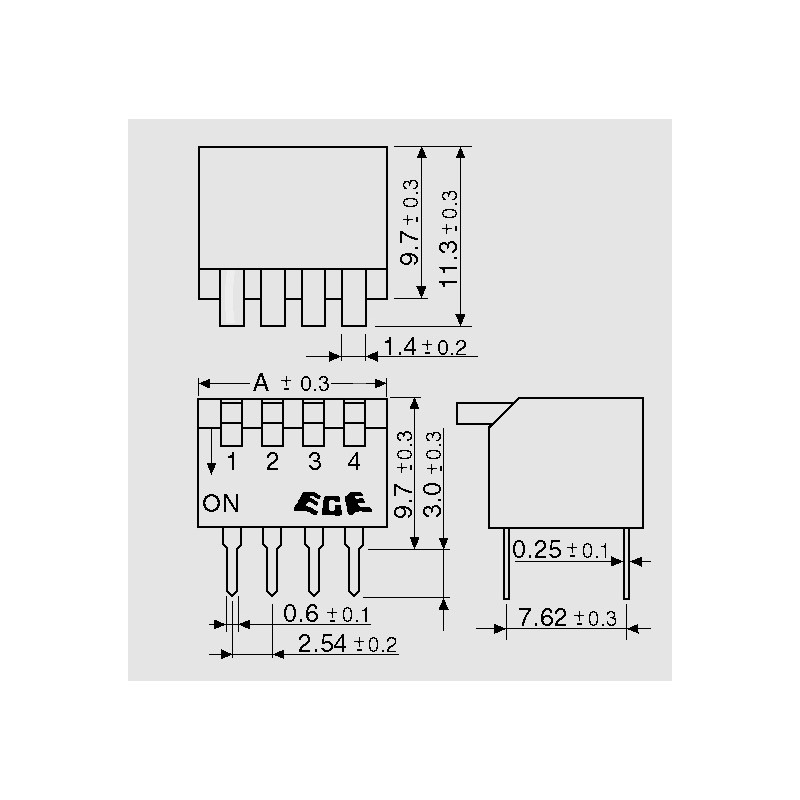

A [mm] 26,7
Data Sheet

Unit price

1,21 €

Stock: 8
Next incoming goods:
CW 10/2025
190 units

Further delivery:
CW 12/2025

Minimum order quantity 1 to 8 units or multiples of 19 plus 0 to 8 .
