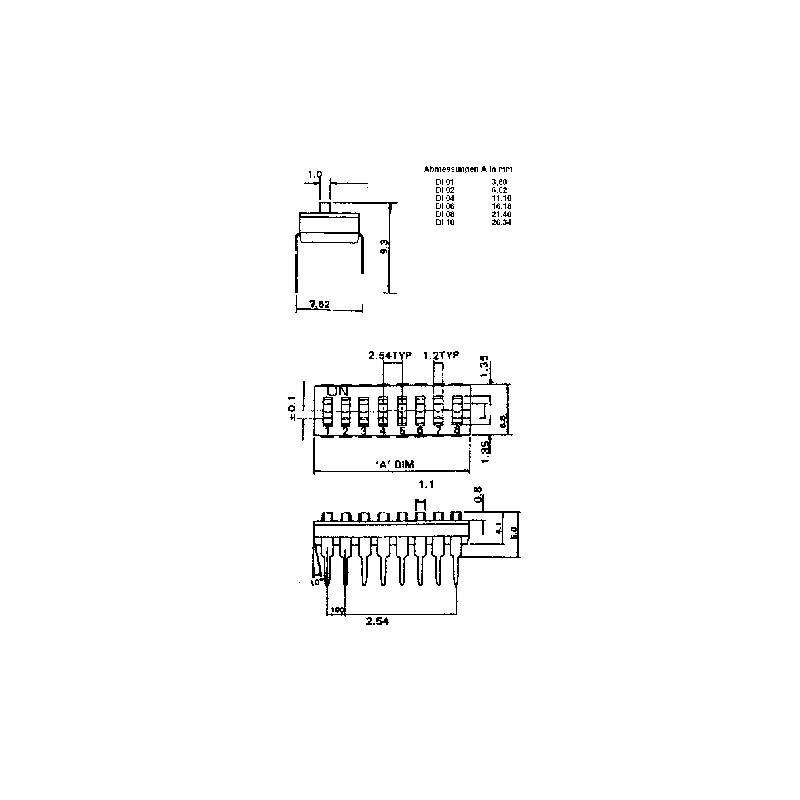

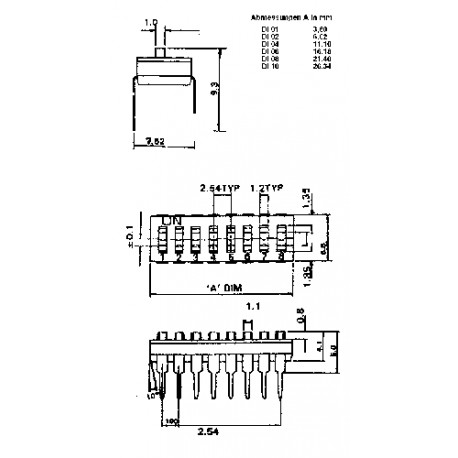

DI 06 H
• extended actuator
• bottom epoxy sealed against flux immersion
• switching capability: 25mA/24V DC
• transmission current: 100mA/50V DC
• contact resistance, max.
new state: 50mΩ
after operating life test: 100mΩ
• insulation resistance (100V DC), min.: 1000MΩ
• dielectric strength, min.: 500V DC/1min.
• capacity of adjacent switch, max.: 5pF
• insulation shell: UL94V-0, black
• solder pin: tin-plated
• contact finish: gold over nickel
• operating temperature: -25...+70°C
• operating force, max.: 800g
• switching capability: 2000 operations
• air humidity: 95% RH, 40°C/96h
• vibration test: MIL-STD-202F, method 204D
• pitch: 2.54mm
• spacing between rows: 7.62mm
code switch, IC version
• can be assembled by any automatic IC inserter• extended actuator
• bottom epoxy sealed against flux immersion
• switching capability: 25mA/24V DC
• transmission current: 100mA/50V DC
• contact resistance, max.
new state: 50mΩ
after operating life test: 100mΩ
• insulation resistance (100V DC), min.: 1000MΩ
• dielectric strength, min.: 500V DC/1min.
• capacity of adjacent switch, max.: 5pF
• insulation shell: UL94V-0, black
• solder pin: tin-plated
• contact finish: gold over nickel
• operating temperature: -25...+70°C
• operating force, max.: 800g
• switching capability: 2000 operations
• air humidity: 95% RH, 40°C/96h
• vibration test: MIL-STD-202F, method 204D
• pitch: 2.54mm
• spacing between rows: 7.62mm
DI 06 H
Discontinued items. Only remainder of stock available.
Specifications
| manufacturer | ECE |
| Manufacturer's name | EAH-106-EZ |
