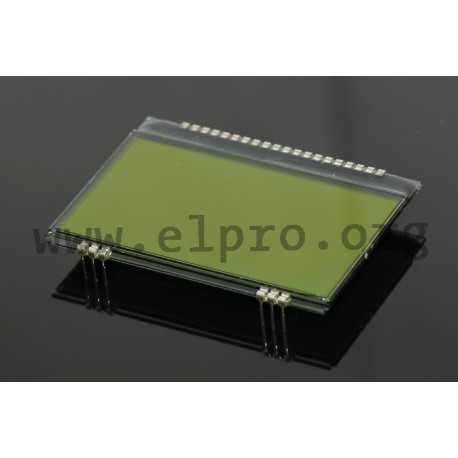

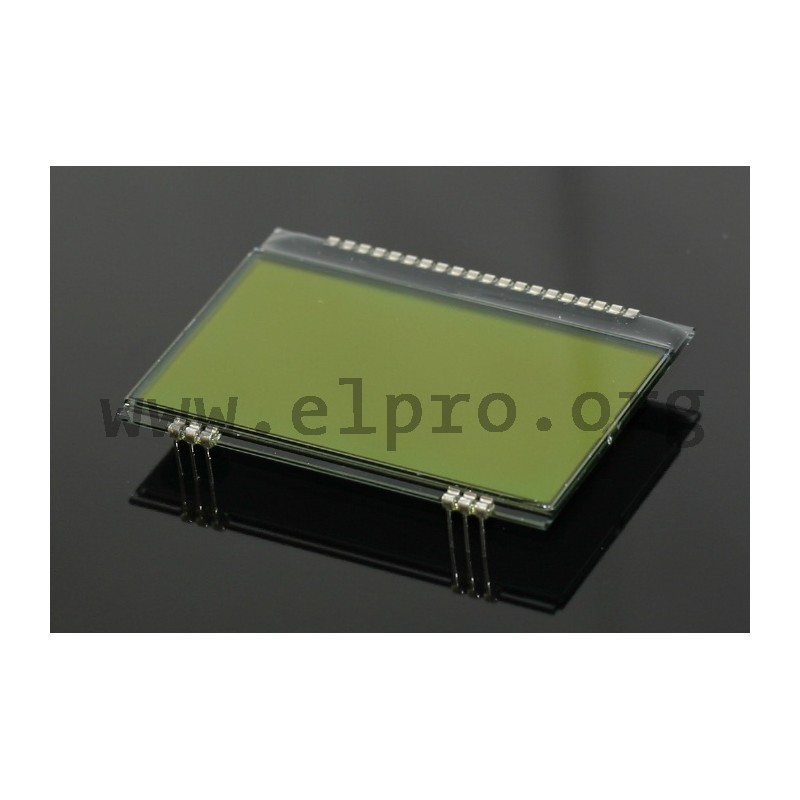

EA DOGL128L-6

Display Visions STN LCD displays

Display Visions monochrome STN LCD displays in 128x64 format. The supply voltage is typically 3.3 volts or 5 volts and the operating temperature range is between -20 and +70°C. The displays with the suffix TP are equipped with a touch panel, while those with the suffix TK are found in the snap-in housing or installation panel and have programmable macros. In the EA DOGL displays, the backlight is not built into the display, but is plugged onto the display as an accessory.

EA DOGL128L-6

EA DOGL128L-6

33006 EA DOGL128L-6 EADOGL128L-6 EADOGL128L-6 Display Visions STN LCD displays. Display Visions monochrome STN LCD displays in 128x64 format. The supply voltage is typically 3.3 volts or 5 volts and the operating temperature range is between -20 and +70°C. The displays with the suffix TP are equipped with a touch panel, while those with the suffix TK are found in the snap-in housing or installation panel and have programmable macros. In the EA DOGL displays, the backlight is not built into the display, but is plugged onto the display as an accessory.

Specifications

manufacturer
Manufacturer's name EADOGL128L-6
Pixel size [mm] 0,46x0,5
Background yellow/green
Illumination -
Field of view [mm] 64x35,5
Dimensions [mm] 67,8x48,3x2,8
Data Sheet

Unit price

10,19 €

Stock: 15
Further delivery:
CW 50/2024
