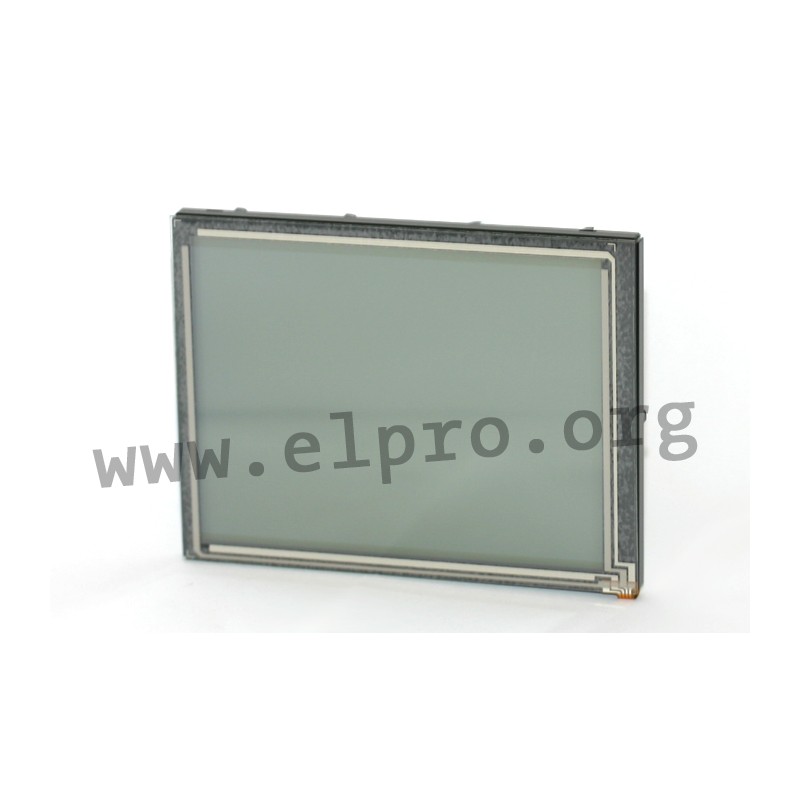

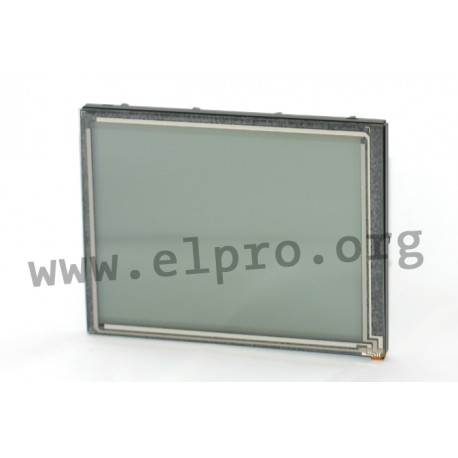

EA EDIP320J-8LATP

Display Visions FSTN LCD displays

The monochrome graphic modules from Display Visions offer a resolution of 320x240 and are available in different versions. The supply voltage is typically +3.3V or 5.0V and the operating temperature range is between -20 and +70°C. Some variants have a touch panel (EA_TP). Thanks to the FSTN LCD technology and the high contrast properties, the displays are easy to read even in difficult lighting conditions.

EA EDIP320J-8LATP

EA EDIP320J-8LATP

28957 EA EDIP320J-8LATP EAEDIP320J-8LATP EAEDIP320J-8LATP Display Visions FSTN LCD displays. The monochrome graphic modules from Display Visions offer a resolution of 320x240 and are available in different versions. The supply voltage is typically +3.3V or 5.0V and the operating temperature range is between -20 and +70°C. Some variants have a touch panel (EA_TP). Thanks to the FSTN LCD technology and the high contrast properties, the displays are easy to read even in difficult lighting conditions.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name EAEDIP320J-8LATP
Pixel size [mm] 0,34x0,34
Background amber
Illumination amber
Field of view [mm] 121x92,6
Dimensions [mm] 137,8x105,3x11,6
Data Sheet

Unit price

290,49 €

Stock: 1
