DEM800480 BTMH-PW-N

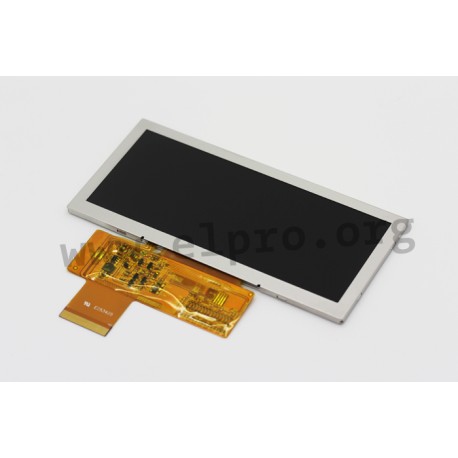

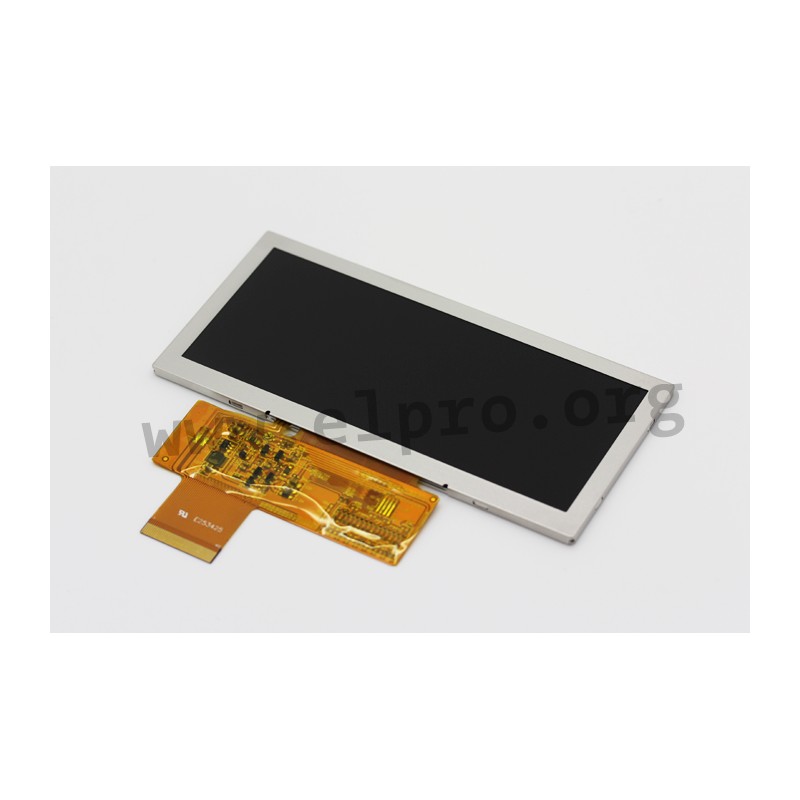

Display Elektronik TFT graphic modules

TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.

DEM800480 BTMH-PW-N

36478 DEM800480 BTMH-PW-N DEM800480BTMH-PW-N DEM800480BTMH-PW-N Display Elektronik TFT graphic modules. TFT LCD displays with a resolution of 800x480 pixels and a full-colour display with a colour depth of 256. These displays are equipped with LED backlighting to provide clear images even in difficult lighting conditions. There are different versions of the displays, each with a touch panel (suffixes: _A-T, _C-T, _(A-TOUCH), _(C-TOUCH)). The operating temperature range is between -20°C and +70°C, thus ensuring use in different environmental conditions.

Specifications

manufacturer
Manufacturer's name DEM800480BTMH-PW-N
Illumination white
Field of view [mm] 152,4x91,4
Dimensions [mm] 166,6x109,4x10
Diagonal ["] 7
Data Sheet

Unit price

139,59 €

Stock: 2
Further delivery:
CW 02/2025
