DEM 240160 AFGH-PW

Display Elektronik LCD graphic modules

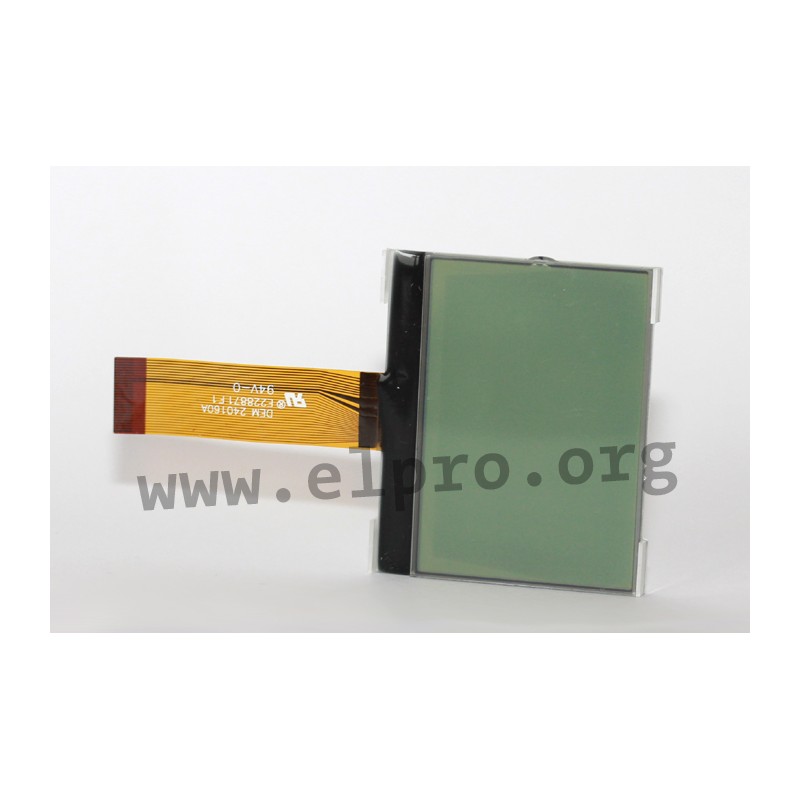

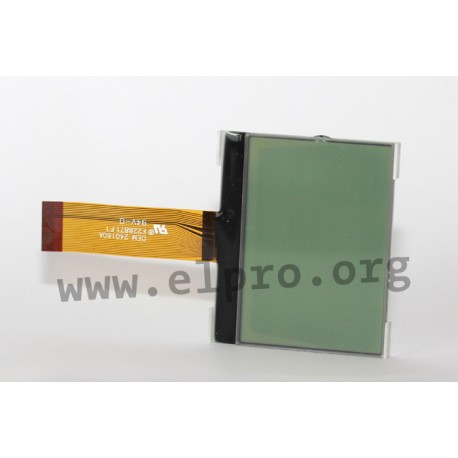

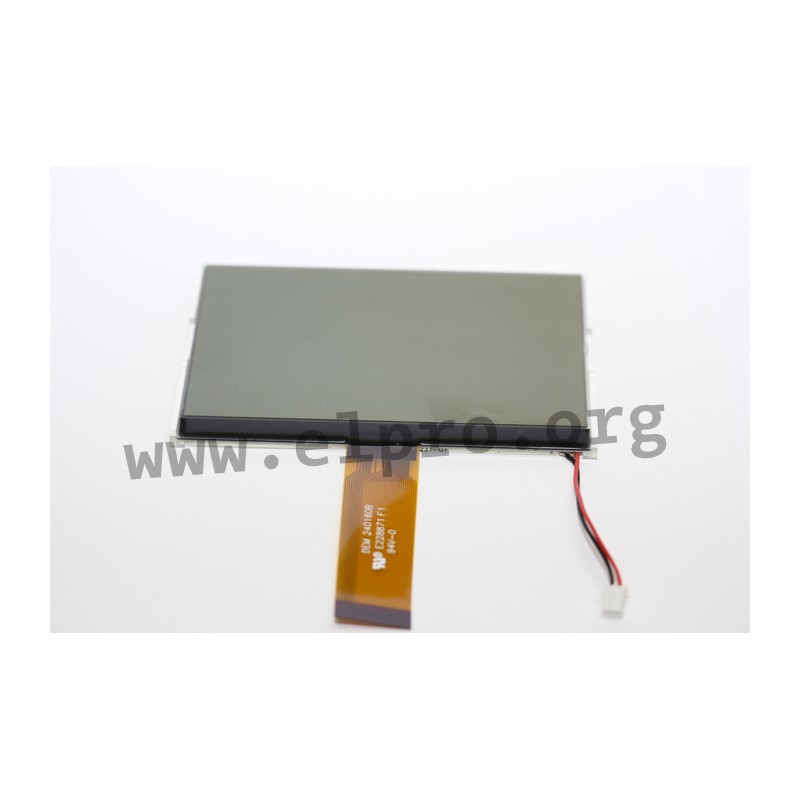

The monochrome FSTN LCD module from Display Elektronik offers a high resolution of 240x160 pixels and can be easily connected via SPI/I²C or an 8- or 16-bit data bus. The supply voltage is typically +3 or 3.3 volts. The module is robust and reliable with an operating temperature range of -20 to +70°C. Ideal for applications that require high resolution and easy connectivity.

DEM240160AFGH-PW, Display Elektronik FSTN LCD displays, 240x160

DEM 240160 AFGH-PW

36403 DEM 240160 AFGH-PW DEM240160AFGH-PW DEM240160AFGH-PW Display Elektronik LCD graphic modules. The monochrome FSTN LCD module from Display Elektronik offers a high resolution of 240x160 pixels and can be easily connected via SPI/I²C or an 8- or 16-bit data bus. The supply voltage is typically +3 or 3.3 volts. The module is robust and reliable with an operating temperature range of -20 to +70°C. Ideal for applications that require high resolution and easy connectivity.

Specifications

manufacturer
Manufacturer's name DEM240160AFGH-PW
Pixel size [mm] 0,197x0,197
Background white
Illumination white
Field of view [mm] 56x38,7
Dimensions [mm] 60x51,7x5
Data Sheet

Unit price

19,39 €

Stock: 105
Further delivery:
CW 02/2025
