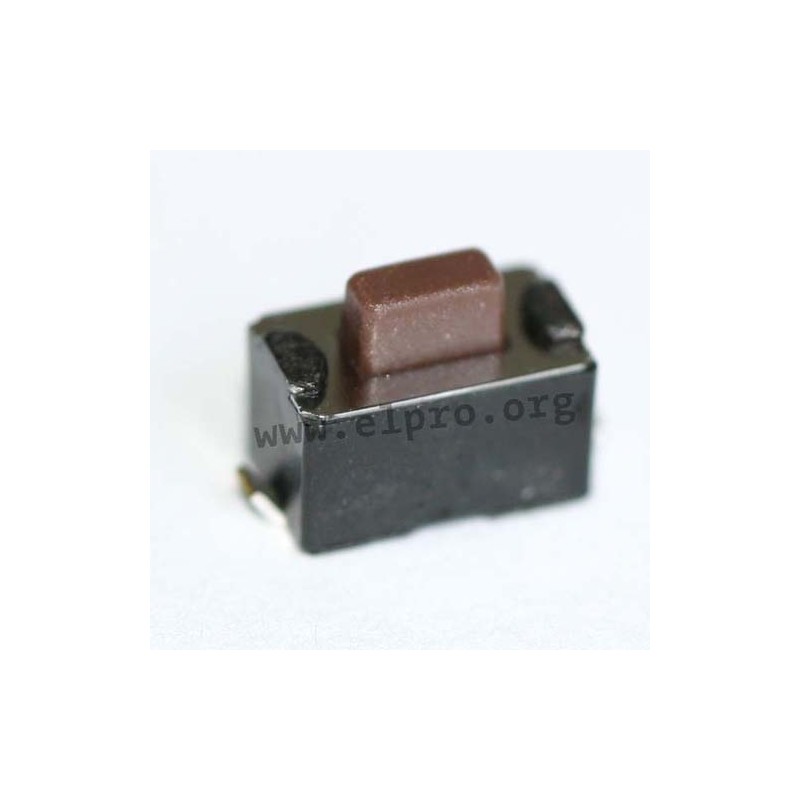

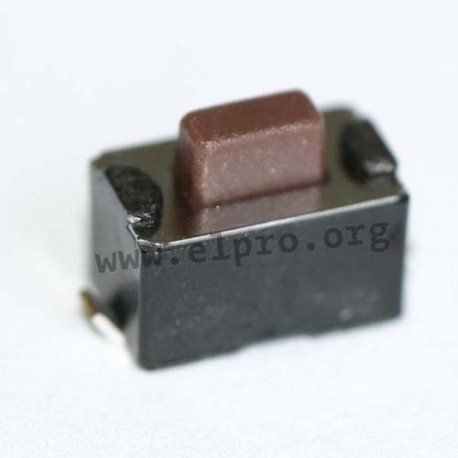

LPT 32 N SMD

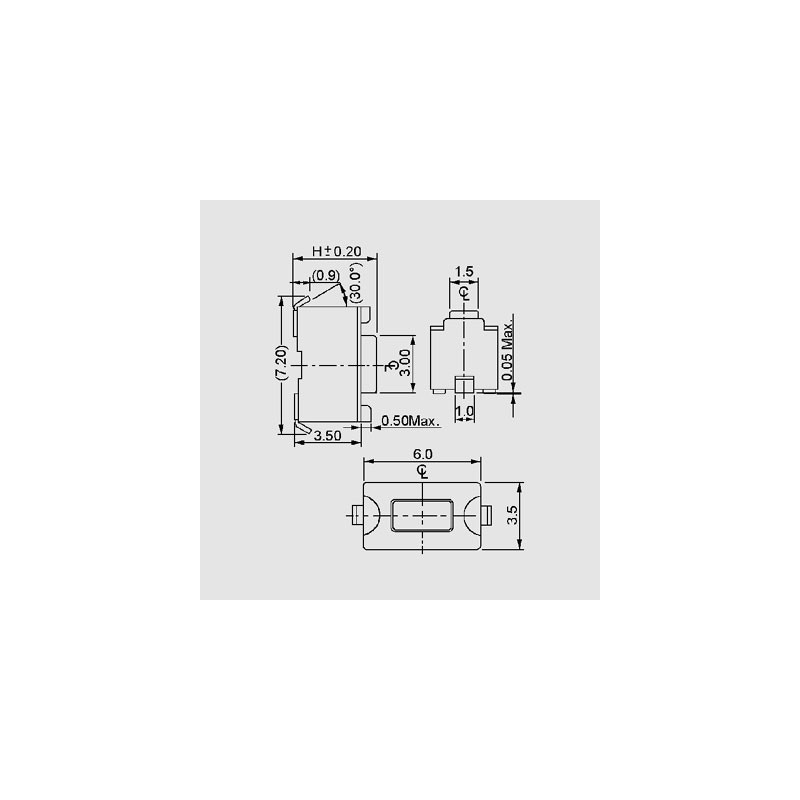

SMD, dimensions: 3.5x6mm, 1 NΩ

* single pole input key with an SPST-NΩ contact
* for SMD assembly
* very small dimensions
* data and signal technology, measuring and controlling, membrane keyboards
* switching voltage, max.: 12V DC
* switching voltage, max.: 50mA
* test voltage, 1min.: 250V AC
* operating life with switching capacity: 50'000 operations
* contact resistance, max.: 100mΩ
* insulation resistance, min.: 100MΩ/500V DC
* switching type: 1 NΩ contact
* operating force: 1.6N
* operating path: 0.25mm+0.2, -0.1
* insulation material: thermoplastic nylon, UL94V-0
* contact surface: spring steel, silver-plated
* solder temperature and durability, max.: 260°C for 5s
* operating temperature: -25...+70°C
LPT 32 N SMD

LPT 32 N SMD

12085 LPT 32 N SMD DTSM-32N-V-T/R DTSM-32N-V-T/R SMD, dimensions: 3.5x6mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* for SMD assembly* very small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching voltage, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 50'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* switching type: 1 NΩ contact* operating force: 1.6N* operating path: 0.25mm+0.2, -0.1* insulation material: thermoplastic nylon, UL94V-0* contact surface: spring steel, silver-plated* solder temperature and durability, max.: 260°C for 5s* operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTSM-32N-V-T/R
D x L [mm] 3,5 x 6
Operating force [N] 1,6
Data Sheet

Unit price

0,128 €

Stock: 4602
Next incoming goods:
CW 02/2025
1600 units

Further delivery:
CW 35/2025

Minimum order quantity 1 to 2 units or multiples of 100 plus 0 to 2 .
