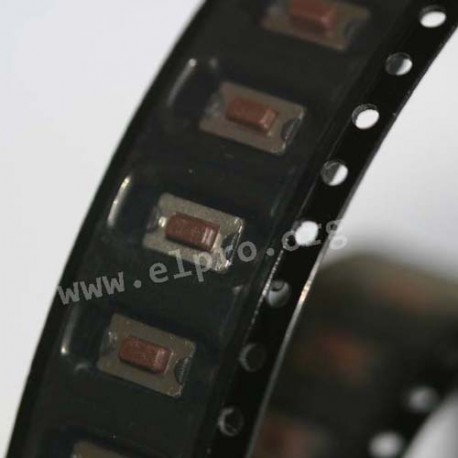

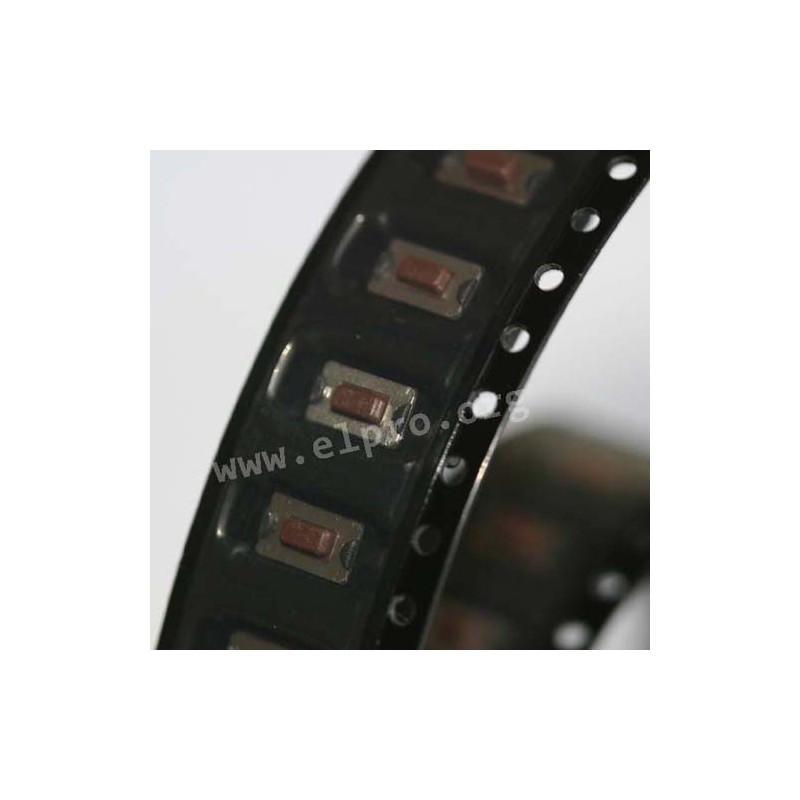

LPT 31 N SMD

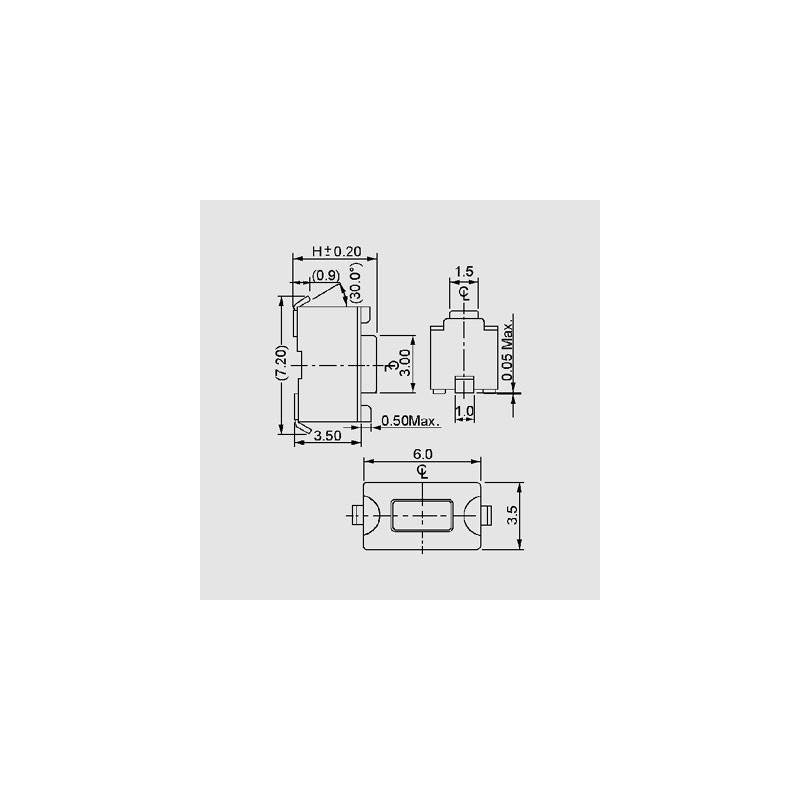

SMD, dimensions: 3.5x6mm, 1 NΩ

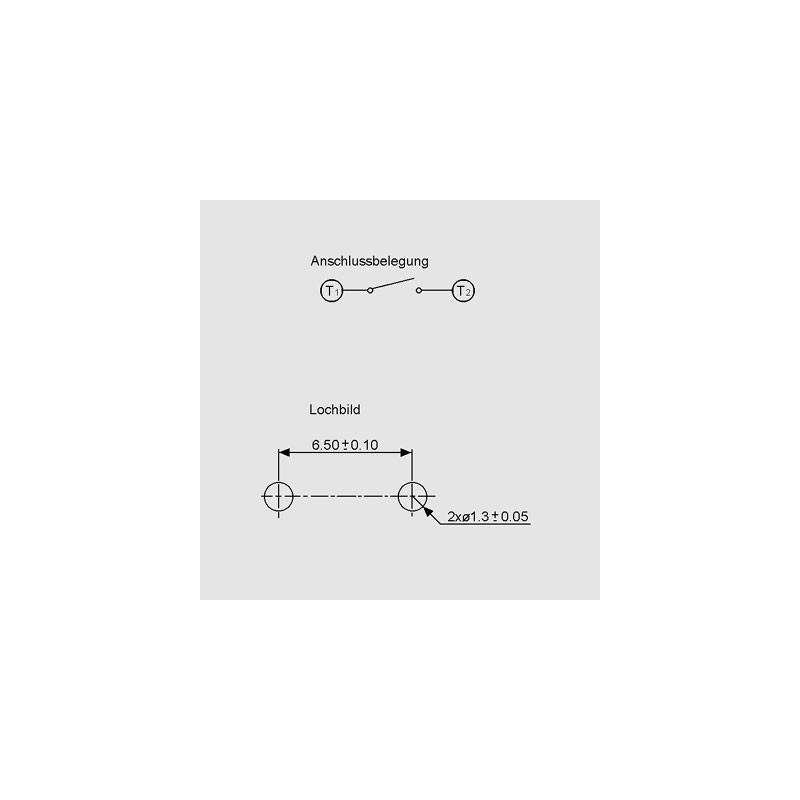

• single pole input key with an SPST-NΩ contact
• for SMD assembly
• very small dimensions
• data and signal technology, measuring and controlling, membrane keyboards
• switching voltage, max.: 12V DC
• switching voltage, max.: 50mA
• test voltage, 1min.: 250V AC
• operating life with switching capacity: 50'000 operations
• contact resistance, max.: 100mΩ
• insulation resistance, min.: 100MΩ/500V DC
• switching type: 1 NΩ contact
• operating force: 1.6N
• operating path: 0.25mm+0.2, -0.1
• insulation material: thermoplastic nylon, UL94V-0
• contact surface: spring steel, silver-plated
• solder temperature and durability, max.: 260°C for 5s
• operating temperature: -25...+70°C
LPT 31 N SMD

LPT 31 N SMD

12083 LPT 31 N SMD DTSM-31N-V-T/R DTSM-31N-V-T/R SMD, dimensions: 3.5x6mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* for SMD assembly* very small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching voltage, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 50'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* switching type: 1 NΩ contact* operating force: 1.6N* operating path: 0.25mm+0.2, -0.1* insulation material: thermoplastic nylon, UL94V-0* contact surface: spring steel, silver-plated* solder temperature and durability, max.: 260°C for 5s* operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTSM-31N-V-T/R
D x L [mm] 3,5 x 6
Operating force [N] 1,6
Data Sheet

Unit price

0,124 €

Stock: 5.300
Next incoming goods:
CW 22/2025
1.800 units

Further delivery:
CW 47/2025

Minimum order quantity 100 units or
multiples of 100.
