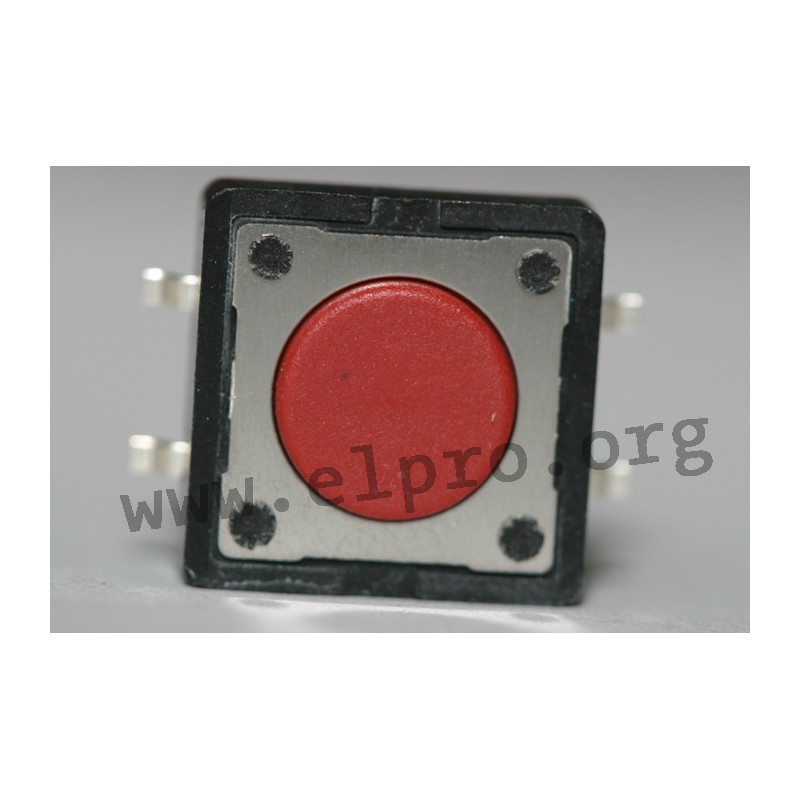

LPT 21 R SMD

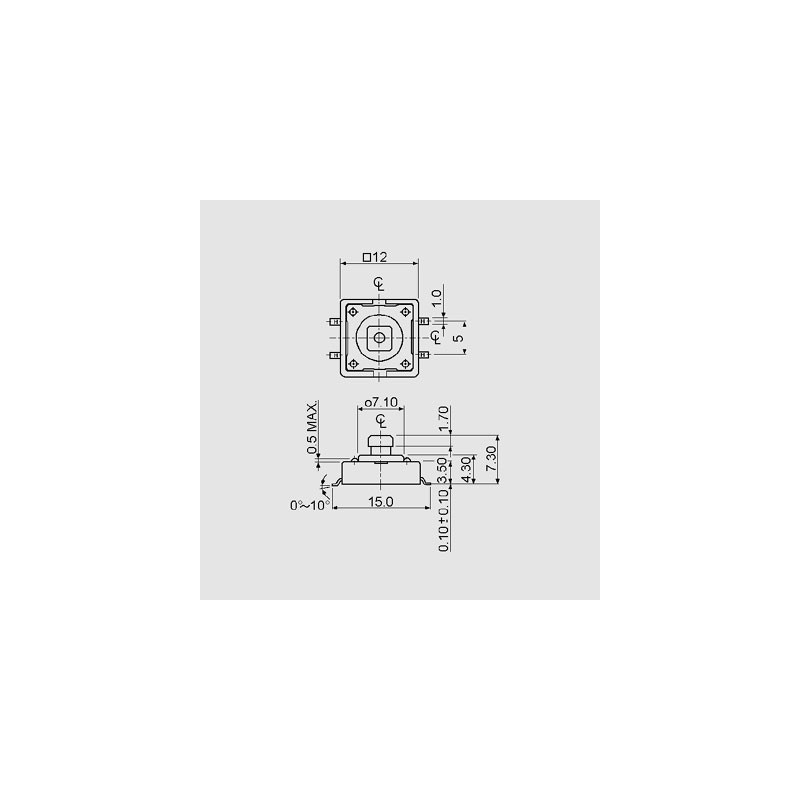

SMD, dimensions: 12x12mm, 1 NΩ

* single pole input key with an SPST-NΩ contact
* for SMD assembly
* very small dimensions
* data and signal technology, measuring and controlling, membrane keyboards
* switching voltage, max.: 12V DC
* switching current, max.: 50mA
* test voltage, 1min.: 250V AC
* operating life with switching capacity: 100'000 operations
* contact resistance, max.: 100mΩ
* insulation resistance, min.: 100MΩ/500V DC
* switching type: 1 NΩ contact
* operating force: 2.6N
* operating path: 0.35mm±0.1
* insulation material: thermoplastic nylon, UL94V-0
* contact surface: bronze silver cladding
* soldering temperature, max.: 255°C
* operating temperature: -25...+70°C

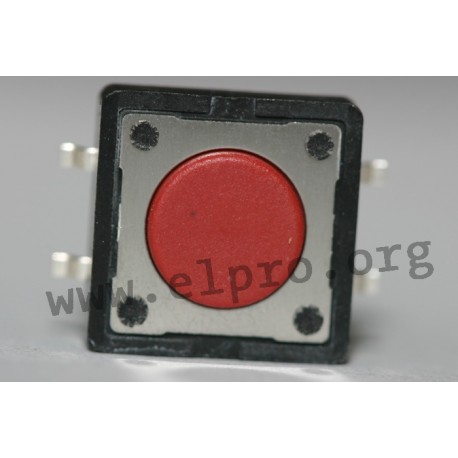

LPT 21 R SMD

LPT 21 R SMD

12077 LPT 21 R SMD DTSM-21R-V-T/R DTSM-21R-V-T/R SMD, dimensions: 12x12mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* for SMD assembly* very small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching current, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 100'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* switching type: 1 NΩ contact* operating force: 2.6N* operating path: 0.35mm±0.1* insulation material: thermoplastic nylon, UL94V-0* contact surface: bronze silver cladding* soldering temperature, max.: 255°C* operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTSM-21R-V-T/R
D x L [mm] 12 x 12
Operating force [N] 2,6

Unit price

0,17 €

Stock: 809
Further delivery:
CW 16/2025

Minimum order quantity 1 to 9 units or multiples of 100 plus 0 to 9 .
