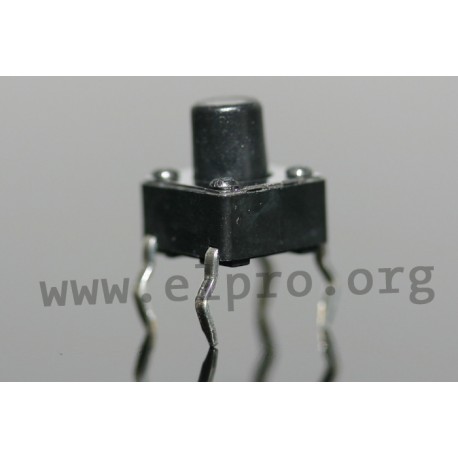

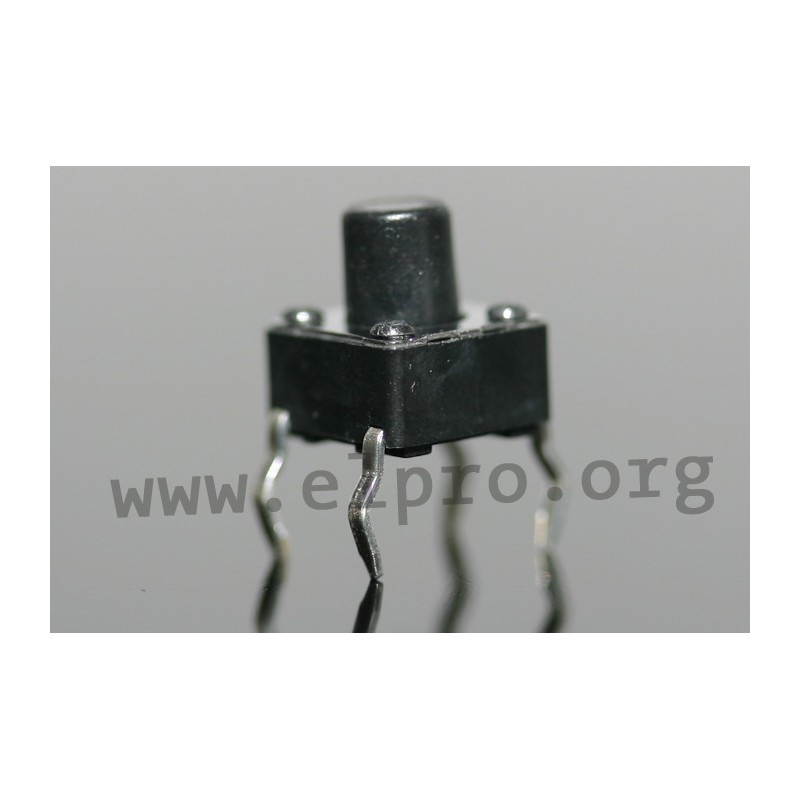

LPT 63 K

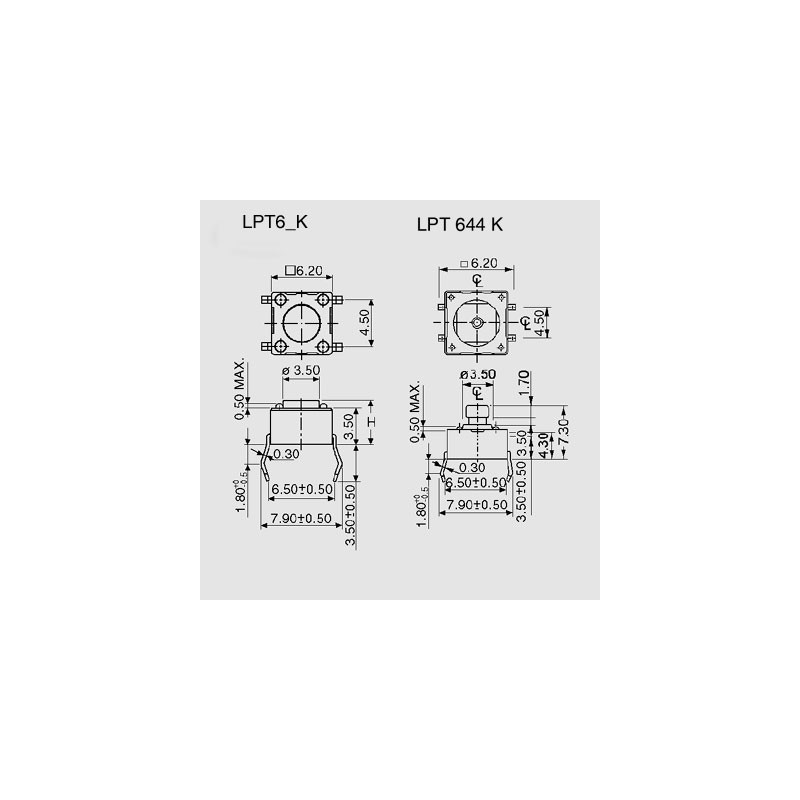

dimensions: 6x6mm, 1 NΩ
• single pole input key with an SPST-NΩ contact
• prevents formed terminal pins (snap-in) falling out
• for PCB assembly
• particularly small dimensions
• data and signal technology, measuring and controlling, membrane keyboards
• switching voltage, max.: 12V DC
• switching current, max.: 50mA
• test voltage, 1min.: 250V AC
• operating life with switching capacity: 200'000 operations
• contact resistance, max.: 100mΩ
• insulation resistance, min.: 100MΩ/500V DC

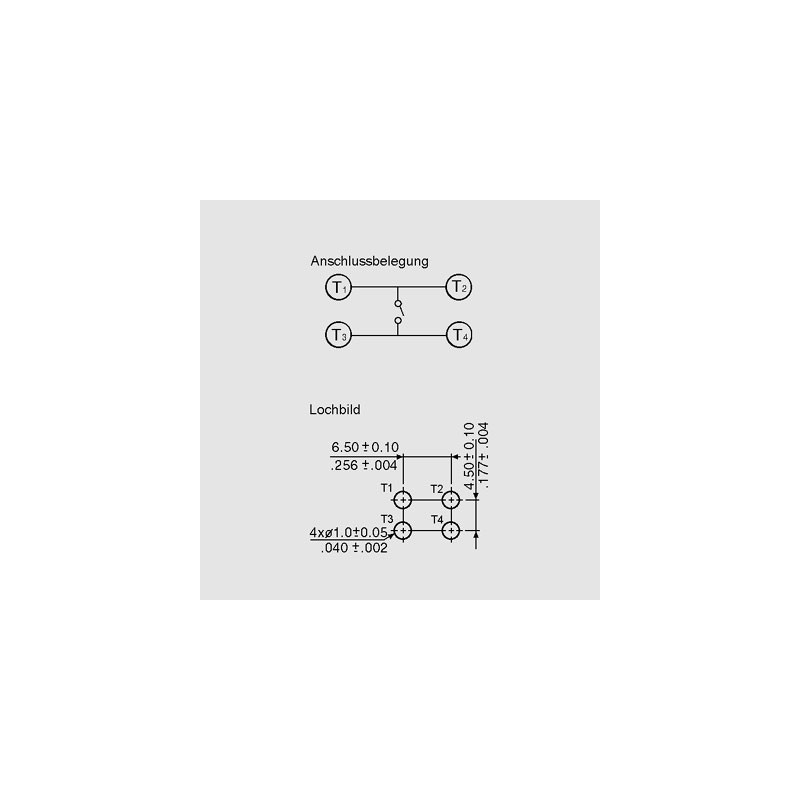

• type of switching: 1 NΩ contact
• operating force: 1N
• operating path: 0.25mm+0.2, -0.1
• insulation material: thermoplastic nylon, UL94V-0
• contact surface: phosphor bronze, silver-plated
• solder temperature and duration, max.: 260°C for 5s
• operating temperature: -25...+70°C
