> Passive elements>Switches/keys>Tact switches>Diptronics tact switches, 6x6mm, 2,6N, DTS-6 series>LPT 61 R

Manufacturers

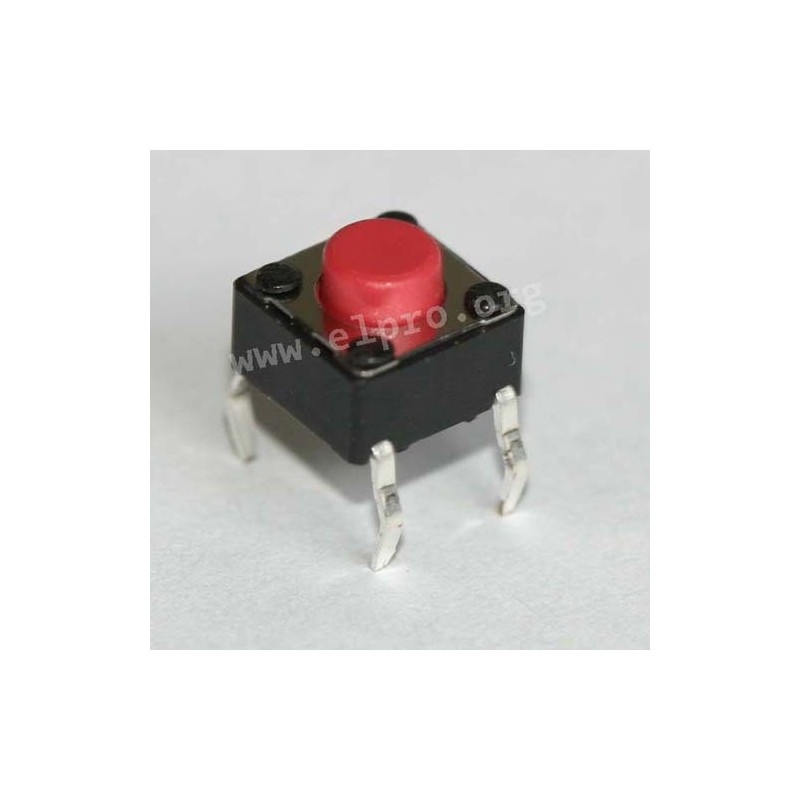

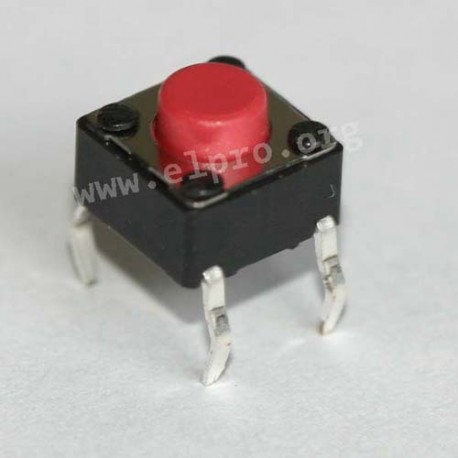

LPT 61 R

dimensions: 6x6mm, 1 NΩ

* single pole input key with an SPST-NΩ contact
* prevents formed terminal pins (snap-in) falling out
* for PCB assembly
* particularly small dimensions
* data and signal technology, measuring and controlling, membrane keyboards
* switching voltage, max.: 12V DC
* switching current, max.: 50mA
* test voltage, 1min.: 250V AC
* operating life with switching capacity: 100'000 operations
* contact resistance, max.: 100mΩ
* insulation resistance, min.: 100MΩ/500V DC
* type of switching: 1 NΩ contact
* operating force: 2.6N
* operating path: 0.25mm+0.2, -0.1
* insulation material: thermoplastic nylon, UL94V-0
* contact surface: phosphor bronze, silver-plated
* solder temperature and duration, max.: 260°C for 5s
* operating temperature: -25...+70°C
* Hersteller: Diptronics
LPT 61 R

LPT 61 R

12089 LPT 61 R DTS-61R-V DTS-61R-V dimensions: 6x6mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* prevents formed terminal pins (snap-in) falling out* for PCB assembly* particularly small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching current, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 100'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* type of switching: 1 NΩ contact* operating force: 2.6N* operating path: 0.25mm+0.2, -0.1* insulation material: thermoplastic nylon, UL94V-0* contact surface: phosphor bronze, silver-plated* solder temperature and duration, max.: 260°C for 5s* operating temperature: -25...+70°C* Hersteller: Diptronics

Specifications

manufacturer
Manufacturer's name DTS-61R-V
Height [mm] 4,3
D x L [mm] 6 x 6
Operating force [N] 2,6
Data Sheet

Unit price

0,077 €

Stock: 71
Further delivery:
CW 35/2025

Minimum order quantity 1 to 71 units or multiples of 100 plus 0 to 71 .
