LPT 32 N

dimensions: 3.5x6mm, 1 NΩ

• single pole input key with an SPST-NΩ contact
• prevents formed terminal pins (snap-in) falling out
• for PCB assembly
• particularly small dimensions
• data and signal technology, measuring and controlling, membrane keyboards
• switching voltage, max.: 12V DC
• switching current, max.: 50mA
• test voltage, 1min.: 250V AC
• operating life with switching capacity: 50'000 operations
• contact resistance, max.: 100mΩ
• insulation resistance, min.: 100MΩ/500V DC
• switching type: 1 NΩ contact
• operating force: 1.6N
• operating path: 0.25mm+0,2, -0,1
• insulation material:thermoplastic nylon, UL94V-0
• contact surface: spring Steel, silver-plated
• solder temperature and duration, max.: 260°C for 5s
• operating temperature: -25...+70°C

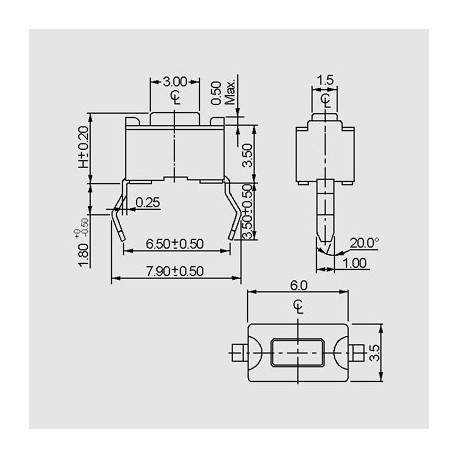

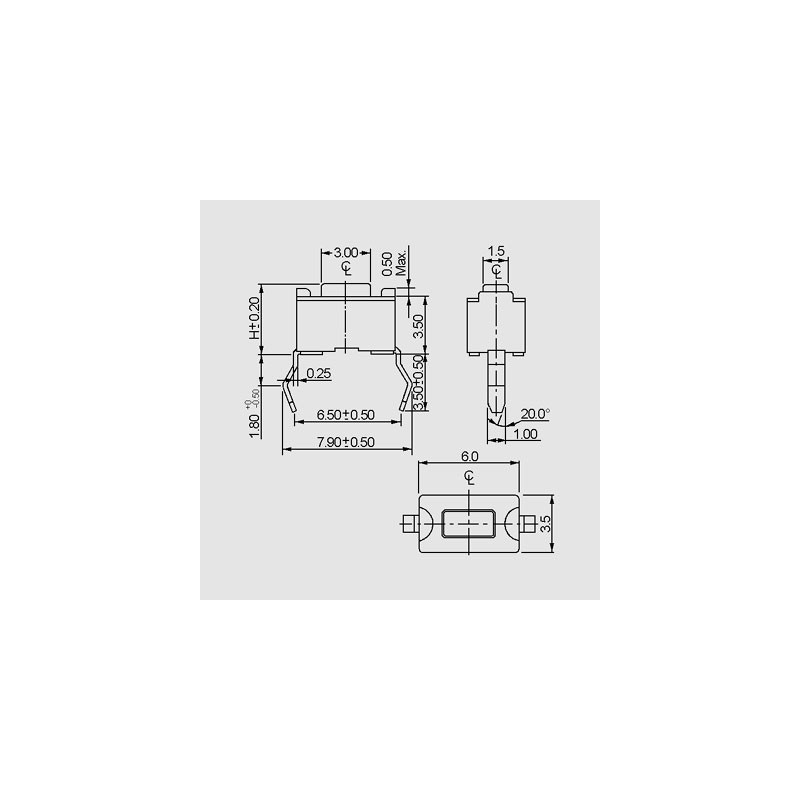

dimensions

LPT 32 N

12084 LPT 32 N DTS-32N-V-B DTS-32N-V-B dimensions: 3.5x6mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* prevents formed terminal pins (snap-in) falling out* for PCB assembly* particularly small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching current, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 50'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* switching type: 1 NΩ contact* operating force: 1.6N* operating path: 0.25mm+0,2, -0,1* insulation material:thermoplastic nylon, UL94V-0* contact surface: spring Steel, silver-plated* solder temperature and duration, max.: 260°C for 5s* operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTS-32N-V-B
D x L [mm] 3,5 x 6
Operating force [N] 1,6
Data Sheet

Unit price

0,112 €

Stock: 285
Next incoming goods:
CW 17/2025
1.080 units

Further delivery:
CW 33/2025

Minimum order quantity 1 to 15 units or multiples of 135 plus 0 to 15 .
