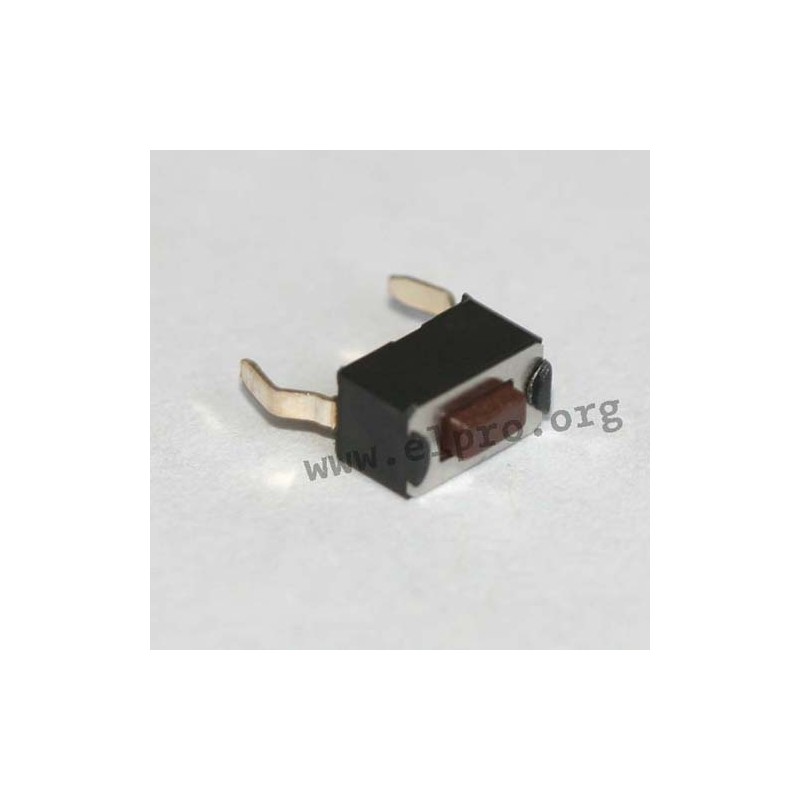

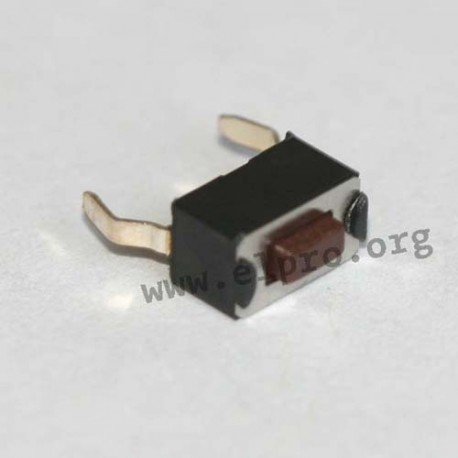

LPT 31 N

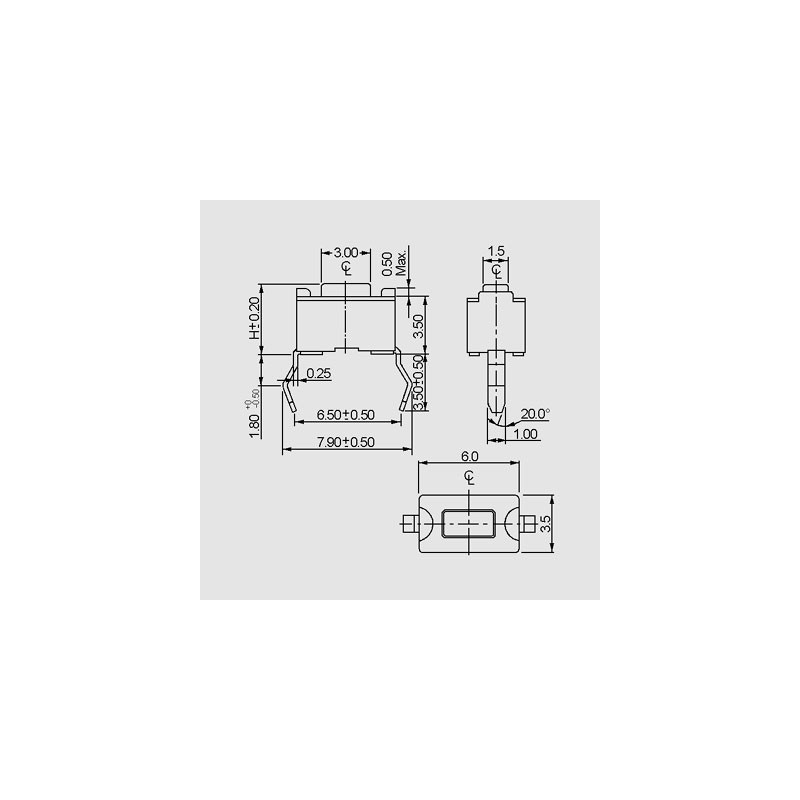

dimensions: 3.5x6mm, 1 NΩ

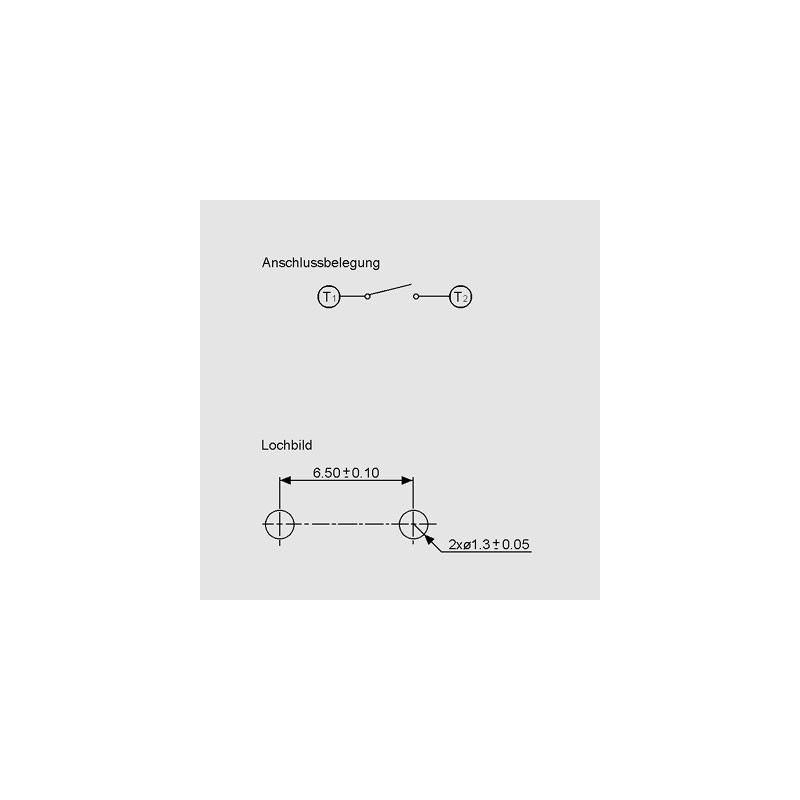

• single pole input key with an SPST-NΩ contact
• prevents formed terminal pins (snap-in) falling out
• for PCB assembly
• particularly small dimensions
• data and signal technology, measuring and controlling, membrane keyboards
• switching voltage, max.: 12V DC
• switching current, max.: 50mA
• test voltage, 1min.: 250V AC
• operating life with switching capacity: 50'000 operations
• contact resistance, max.: 100mΩ
• insulation resistance, min.: 100MΩ/500V DC
• switching type: 1 NΩ contact
• operating force: 1.6N
• operating path: 0.25mm+0,2, -0,1
• insulation material:thermoplastic nylon, UL94V-0
• contact surface: spring Steel, silver-plated
• solder temperature and duration, max.: 260°C for 5s
• operating temperature: -25...+70°C

LPT 31 N

LPT 31 N

12082 LPT 31 N DTS-31N-V-B DTS-31N-V-B dimensions: 3.5x6mm, 1 NΩ. • single pole input key with an SPST-NΩ contact• prevents formed terminal pins (snap-in) falling out• for PCB assembly• particularly small dimensions• data and signal technology, measuring and controlling, membrane keyboards• switching voltage, max.: 12V DC• switching current, max.: 50mA• test voltage, 1min.: 250V AC• operating life with switching capacity: 50'000 operations• contact resistance, max.: 100mΩ• insulation resistance, min.: 100MΩ/500V DC• switching type: 1 NΩ contact• operating force: 1.6N• operating path: 0.25mm+0,2, -0,1• insulation material:thermoplastic nylon, UL94V-0• contact surface: spring Steel, silver-plated• solder temperature and duration, max.: 260°C for 5s• operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTS-31N-V-B
D x L [mm] 3,5 x 6
Operating force [N] 1,6
Data Sheet

Unit price

0,111 €

Stock: 270
Next incoming goods:
CW 02/2025
945 units

Further delivery:
CW 21/2025

Minimum order quantity 135 units or
multiples of 135.
