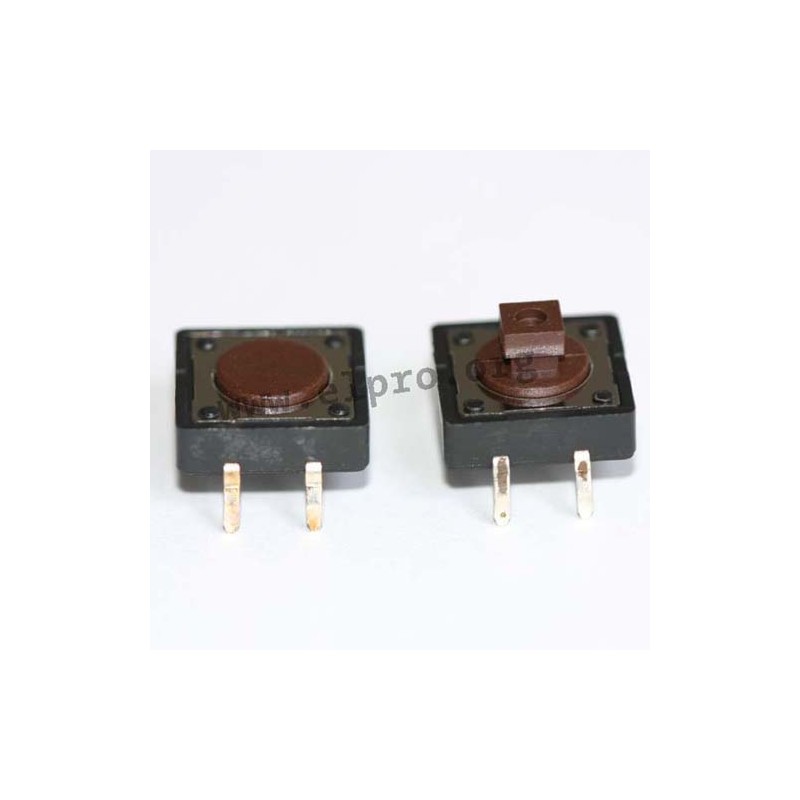

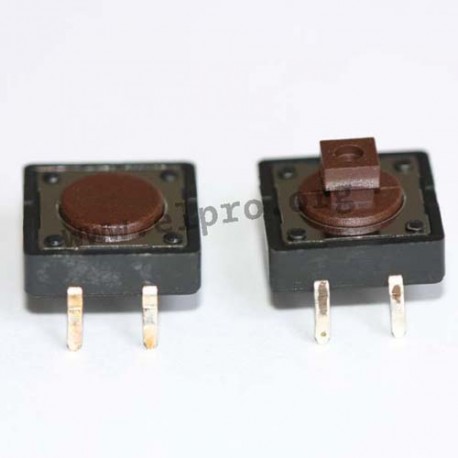

LPT 24 N

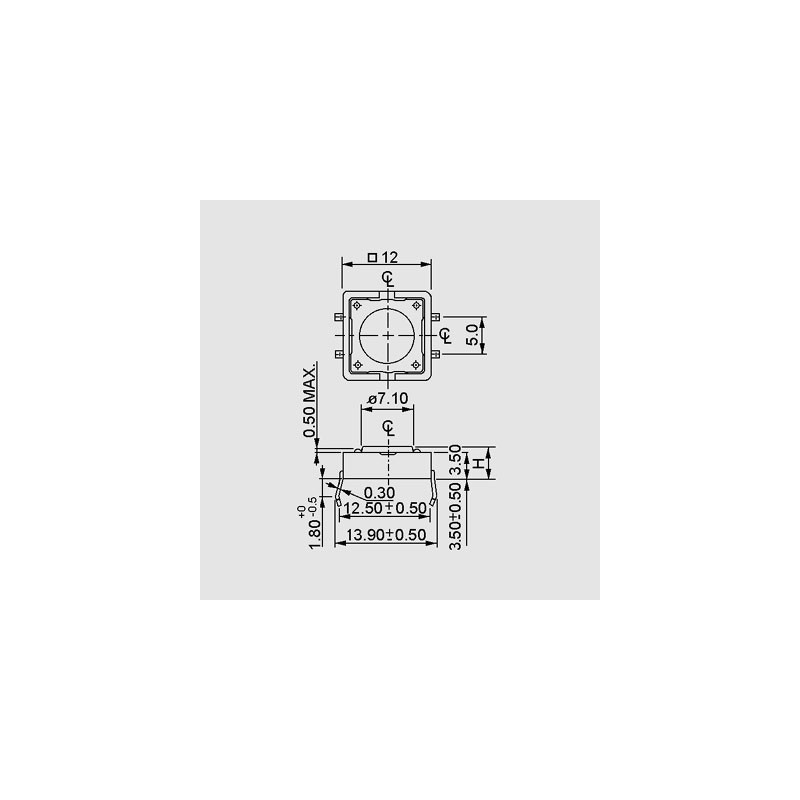

dimensions: 12x12mm, 1 NΩ

* single pole input key with an SPST-NΩ contact
* prevents formed terminal pins (snap-in) falling out
* for PCB assembly
* particularly small dimensions
* data and signal technology, measuring and controlling, membrane keyboards
* switching voltage, max.: 12V DC
* switching current, max.: 50mA
* test voltage, 1min.: 250V AC
* operating life with switching capacity: 200'000 operations
* contact resistance, max.: 100mΩ
* insulation resistance, min.: 100MΩ/500V DC
* switching type: 1 NΩ contact
* operating force: 1.6N
* operating path: 0.35mm+0.2, -0.1
* insulation material: thermoplastic nylon, UL94V-0
* contact surface: bronze, silver-plated
* solder temperature and duration, max.: 260°C for 5s
* operating temperature: -25...+70°C
LPT 21 N and LPT 24 N

LPT 24 N

12078 LPT 24 N DTS-24N-V DTS-24N-V dimensions: 12x12mm, 1 NΩ. * single pole input key with an SPST-NΩ contact* prevents formed terminal pins (snap-in) falling out* for PCB assembly* particularly small dimensions* data and signal technology, measuring and controlling, membrane keyboards* switching voltage, max.: 12V DC* switching current, max.: 50mA* test voltage, 1min.: 250V AC* operating life with switching capacity: 200'000 operations* contact resistance, max.: 100mΩ* insulation resistance, min.: 100MΩ/500V DC* switching type: 1 NΩ contact* operating force: 1.6N* operating path: 0.35mm+0.2, -0.1* insulation material: thermoplastic nylon, UL94V-0* contact surface: bronze, silver-plated* solder temperature and duration, max.: 260°C for 5s* operating temperature: -25...+70°C

Specifications

manufacturer
Manufacturer's name DTS-24N-V
D x L [mm] 12 x 12
Operating force [N] 1,6
Data Sheet

Unit price

0,16 €

Stock: 1700
Next incoming goods:
CW 02/2025
1000 units

Further delivery:
CW 35/2025

Minimum order quantity 100 units or
multiples of 100.
