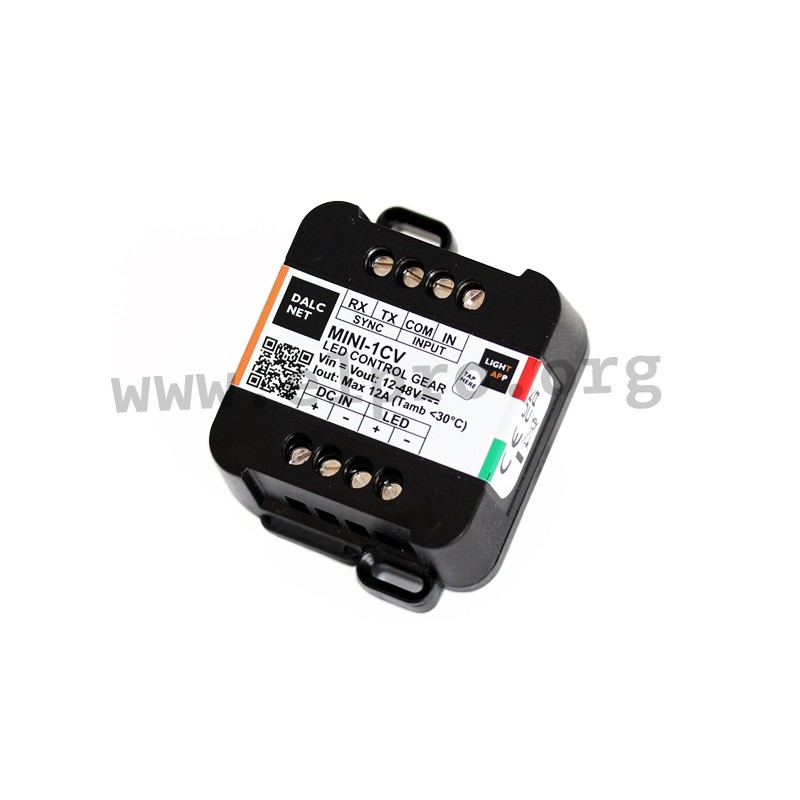

MINI-1CV

Dalcnet PWM dimmer series MINI

PWM dimming controllers in a plastic housing (IP20) with 576W, a constant voltage (CV), a push-dimm function, a logarithmic or linear dimming curve (0,1 to 100%), fading and soft power on/off. These flickerfree devices are suitable for LED switching power supplies, have an adjustable PWM frequency from 30 to 4000Hz and can be configured through IOS as well as Android compatible apps. They are available with a Casambi (MINI-1CV-CASAMBI) or DALI interface (MINI-1CV-DALI) and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Dalcnet series: MINI-1CV, MINI-1CV-DALI and MINI-1CV-CASAMBI.

  • single output
  • output: 480 to 576W
  • input voltage: 12 to 48V DC
  • operating temperature: -10 to +60°C
  • dimensions: 44x57x25mm
  • weight: 47g resp. 44g (MINI-1CV-CASAMBI)

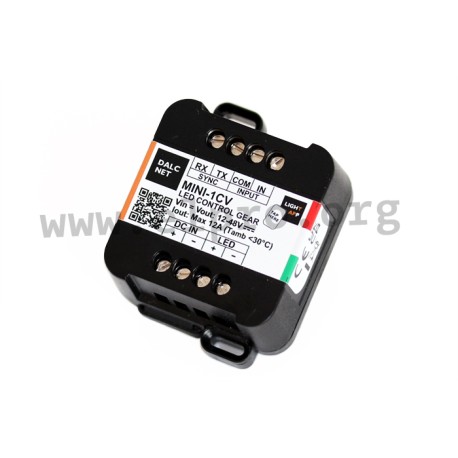

MINI-1CV, Dalcnet PWM dimmer, 576W, IP20, constant voltage, MINI series

MINI-1CV

242853 MINI-1CV MINI-1CV Dalcnet PWM dimmer series MINI. PWM dimming controllers in a plastic housing (IP20) with 576W, a constant voltage (CV), a push-dimm function, a logarithmic or linear dimming curve (0,1 to 100%), fading and soft power on/off. These flickerfree devices are suitable for LED switching power supplies, have an adjustable PWM frequency from 30 to 4000Hz and can be configured through IOS as well as Android compatible apps. They are available with a Casambi (MINI-1CV-CASAMBI) or DALI interface (MINI-1CV-DALI) and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Dalcnet series: MINI-1CV, MINI-1CV-DALI and MINI-1CV-CASAMBI. single output output: 480 to 576W input voltage: 12 to 48V DC operating temperature: -10 to +60°C dimensions: 44x57x25mm weight: 47g resp. 44g (MINI-1CV-CASAMBI)

Specifications

manufacturer
Manufacturer's name MINI-1CV
Output current [A] 12
Output power [W] 576
Data Sheet

Unit price

28,09 €

Volume discounts

Quantity Unit price
100 + 25,59 €
25 + 26,19 €

Stock: 34
Further delivery:
CW 04/2025
