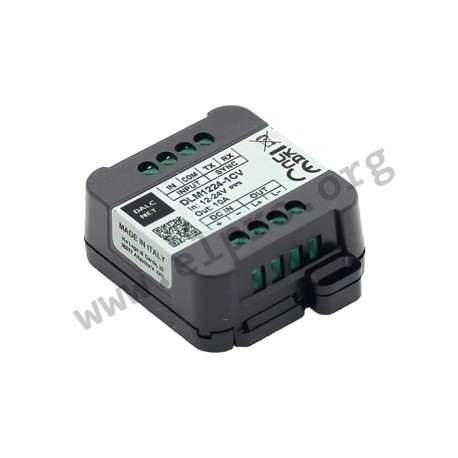

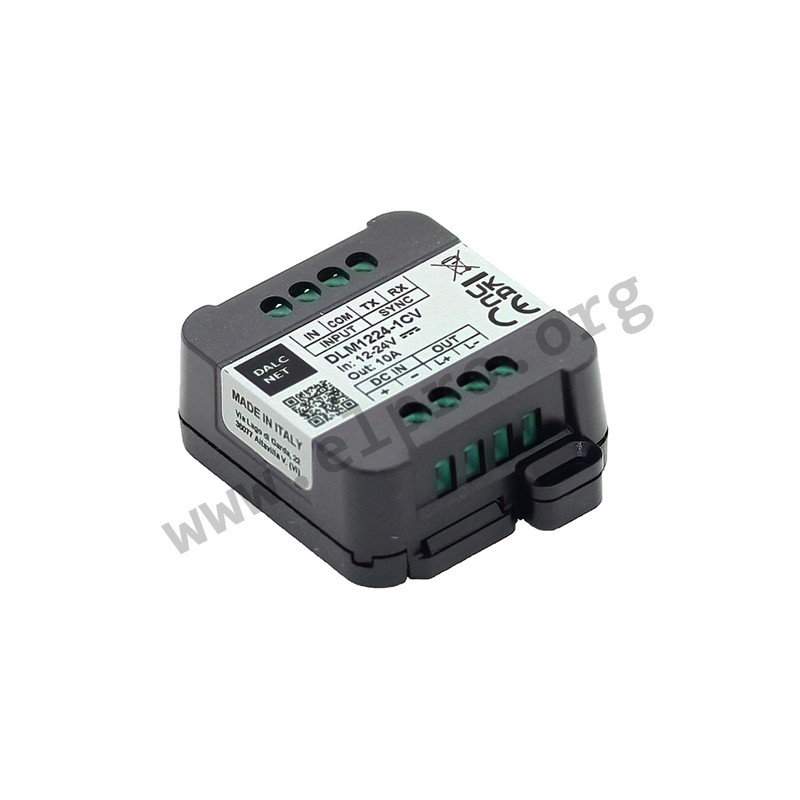

DLM1224-1CV

Dalcnet PWM dimmer series DLM

PWM dimming controllers in a plastic housing (IP20) with 312W, a constant voltage (CV), an optimized output curve, a memory function and a PWM frequency of 300Hz. These devices are suitable for LED drivers, are dimmable in a range between 0,1 to 100% and comply with EN61347-1 as well as EN55032. They have a 3 in 1 dimming function (analog 0 to 10V, 10kOhm potentiometer and normally-open push-button) as well as a DMX interface (DLM1248-1CV-DMX) and can be configured for a minimum dimming value and fade in/out. We offer the following types of this Dalcnet series: DLM1224-1CV and DLM1248-1CV-DMX.

  • single output
  • output: 240 to 312W
  • input voltage: 12 to 24V DC (DLM1224_) resp. 12 to 48V DC (DLM1248_)
  • operating temperature: -10 to +40°C
  • dimensions: 4x57x19mm (DLM1224_) resp. 44x57x25mm (DLM1248_)
  • weight: 35g (DLM1224_) resp. 43g (DLM1248_)
DLM1224-1CV, Dalcnet PWM dimmer, 312W, IP20, constant voltage, DLM series

DLM1224-1CV

242856 DLM1224-1CV DLM1224-1CV Dalcnet PWM dimmer series DLM. PWM dimming controllers in a plastic housing (IP20) with 312W, a constant voltage (CV), an optimized output curve, a memory function and a PWM frequency of 300Hz. These devices are suitable for LED drivers, are dimmable in a range between 0,1 to 100% and comply with EN61347-1 as well as EN55032. They have a 3 in 1 dimming function (analog 0 to 10V, 10kOhm potentiometer and normally-open push-button) as well as a DMX interface (DLM1248-1CV-DMX) and can be configured for a minimum dimming value and fade in/out. We offer the following types of this Dalcnet series: DLM1224-1CV and DLM1248-1CV-DMX. single output output: 240 to 312W input voltage: 12 to 24V DC (DLM1224_) resp. 12 to 48V DC (DLM1248_) operating temperature: -10 to +40°C dimensions: 4x57x19mm (DLM1224_) resp. 44x57x25mm (DLM1248_) weight: 35g (DLM1224_) resp. 43g (DLM1248_)

Specifications

manufacturer
Manufacturer's name DLM1224-1CV
Output current [A] 10
Output power [W] 240
Data Sheet

Unit price

19,59 €

Volume discounts

Quantity Unit price
100 + 17,89 €
25 + 18,29 €

Stock: 108
Next incoming goods:
CW 04/2025
50 units

Further delivery:
CW 04/2025
