FM 25640 B-G

Cypress FRAM series FM25

  • nonvolatile ferroelectric memory modules in a SO8 housing
  • replacement for SPI-EEPROMs or SPI-Flash
  • with up to 1014 read/write cycles and a high reliability (38 years data retention at +75°C)
  • write speed is up to 500 times faster than conventional EEPROMs
  • hardware and software protection
  • supply voltage: 4,5 to 5,5V
  • operating temperature: -40 to +85°C

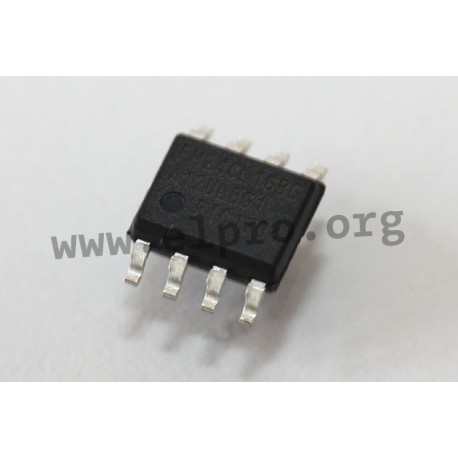

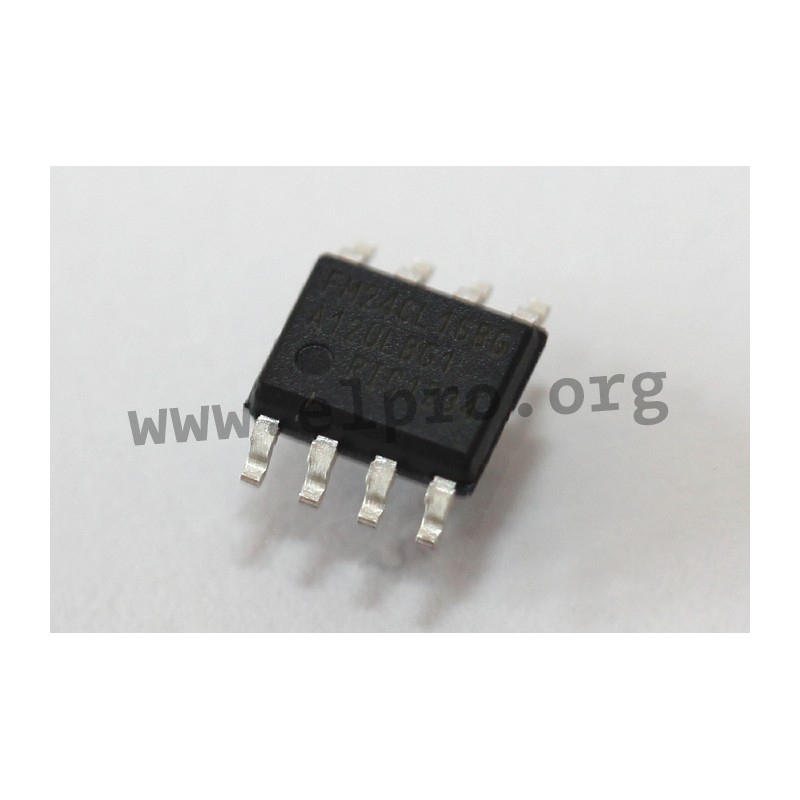

SO8 housing

FM 25640 B-G

106251 FM 25640 B-G FM25640B-G FM25640B-G Cypress FRAM series FM25. nonvolatile ferroelectric memory modules in a SO8 housing replacement for SPI-EEPROMs or SPI-Flash with up to 1014 read/write cycles and a high reliability (38 years data retention at +75°C) write speed is up to 500 times faster than conventional EEPROMs hardware and software protection supply voltage: 4,5 to 5,5V operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name FM25640B-G
Case SO8
Organisation 8kx8
Frequency [MHz] 20
Data Sheet

Unit price

1,70 €

Stock: 339
Further delivery:
CW 02/2025

Minimum order quantity 5 units or
multiples of 5.
