> Passive elements>Relays>Solid state relays>Crydom solid state relays, 25 to 95A, 600V, thyristor output, panel mount, PM22 series>PM22 60D50V

Manufacturers

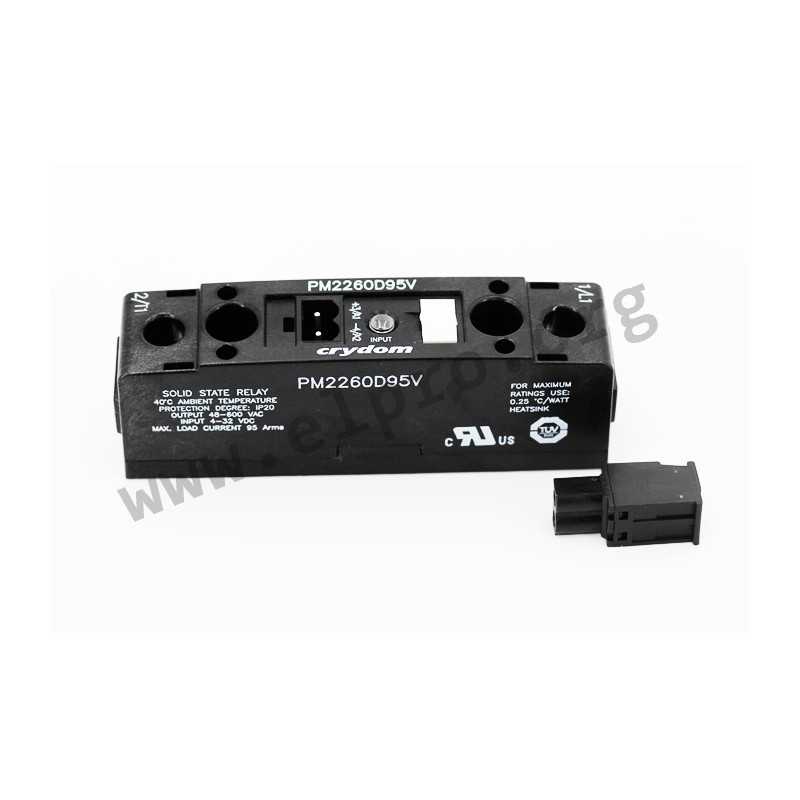

PM22 60D50V

electronic solid state relays, 50 A

* housing: panel mount
* for alternating voltage
* thyristor output
* series PM22 60_  by Crydom
* zero crossing circuit
* 4 kV insulation voltage
* operating temperature:up -40 to +80°C

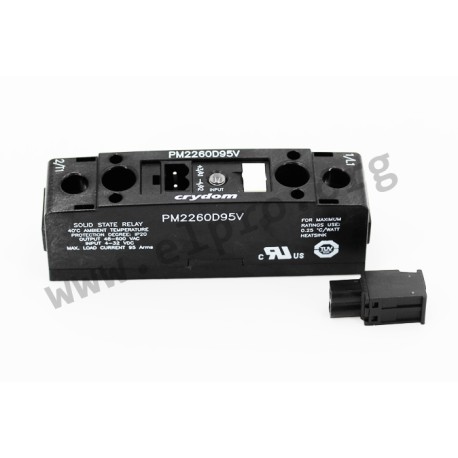

PM2260D50V, Crydom solid state relays, 25 to 95A, 600V, thyristor output, panel mount, PM22 series

PM22 60D50V

107320 PM22 60D50V PM2260D50V PM2260D50V electronic solid state relays, 50 A. * housing: panel mount* for alternating voltage* thyristor output* series PM22 60_  by Crydom* zero crossing circuit* 4 kV insulation voltage* operating temperature:up -40 to +80°C

Specifications

manufacturer
Manufacturer's name PM2260D50V
Non repetitive surge peak on-state current [A] 750
Switch positions zero-voltage...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 50
Control voltage [V] 4...32
Load voltage [V] 48...600
Data Sheet

Unit price

77,49 €

Stock: 10
Further delivery:
CW 18/2025
