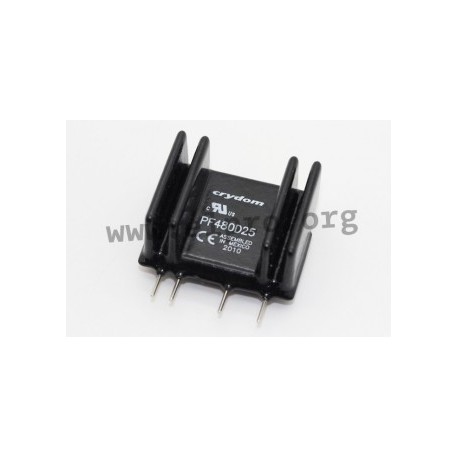

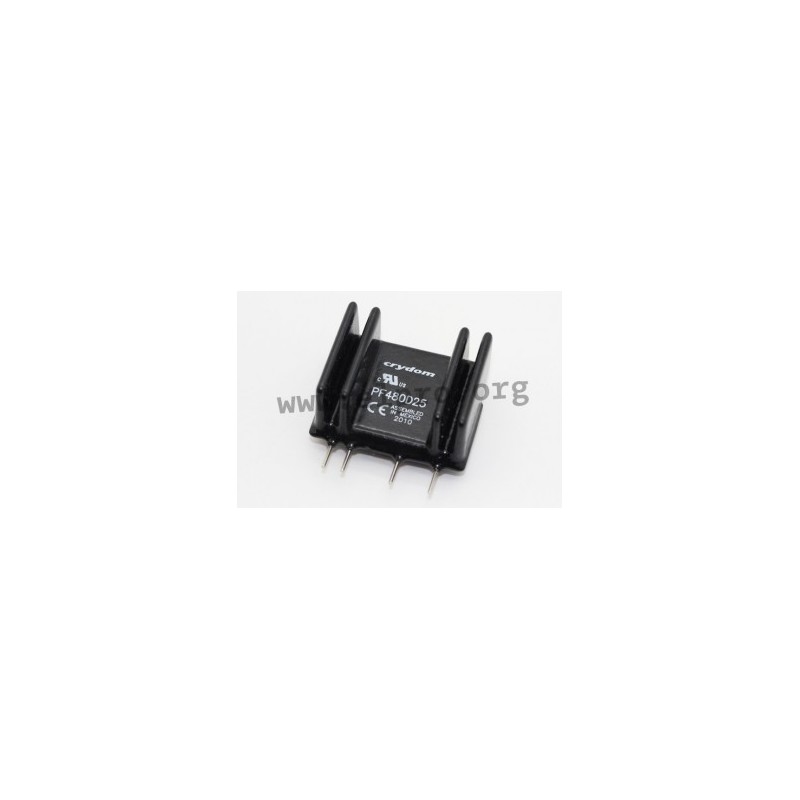

PF 380D 25

electronic solid state relays, 25A

• SIP/SIL housing
• for alternating voltage
• thyristor output
• series PF by crydom
• 4 kV insulation voltage
• zero crossing circuit
• integrated heatsink
• operating temperature:up -30 to +80°C

PF380D25, Crydom solid state relays, 25A, 280 to 660V, thyristor output, SIL housing, PF and SPF series

PF 380D 25

38174 PF 380D 25 PF380D25 PF380D25 electronic solid state relays, 25A. • SIP/SIL housing• for alternating voltage• thyristor output• series PF by crydom• 4 kV insulation voltage• zero crossing circuit• integrated heatsink• operating temperature:up -30 to +80°C

Specifications

manufacturer
Manufacturer's name PF380D25
Non repetitive surge peak on-state current [A] 250
Switch positions zero-voltage...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 25
Control voltage [V] 4...15
Load voltage [V] 48...530
Data Sheet

Unit price

36,59 €

Stock: 50
Further delivery:
CW 14/2025
