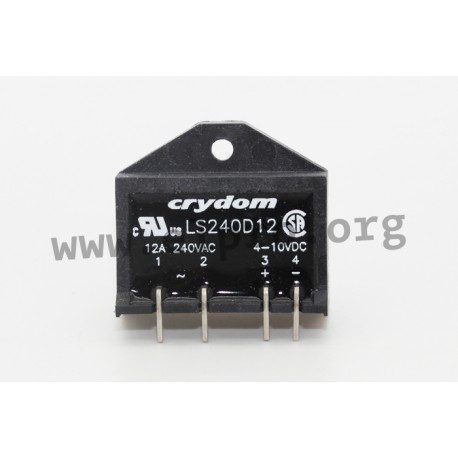

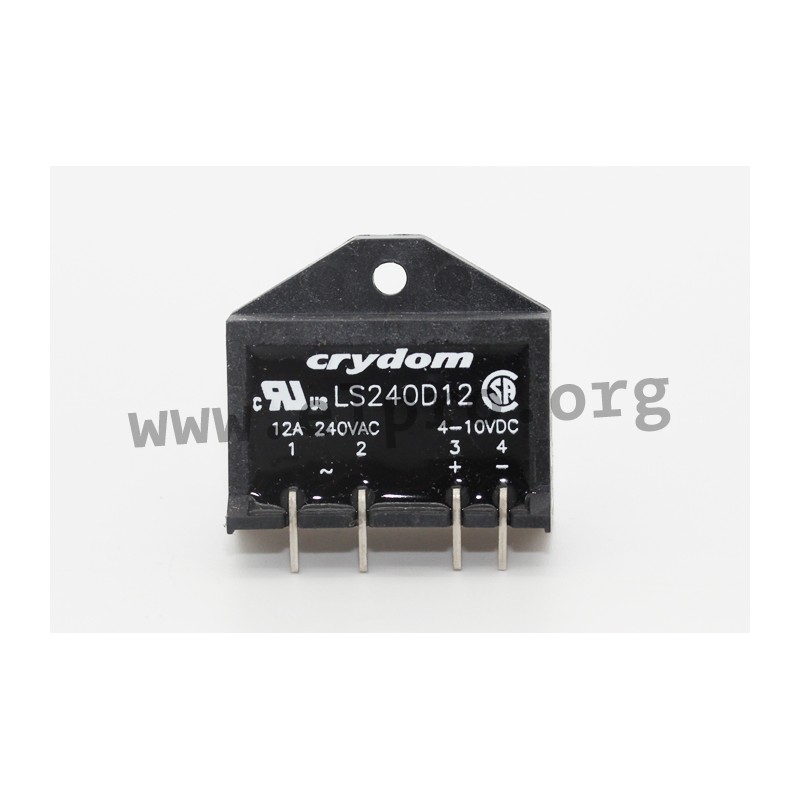

LS 240 D12

Electronic solid state relays for alternating voltage

* thyristor output
* isolation voltage 2,5kV
* zero crossing circuit
* operating temperature range -30 to +80°C
* by Sensata/Crydom

LS240D12, Crydom solid state relays, 8 to 12A, 280V, thyristor output, SIL housing, LS series

LS 240 D12

111285 LS 240 D12 LS240D12 LS240D12 Electronic solid state relays for alternating voltage. * thyristor output* isolation voltage 2,5kV* zero crossing circuit* operating temperature range -30 to +80°C* by Sensata/Crydom

Specifications

manufacturer
Manufacturer's name LS240D12
Peak forward surge current [A] 120
Max. effective on-state current [A] 12
Max. off-state output voltage [V] 600
Control voltage [V] 4...10
Load voltage [V] 24...280
Data Sheet

Unit price

32,79 €

Stock: 1
Next incoming goods:
CW 49/2024
30 units

Further delivery:
CW 24/2025
