H16WD 6025G

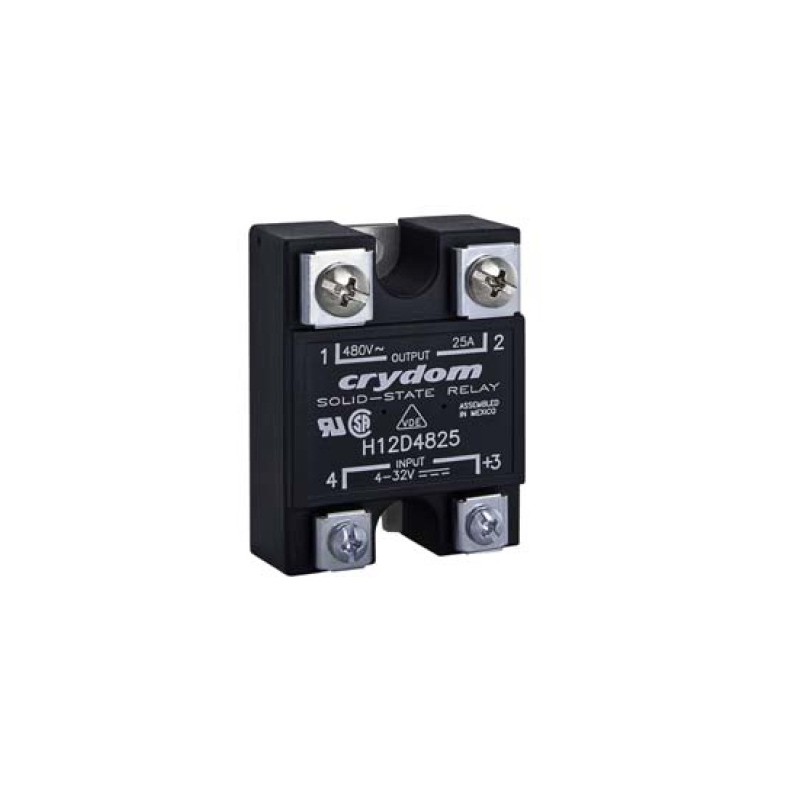

Sensata/Crydom solid state relay series H12WD and H16WD

  • electronic solid state relays for AC voltages
  • with a thyristor output and a zero crossing circuit
  • in a Hockey-Puck housing
  • isolation voltage: 4kV
  • operating temperature: -40 to +80°C (H12WD_) resp. -30 to +80°C (H16WD_)
H16WD 6025G

H16WD 6025G

39213 H16WD 6025G H16WD6025G H16WD6025G Sensata/Crydom solid state relay series H12WD and H16WD. electronic solid state relays for AC voltages with a thyristor output and a zero crossing circuit in a Hockey-Puck housing isolation voltage: 4kV operating temperature: -40 to +80°C (H12WD_) resp. -30 to +80°C (H16WD_)

Specifications

manufacturer
Manufacturer's name H16WD6025G
Non repetitive surge peak on-state current [A] 250
Max. off-state output voltage [V] 1600
Forward current, max. [A] 25
Control voltage [V] 4...32
Load voltage [V] 48...660
Data Sheet

Unit price

78,89 €

Stock: 18
Further delivery:
CW 12/2025
