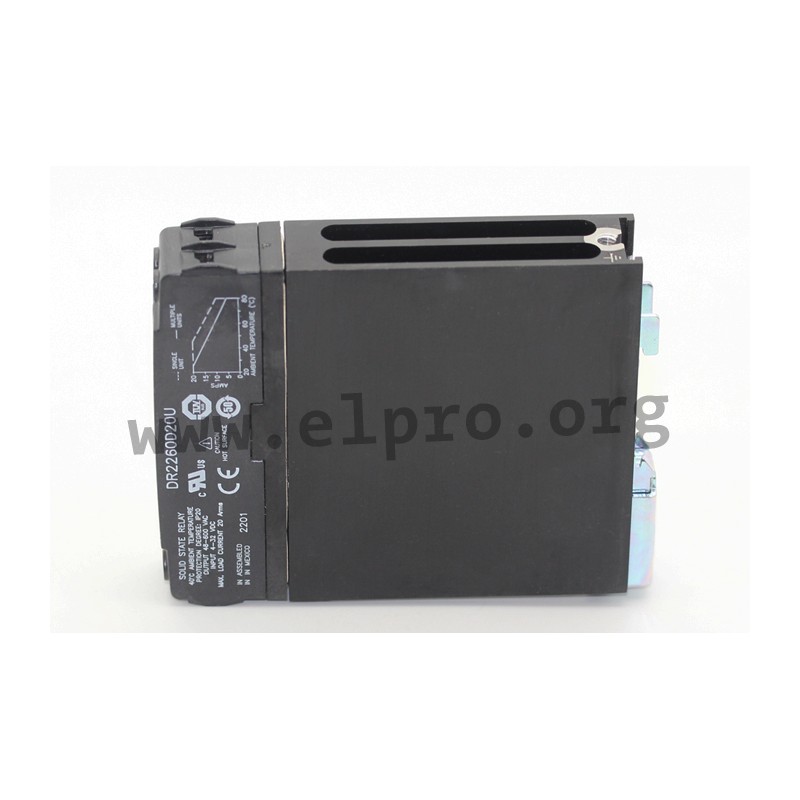

DR22 60A20U

electronic solid state relays, 20 A

* housing: for DIN rail
* for alternating voltage
* thyristor output
* series DR22 60_  by Crydom
* zero crossing circuit
* 4 kV insulation voltage
* operating temperature:up -40 to +80°C

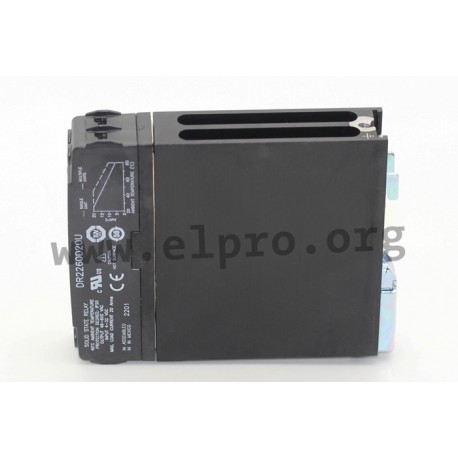

DR2260A20U, Crydom solid state relays, 20 to 35A, 600V, thyristor output, DIN rail, DR22 series

DR22 60A20U

107309 DR22 60A20U DR2260A20U DR2260A20U electronic solid state relays, 20 A. * housing: for DIN rail* for alternating voltage* thyristor output* series DR22 60_  by Crydom* zero crossing circuit* 4 kV insulation voltage* operating temperature:up -40 to +80°C

Specifications

manufacturer
Manufacturer's name DR2260A20U
Non repetitive surge peak on-state current [A] 300
Switch positions zero-voltage...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 20
Control voltage [V] 90...280
Load voltage [V] 48...600
Data Sheet

Unit price

74,39 €

Stock: 10
Further delivery:
CW 24/2025
