CX 480 D5

Sensata/Crydom solid state relay series CX and MCX

  • electronic solid state relays
  • with a thyristor output and a zero crossing circuit (MCX_)

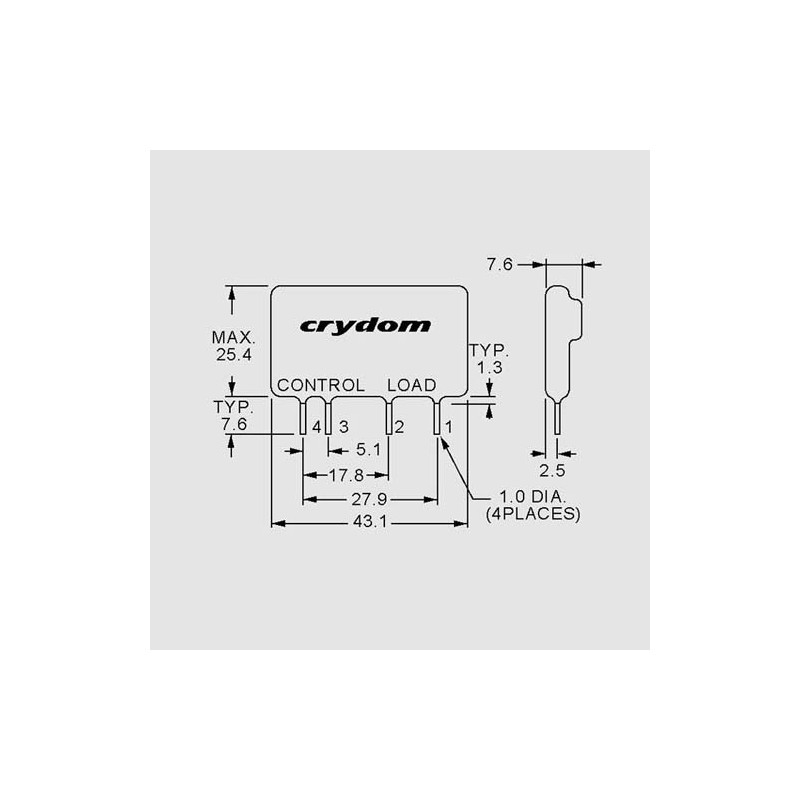

  • in a SIL housing
  • suitable for PCB mounting
  • isolation voltage: 4kV
  • operating temperature: -20 to +80°C (MCX_) resp. -30 to +80°C (CX_)

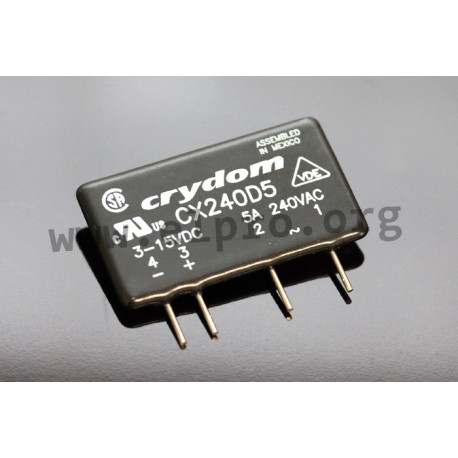

Crydom CX series

CX 480 D5

26623 CX 480 D5 CX480D5 CX480D5 Sensata/Crydom solid state relay series CX and MCX. electronic solid state relays  with a thyristor output and a zero crossing circuit (MCX_) in a SIL housing suitable for PCB mounting isolation voltage: 4kV operating temperature: -20 to +80°C (MCX_) resp. -30 to +80°C (CX_)

Specifications

manufacturer
Manufacturer's name CX480D5
Non repetitive surge peak on-state current [A] 250
Max. off-state output voltage [V] 1200
Forward current, max. [A] 5
Control voltage [V] 4...15
Load voltage [V] 48...660
Data Sheet

Unit price

27,29 €

Stock: 48
Further delivery:
CW 06/2025
