CWD 48125

Crydom solid state relay series CW48 and HD48

  • electronic solid state relays for AC voltages
  • in a hockey puck housing
  • partly with a fingerproof cover (CW_)
  • random switching types (HD_-10) for inductive loads as well as zero-voltage switching versions (CW_/HD_) for capacitive and resistive loads
  • isolation voltage: 4kV
  • operating temperature: -40 to +80°C

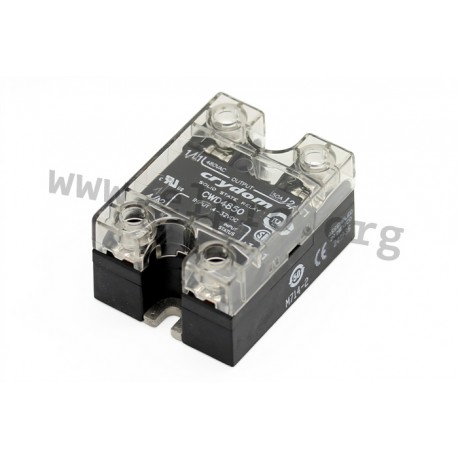

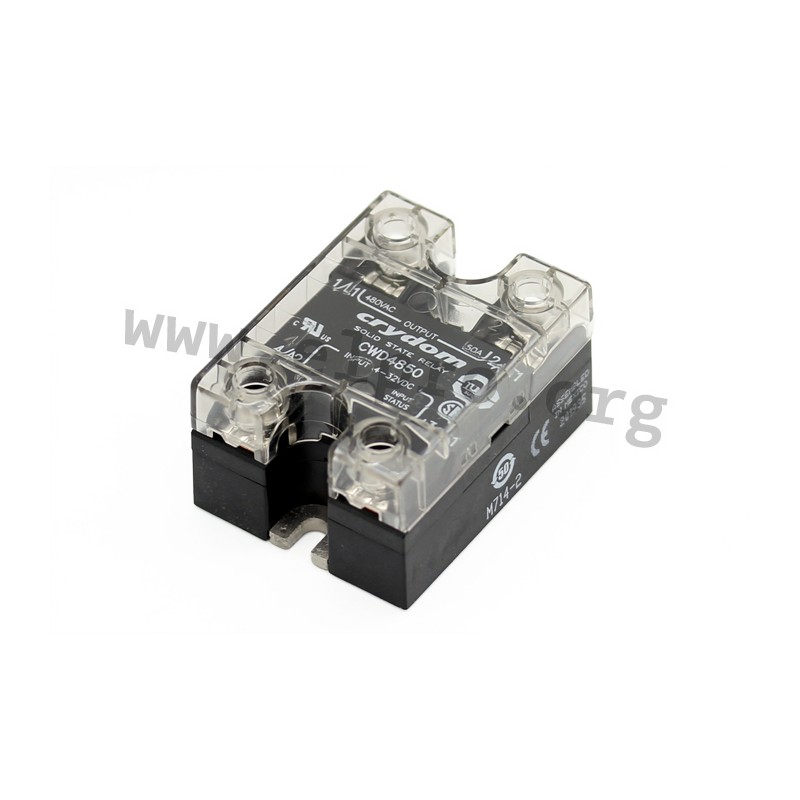

CWD48125, Crydom solid state relays, 10 to 125A, 660V, thyristor output, CW48 and HD48 series

CWD 48125

26656 CWD 48125 CWD48125 CWD48125 Crydom solid state relay series CW48 and HD48. electronic solid state relays for AC voltages in a hockey puck housing partly with a fingerproof cover (CW_) random switching types (HD_-10) for inductive loads as well as zero-voltage switching versions (CW_/HD_) for capacitive and resistive loads isolation voltage: 4kV operating temperature: -40 to +80°C

Specifications

manufacturer
Manufacturer's name CWD48125
Non repetitive surge peak on-state current [A] 2000
Switch positions zero-voltage...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 125
Control voltage [V] 4...32
Load voltage [V] 48...660
Data Sheet

Unit price

150,89 €

Stock: 2
Further delivery:
CW 06/2025
