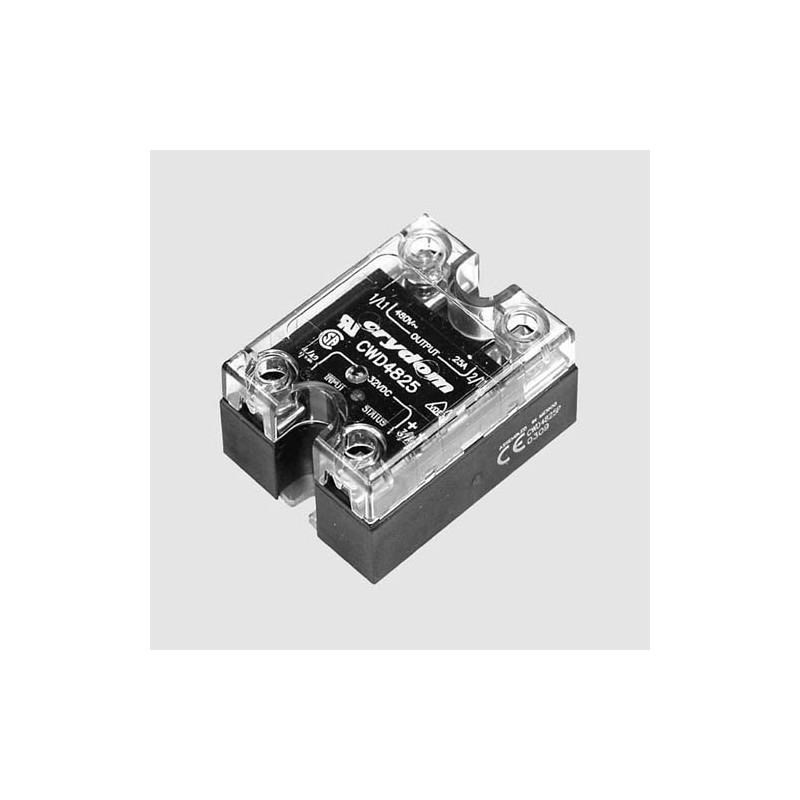

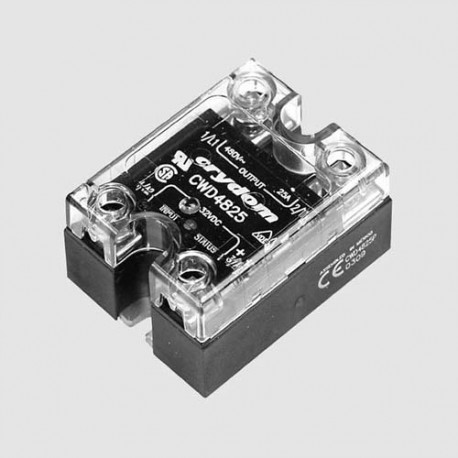

CWD 4825

Crydom solid state relay series CW48 and HD48

  • electronic solid state relays for AC voltages
  • in a hockey puck housing
  • partly with a fingerproof cover (CW_)
  • random switching types (HD_-10) for inductive loads as well as zero-voltage switching versions (CW_/HD_) for capacitive and resistive loads
  • isolation voltage: 4kV
  • operating temperature: -40 to +80°C
CWD 4825

CWD 4825

26645 CWD 4825 CWD4825 CWD4825 Crydom solid state relay series CW48 and HD48. electronic solid state relays for AC voltages in a hockey puck housing partly with a fingerproof cover (CW_) random switching types (HD_-10) for inductive loads as well as zero-voltage switching versions (CW_/HD_) for capacitive and resistive loads isolation voltage: 4kV operating temperature: -40 to +80°C

Specifications

manufacturer
Manufacturer's name CWD4825
Non repetitive surge peak on-state current [A] 600
Switch positions zero-voltage...
Max. off-state output voltage [V] 1200
Forward current, max. [A] 25
Control voltage [V] 4...32
Load voltage [V] 48...660

Unit price

72,59 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 20 units or
multiples of 20.
