> Passive elements>Relays>Solid state relays>Crydom solid state relays, 10 to 90A, 280V, thyristor output, CSD/CSW/A24/D24/MCPC series>MCPC2450C

Manufacturers

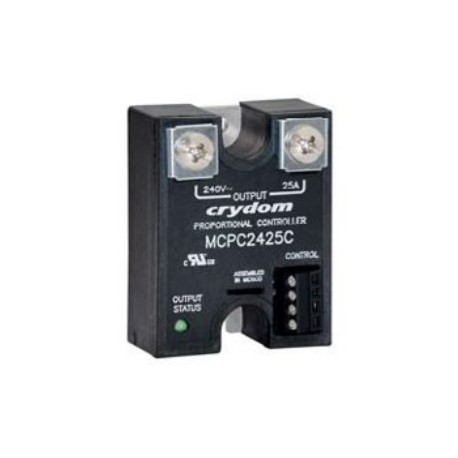

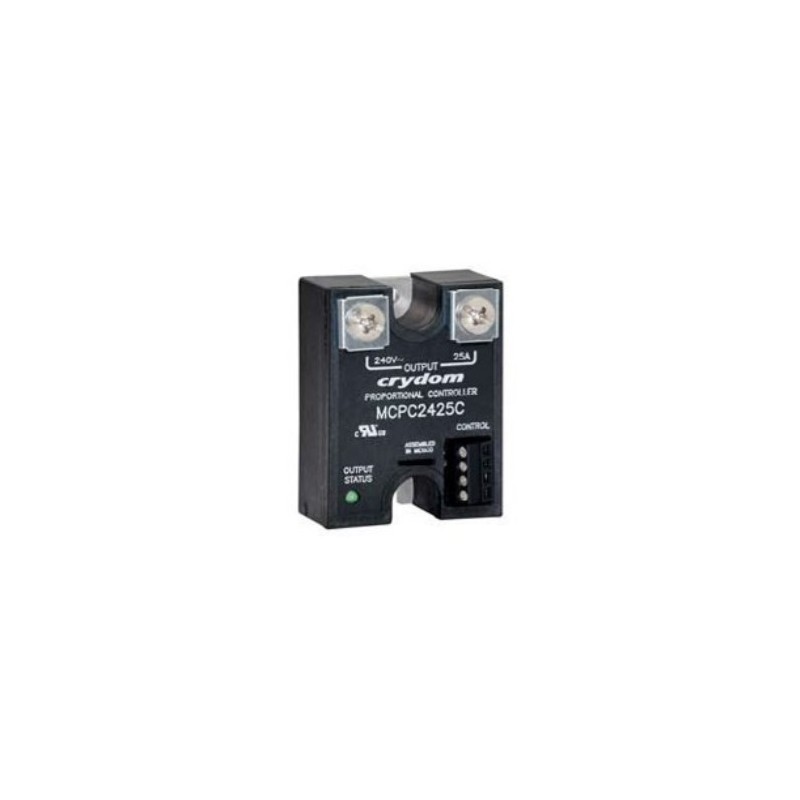

MCPC2450C

Sensata/Crydom solid state relay series CSD/CSW/D24/MCPC

  • solid state relays in a hockey puck housing
  • suitable for AC voltages
  • with a thyristor output
  • random switching R-Version is recommended for inductive loads
  • the zero-voltage switching Z-version is recommended for capacitive and resistive loads
  • isolation voltage: 4kV
  • operating temperature: -40 to +85°C
MCPC2450C, Crydom solid state relays, 10 to 90A, 280V, thyristor output, CSD/CSW/D24/MCPC series

MCPC2450C

238277 MCPC2450C MCPC2450C Sensata/Crydom solid state relay series CSD/CSW/D24/MCPC. solid state relays in a hockey puck housing suitable for AC voltages with a thyristor output random switching R-Version is recommended for inductive loads the zero-voltage switching Z-version is recommended for capacitive and resistive loads isolation voltage: 4kV operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name MCPC2450C
Non repetitive surge peak on-state current [A] 625
Max. off-state output voltage [V] 600
Forward current, max. [A] 50
Control voltage [V] 0...10
Zero-Voltage Switching [V] 180...280
Data Sheet

Unit price

133,19 €

Stock: 10
Further delivery:
CW 24/2025
