> Passive elements>Potentiometers>Trimmer potentiometers>Copal trimmer potentiometers, 0,5W, vertical, FT-63ES series>FT-63 ES 1 M

Manufacturers

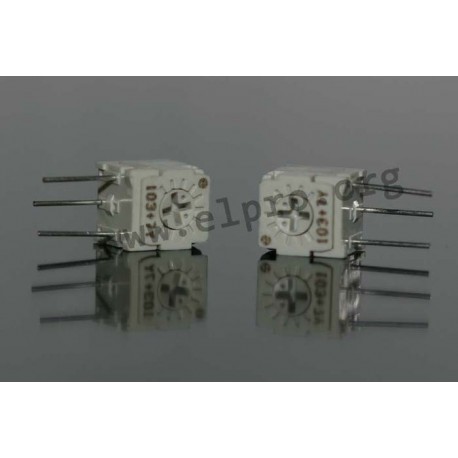

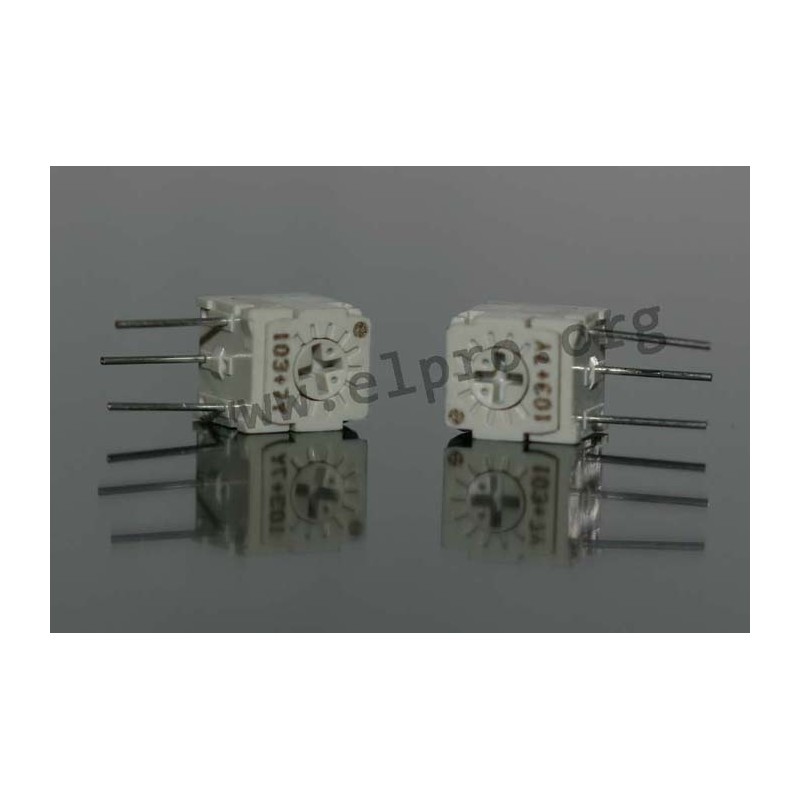

FT-63 ES 1 M

0.5W, vertical

* excellent high temperature, high voltage and current ratings
* for professional applications
* taper: linear
* power rating (TU = 70°C): 0.5W
* operating voltage, max.: 200V DC
* resistance tolerance: ±10%
* temperature range: -55...+125°C
FT-63 ES 1 M

FT-63 ES 1 M

27614 FT-63 ES 1 M FT-63ES-105 FT-63ES-105 0.5W, vertical. * excellent high temperature, high voltage and current ratings* for professional applications* taper: linear* power rating (TU = 70°C): 0.5W* operating voltage, max.: 200V DC* resistance tolerance: ±10%* temperature range: -55...+125°C

Specifications

manufacturer
Manufacturer's name FT-63ES-105
Resistance [Ω] 1M
Power, max. [W] 0,5
Data Sheet

Unit price

0,305 €

Stock: 718
Further delivery:
CW 14/2025

Minimum order quantity 1 to 23 units or multiples of 25 plus 0 to 23 .
