SAL-12-FS5-0.5

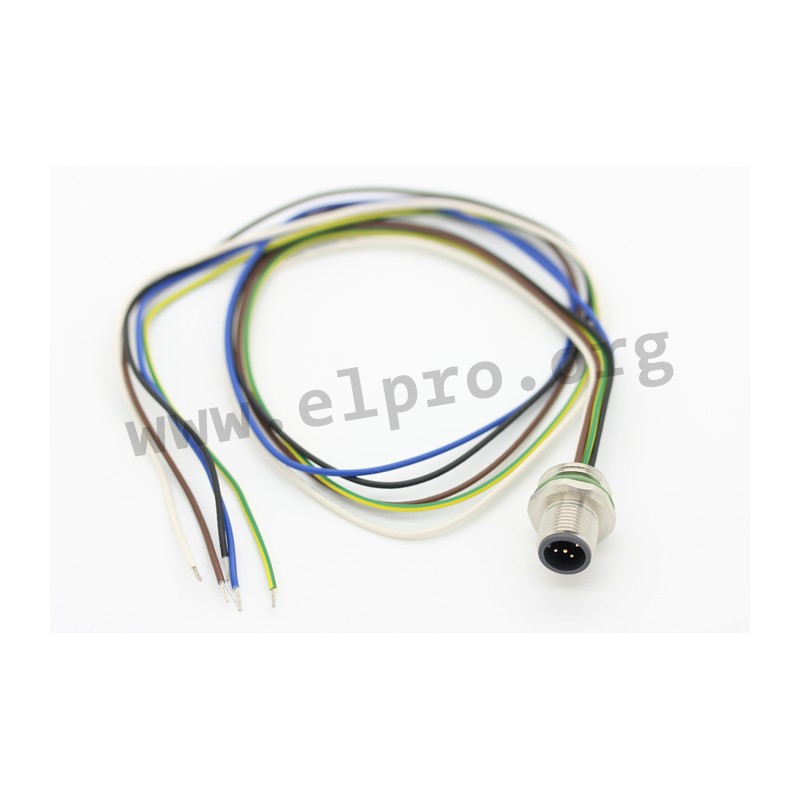

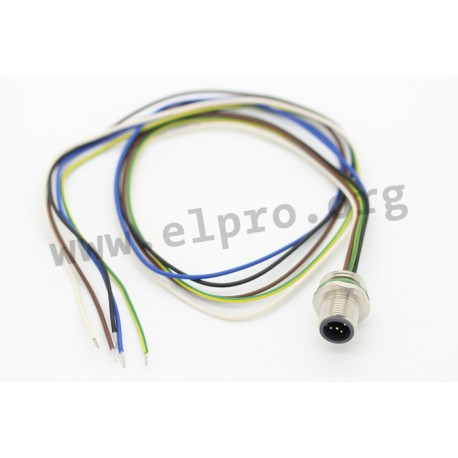

panel connector with screw locking SAL by Conec

• series: SAL
• cable mounting
• with wire
• cable connectors with screw locking
• cable PVC, AWG24, UL
• connection type: screw
• degree of protection: IP67 (in mated condition)
• temperature range: -30...+80°C
• insulation resistance, max.: >100MΩ
• mating cycles: >100
• material of contact: CuZn
• contact plating: Ni-plated, Au-plated
• by Conec

fixing thread M12x1
• cable length: 0,5m
• panel mounting with M16x1,5-thread (the fixing nuts must be ordered separately)
• rated voltage 4-pole: 250V
• rated voltage 5-pole: 60V
• rated current (40°C): 4A

the fixing nuts must be ordered separately

43-01010, Conec connectors, panel mounting, with screw locking, with wire, SAL series

SAL-12-FS5-0.5

41040 SAL-12-FS5-0.5 43-01010 43-01010 panel connector with screw locking SAL by Conec. • series: SAL• cable mounting• with wire• cable connectors with screw locking• cable PVC, AWG24, UL• connection type: screw• degree of protection: IP67 (in mated condition)• temperature range: -30...+80°C• insulation resistance, max.: >100MΩ• mating cycles: >100• material of contact: CuZn• contact plating: Ni-plated, Au-plated• by Conecfixing thread M12x1• cable length: 0,5m• panel mounting with M16x1,5-thread (the fixing nuts must be ordered separately)• rated voltage 4-pole: 250V• rated voltage 5-pole: 60V• rated current (40°C): 4Athe fixing nuts must be ordered separately

Specifications

manufacturer
Manufacturer's name 43-01010
Data Sheet

Unit price

8,69 €

Stock: 90
Further delivery:
CW 10/2025
