SAL-12-RSW5-5-K1A

connectors SAL with wire by Conec

• series: SAL, with wire
• molded
• cable mounting
• cable connectors with screw locking
• cable: TPU, UL, halogen-free, black, Li9Y11Y
• cable length: 2m, 5m oder 10m
• degree of protection: IP67 (in mated condition)
• temperature range: -30...+80°C
• insulation resistance, max.: >100MΩ
• mating cycles: >100
• material of contact: CuZn
• contact plating: Ni, Au-galvanized
• material of housing: TPU grey (UL94)
• by Conec

• fixing thread M12x1 / Ø 11mm
• wire cross section, max.: 0,34mm2
• rated voltage 4-pole: 250V
• rated voltage 5-pole: 60V
• rated current (40°C): 4A

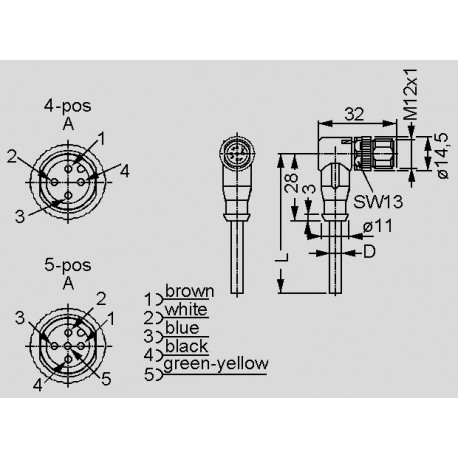

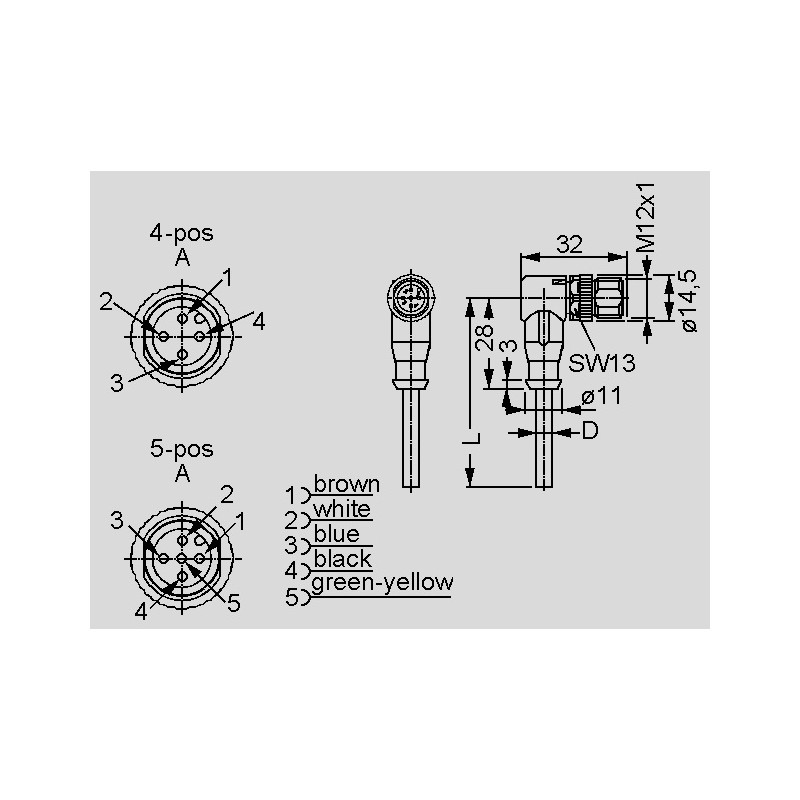

dimensions SAL-12-RSW_

SAL-12-RSW5-5-K1A

41029 SAL-12-RSW5-5-K1A 43-14454 43-14454 connectors SAL with wire by Conec. • series: SAL, with wire• molded• cable mounting• cable connectors with screw locking• cable: TPU, UL, halogen-free, black, Li9Y11Y• cable length: 2m, 5m oder 10m• degree of protection: IP67 (in mated condition)• temperature range: -30...+80°C• insulation resistance, max.: >100MΩ• mating cycles: >100• material of contact: CuZn• contact plating: Ni, Au-galvanized• material of housing: TPU grey (UL94)• by Conec• fixing thread M12x1 / Ø 11mm• wire cross section, max.: 0,34mm2• rated voltage 4-pole: 250V• rated voltage 5-pole: 60V• rated current (40°C): 4A

Specifications

manufacturer
Manufacturer's name 43-14454
Design male
Connection 90° angled
Number of poles 5
Cable length [m] 5
Data Sheet

Unit price

15,09 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 40 units or
multiples of 40.
