SAL-12-RSWC5-S-075

panel connectors with screw locking SAL by Conec

• series: SAL
• male connector
• connector locking system: screw
• connection type: screw, 90° angled
• pole: 5
• degree of protection (in mated condition): IP67
• temperature range: -30 to +85°C
• insulation resistance, max.: >100MΩ
• mating cycles: >100
• rated current (40°C): 4A
• material of contact: CuZn
• contact plating: Ni, Au-galvanized
• material of housing: PA6 GF (UL94)
• by Conec

thread M12x1
• screw termination, max.: 0.75mm2
• cable outlet, max.: 4 to 8mm
• rated voltage: 60V

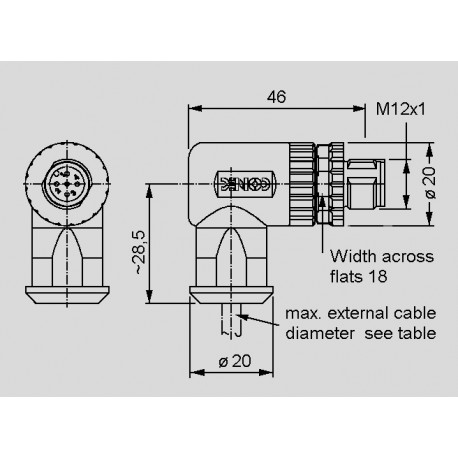

dimensions SAL-12-RSWC_

SAL-12-RSWC5-S-075

40978 SAL-12-RSWC5-S-075 43-00106 43-00106 panel connectors with screw locking SAL by Conec. • series: SAL• male connector• connector locking system: screw• connection type: screw, 90° angled• pole: 5• degree of protection (in mated condition): IP67• temperature range: -30 to +85°C• insulation resistance, max.: >100MΩ• mating cycles: >100• rated current (40°C): 4A• material of contact: CuZn• contact plating: Ni, Au-galvanized• material of housing: PA6 GF (UL94)• by Conecthread M12x1• screw termination, max.: 0.75mm2• cable outlet, max.: 4 to 8mm• rated voltage: 60V

Specifications

manufacturer
Manufacturer's name 43-00106
Data Sheet

Unit price

6,39 €

Stock: 0
Further delivery:
CW 07/2025

Minimum order quantity 80 units or
multiples of 80.
