SAL-8-RSWC4-S

panel connectors with screw locking SAL by Conec

• series: SAL
• connector locking system: screw
• connection type: screw
• degree of protection (in mated condition): IP67
• temperature range: -30...+85°C
• insulation resistance, max.: >100MΩ
• mating cycles: >100
• rated current (40°C): 4A
• material of contact: CuZn
• contact plating: Ni, Au-galvanized
• material of housing: PA6 GF (UL94)
• by Conec

thread M8x1
• screw termination, max.: 0.5mm2
• cable outlet, max.: 4...5.5mm
• rated voltage 3-pole: 60V
• rated voltage 4-pole: 30V

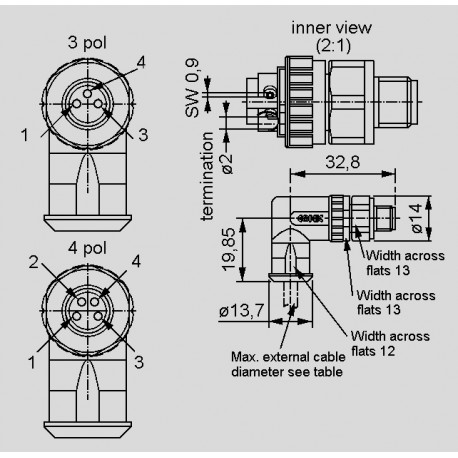

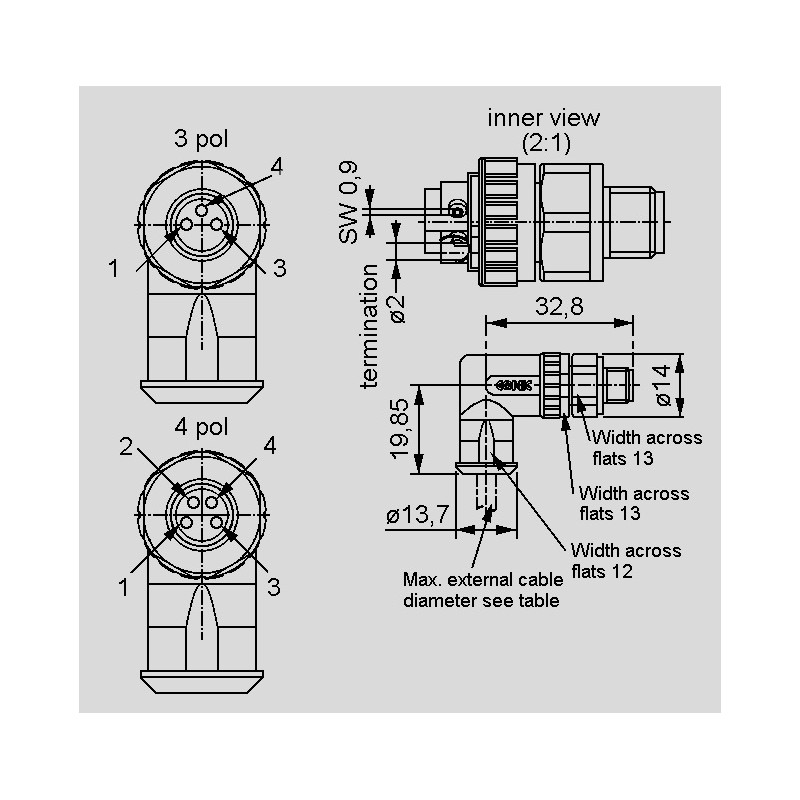

dimensions SAL-8-RSWC_

SAL-8-RSWC4-S

40969 SAL-8-RSWC4-S 42-00027 42-00027 panel connectors with screw locking SAL by Conec. • series: SAL• connector locking system: screw• connection type: screw• degree of protection (in mated condition): IP67• temperature range: -30...+85°C• insulation resistance, max.: >100MΩ• mating cycles: >100• rated current (40°C): 4A• material of contact: CuZn• contact plating: Ni, Au-galvanized• material of housing: PA6 GF (UL94)• by Conecthread M8x1• screw termination, max.: 0.5mm2• cable outlet, max.: 4...5.5mm• rated voltage 3-pole: 60V• rated voltage 4-pole: 30V

Specifications

manufacturer
Manufacturer's name 42-00027
Data Sheet

Unit price

7,39 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 70 units or
multiples of 70.
