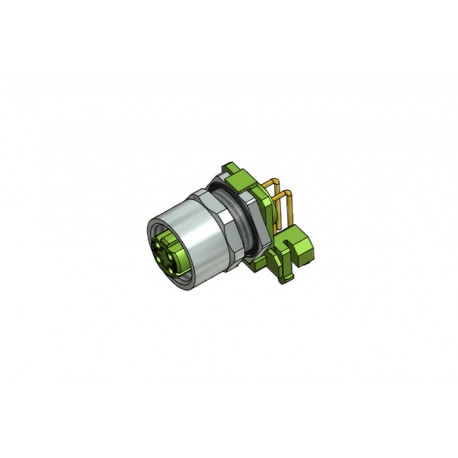

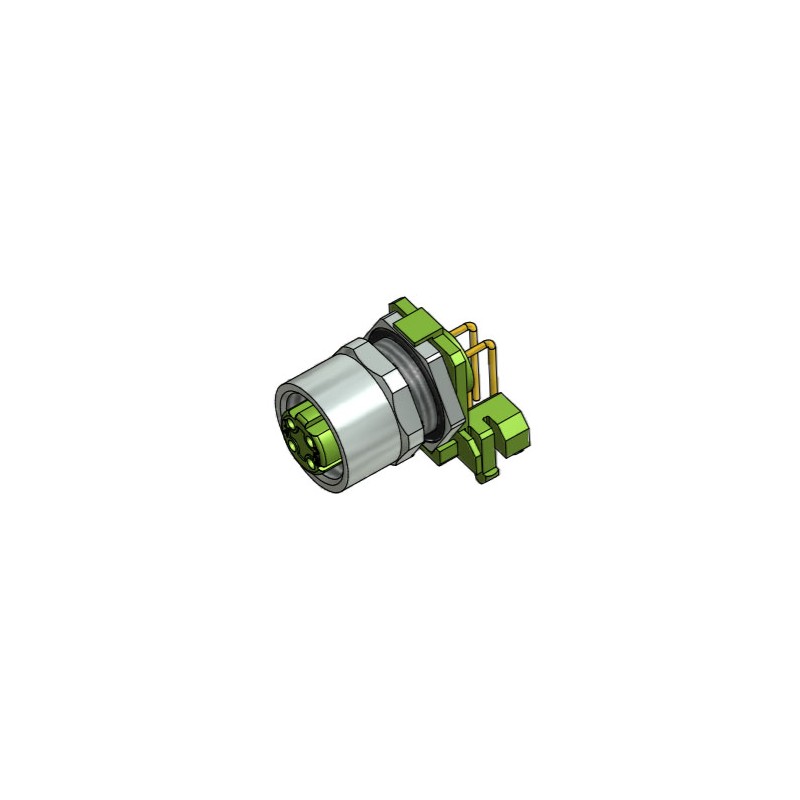

SAL-12D-FKHW4

Conec connector series SAL M12x1

  • panel connectors
  • with flanges, soldering pins and screw locking (M12x1)
  • suitable for back panel mounting
  • IP67 rated
  • gold-plated copper alloy contacts
  • shielded (SAL-12D_) and unshielded (SAL-12_) types
  • axial (SAL-12-FSH_/SAL-12-FKH_/SAL-12D-FKH_) resp. angled (90°) plugs (SAL-12-FSHW_/SAL-12-FKHW_/SAL-12D-FKHW_)
  • rated current: 4A
43-01229, Conec panel connectors, with screw locking, SAL M12x1 series

SAL-12D-FKHW4

240155 SAL-12D-FKHW4 43-01229 43-01229 Conec connector series SAL M12x1. panel connectors with flanges, soldering pins and screw locking (M12x1) suitable for back panel mounting IP67 rated gold-plated copper alloy contacts  shielded (SAL-12D_) and unshielded (SAL-12_) types axial (SAL-12-FSH_/SAL-12-FKH_/SAL-12D-FKH_) resp. angled (90°) plugs (SAL-12-FSHW_/SAL-12-FKHW_/SAL-12D-FKHW_) rated current: 4A

Specifications

manufacturer
Manufacturer's name 43-01229
Design female
Number of poles 4
Data Sheet

Unit price

6,89 €

Stock: 16
Next incoming goods:
CW 50/2024
100 units

Further delivery:
CW 10/2025
