> Passive elements>Connectors>Circular connectors>Conec panel connectors, with screw locking, SAL M12x1 series>SAL-12-FKH4-X10

Manufacturers

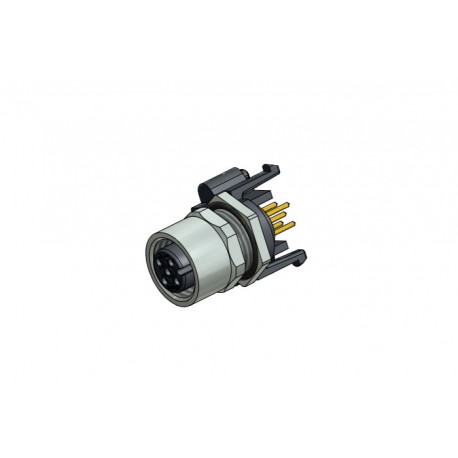

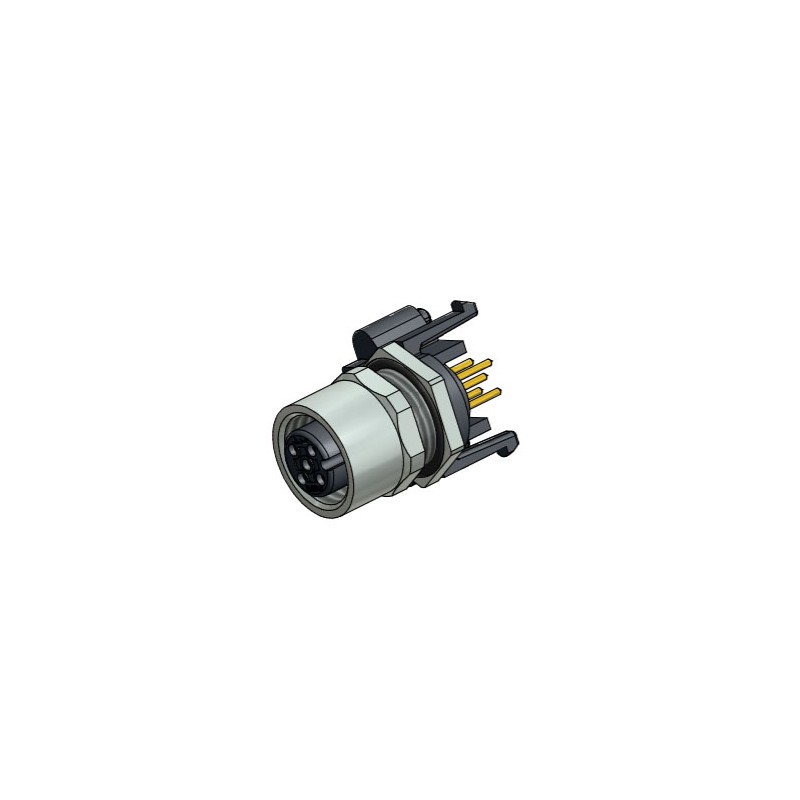

SAL-12-FKH4-X10

Conec connector series SAL M12x1

  • panel connectors
  • with flanges, soldering pins and screw locking (M12x1)
  • suitable for back panel mounting
  • IP67 rated
  • gold-plated copper alloy contacts
  • shielded (SAL-12D_) and unshielded (SAL-12_) types
  • axial (SAL-12-FSH_/SAL-12-FKH_/SAL-12D-FKH_) resp. angled (90°) plugs (SAL-12-FSHW_/SAL-12-FKHW_/SAL-12D-FKHW_)
  • rated current: 4A
43-01170, Conec panel connectors, with screw locking, SAL M12x1 series

SAL-12-FKH4-X10

240146 SAL-12-FKH4-X10 43-01170 43-01170 Conec connector series SAL M12x1. panel connectors with flanges, soldering pins and screw locking (M12x1) suitable for back panel mounting IP67 rated gold-plated copper alloy contacts  shielded (SAL-12D_) and unshielded (SAL-12_) types axial (SAL-12-FSH_/SAL-12-FKH_/SAL-12D-FKH_) resp. angled (90°) plugs (SAL-12-FSHW_/SAL-12-FKHW_/SAL-12D-FKHW_) rated current: 4A

Specifications

manufacturer
Manufacturer's name 43-01170
Design female
Number of poles 4
Data Sheet

Unit price

4,69 €

Stock: 99
Further delivery:
CW 34/2025
