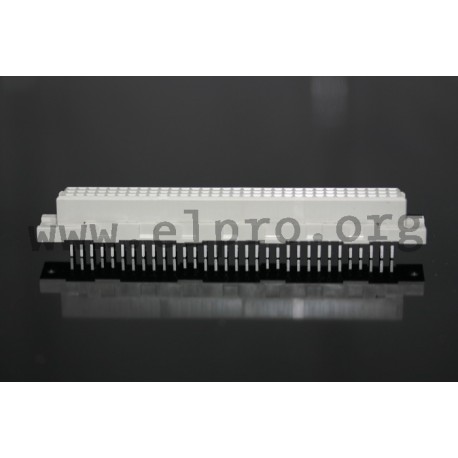

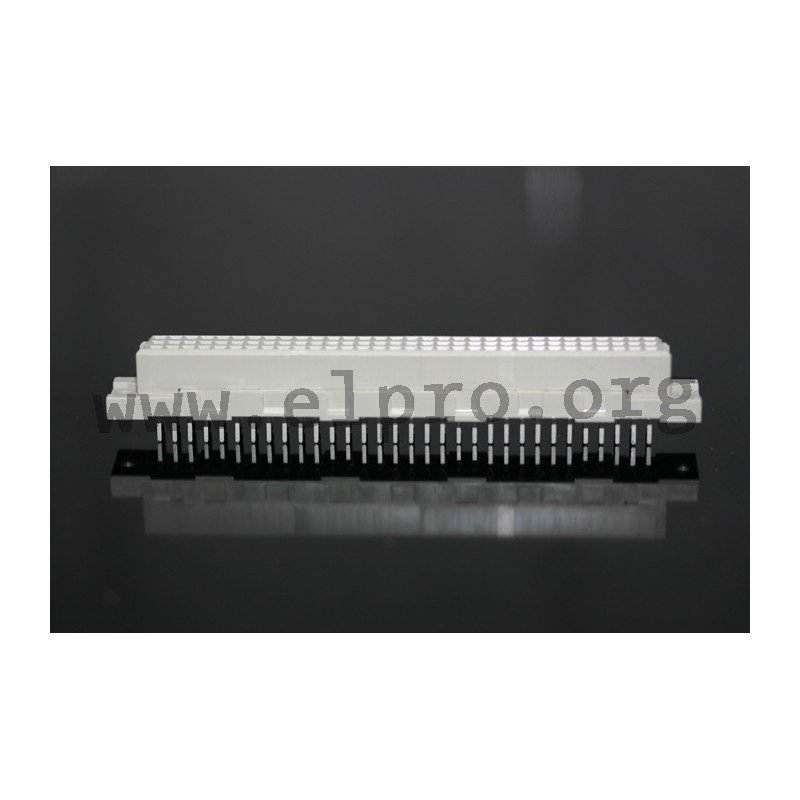

FL 64 P

female connectors, straight, FL_P by Conec

• DIN 41612
• type C
• pitch: 2.54mm
• series: FL_P
• by Conec
• with straight solder pins
• insulation body: glass filled polyamide (PBT), (UL94V-0)
• contact material: copper alloy
• contact surface: hard gold
• mating and withdraw force
64-pole: <60N


• air and creepage: >1.2mm
• operating voltage: 250V AC
• test voltage Ueff (contact/contact): 1kV
• operating currentat at ambient temperature
+20°C: 2A
+70°C: 1A
+100°C: 0.5A
• contact resistance: <20mΩ
• insulation resistance: >1011Ω
• temperature range: -55...+125°C
• class: 3 = 50 cycles

FL 64 P

FL 64 P

13631 FL 64 P 122A11489X 122A11489X female connectors, straight, FL_P by Conec. • DIN 41612• type C• pitch: 2.54mm• series: FL_P• by Conec• with straight solder pins• insulation body: glass filled polyamide (PBT), (UL94V-0)• contact material: copper alloy• contact surface: hard gold• mating and withdraw force64-pole: &lt;60N • air and creepage: &gt;1.2mm• operating voltage: 250V AC• test voltage Ueff (contact/contact): 1kV• operating currentat at ambient temperature+20°C: 2A+70°C: 1A+100°C: 0.5A• contact resistance: &lt;20mΩ• insulation resistance: &gt;1011Ω• temperature range: -55...+125°C• class: 3 = 50 cycles

Specifications

manufacturer
Manufacturer's name 122A11489X
Number of poles 64
Equipping a + c
Pitch [mm] 2,54
Data Sheet

Unit price

2,49 €

Stock: 346
Further delivery:
CW 07/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
